General
This fastening set consists of one fully threaded bolt, one washer, and one custom insert. All components were manufactured and assembled according to the customer’s drawing and application requirements.
Project Overview
This project involved the production of custom stainless steel bolts for an industrial customer in Panama.
The fastener assembly includes one bolt, one washer and one insert, manufactured according to the customer’s design and assembly requirements.
Material – AISI 316 Stainless Steel
The bolts were produced using AISI 316 stainless steel, a material known for excellent corrosion resistance and durability in harsh environments such as marine and chemical applications.
Manufacturing Process
The manufacturing process included:
- metal stamping for initial shaping
- precision machining for accurate dimensions
- assembly of bolt, washer and insert
- dimensional inspection and quality control
This process ensures reliable fastening performance and stable mechanical properties for industrial equipment.
For stainless steel bolts, inserts, washers, pins, and other fastening components requiring stamping, CNC machining, threading, assembly, and dimensional inspection, explore our custom precision metal parts manufacturing capabilities.
Quantity
1,000sets
Drawing
Material
AISI316 stainless steel
AISI 316 stainless steel was selected for its corrosion resistance and durability. The chemical composition and mechanical properties were verified against the specified material requirements before production.
Product Picture
After around 30 days of production (China spring festival 20 days is extra), we finished production.
Insert
The insert is customized by drawing.
Process: Machining
Washer and Bolt
Actually, the bolt and washer set is standard.
Quality Inspection
Material Certificate
Insert
Washer
M16 Hex Bolt
Size Certificate

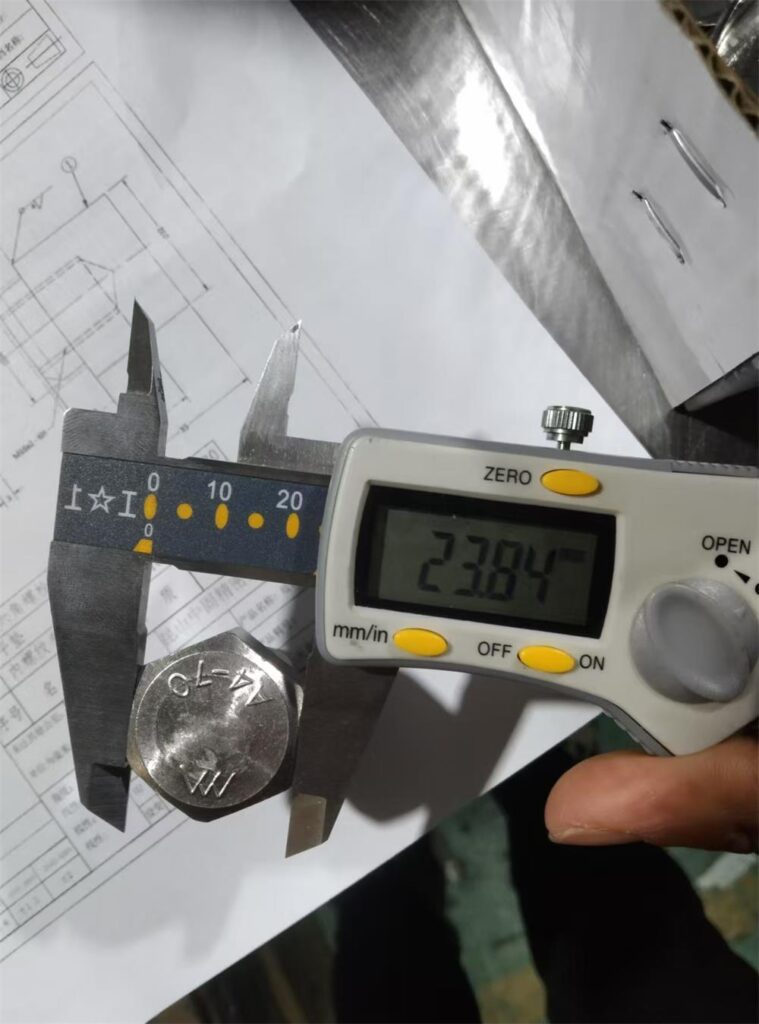

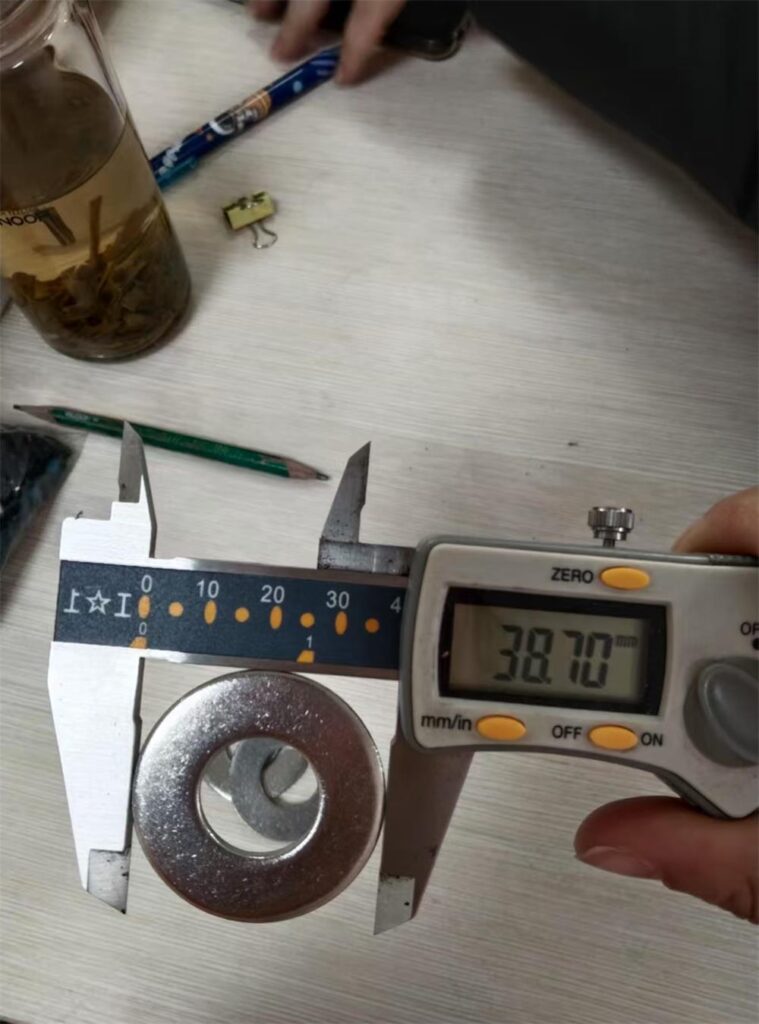

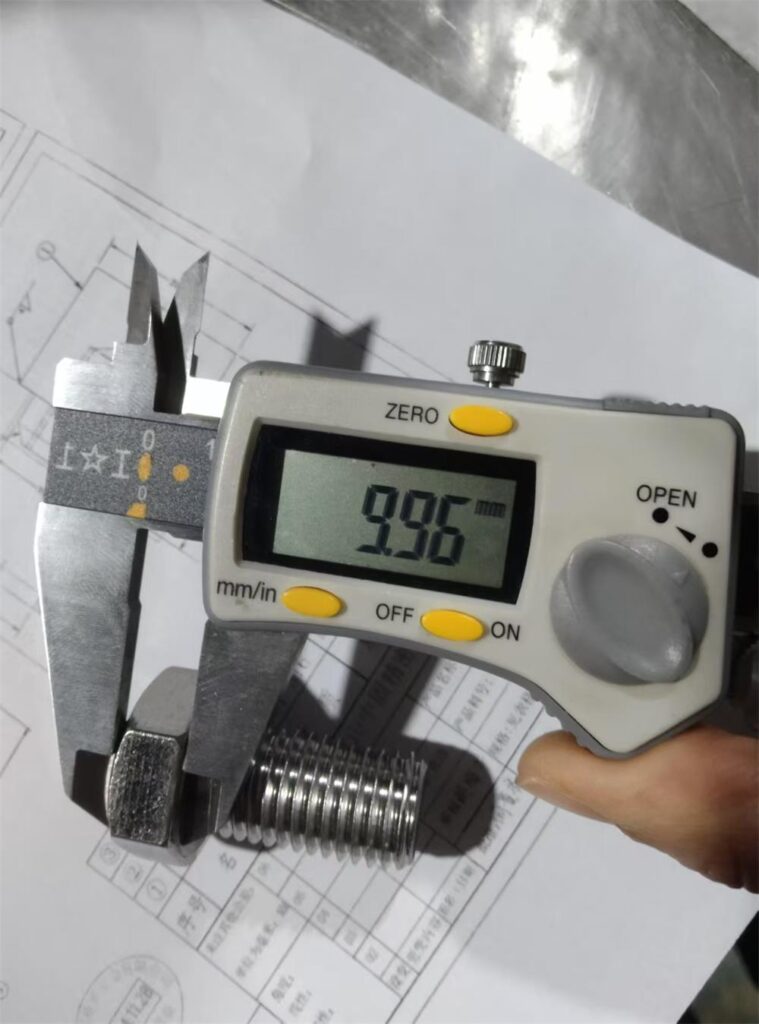

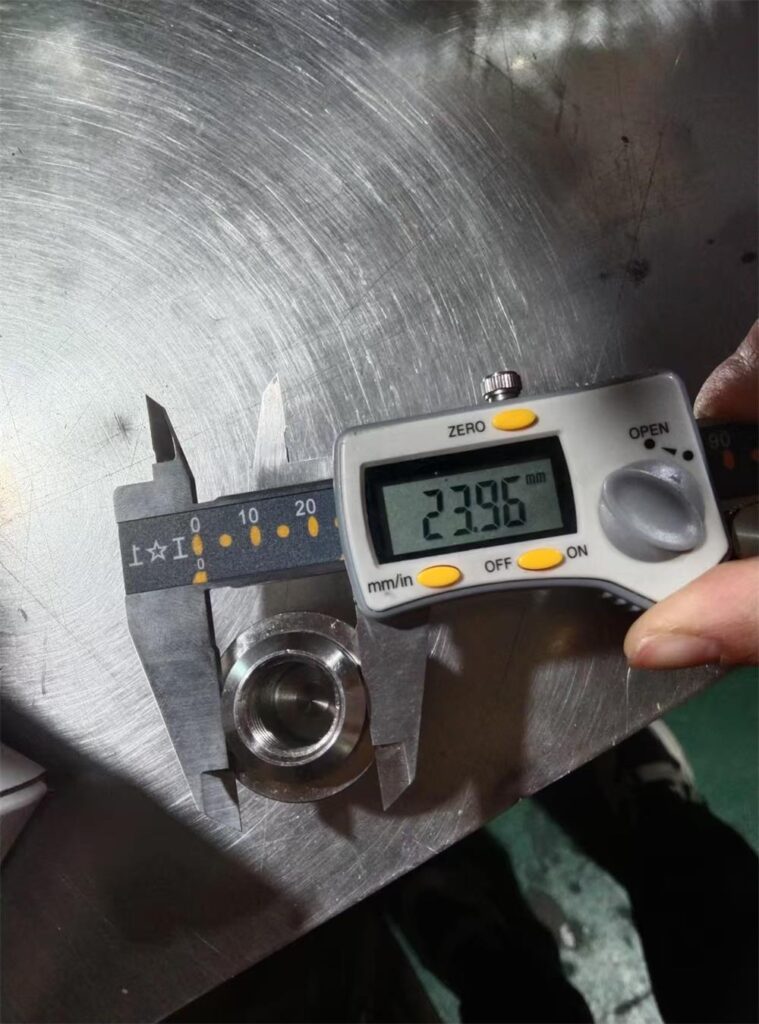

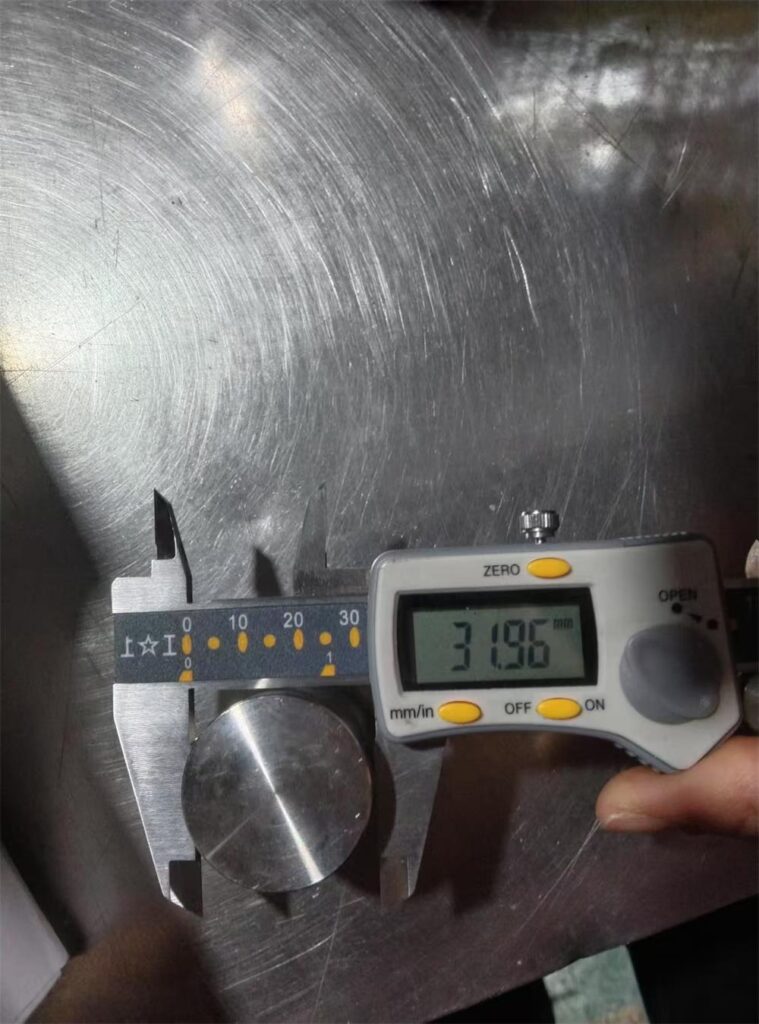

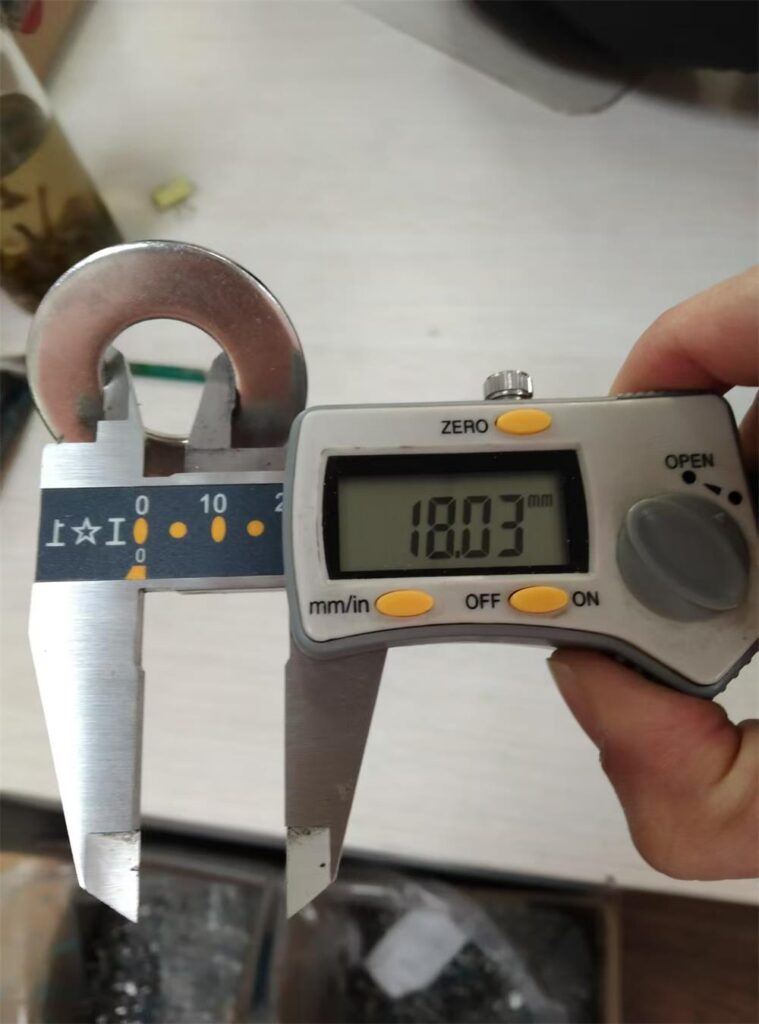

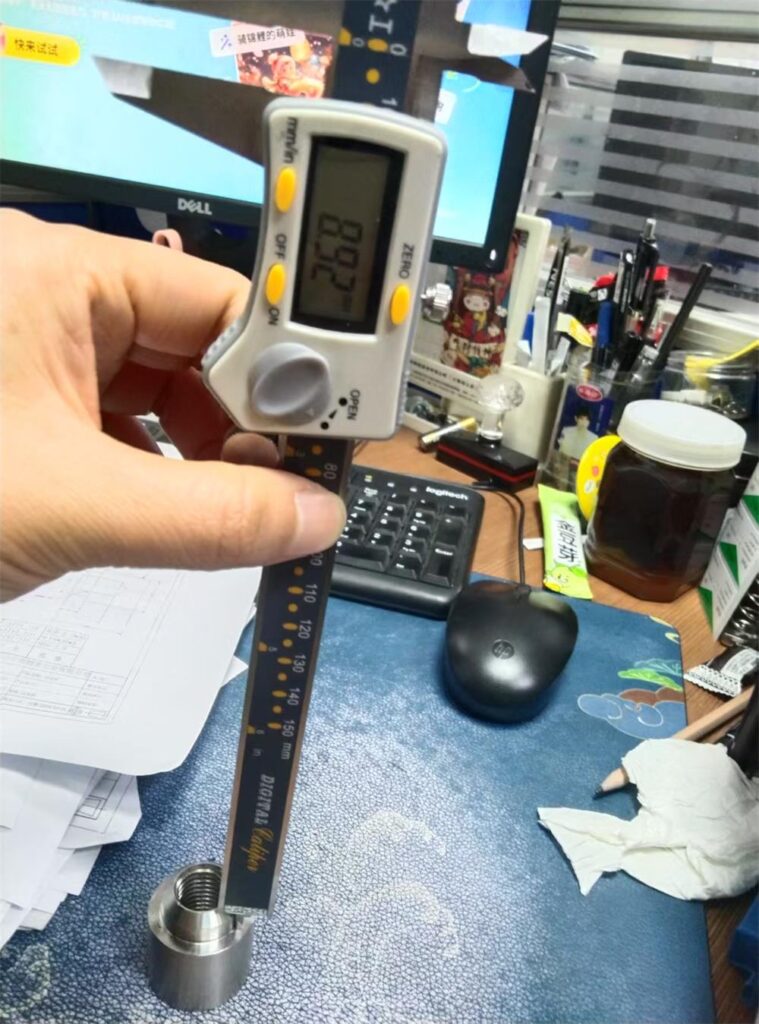

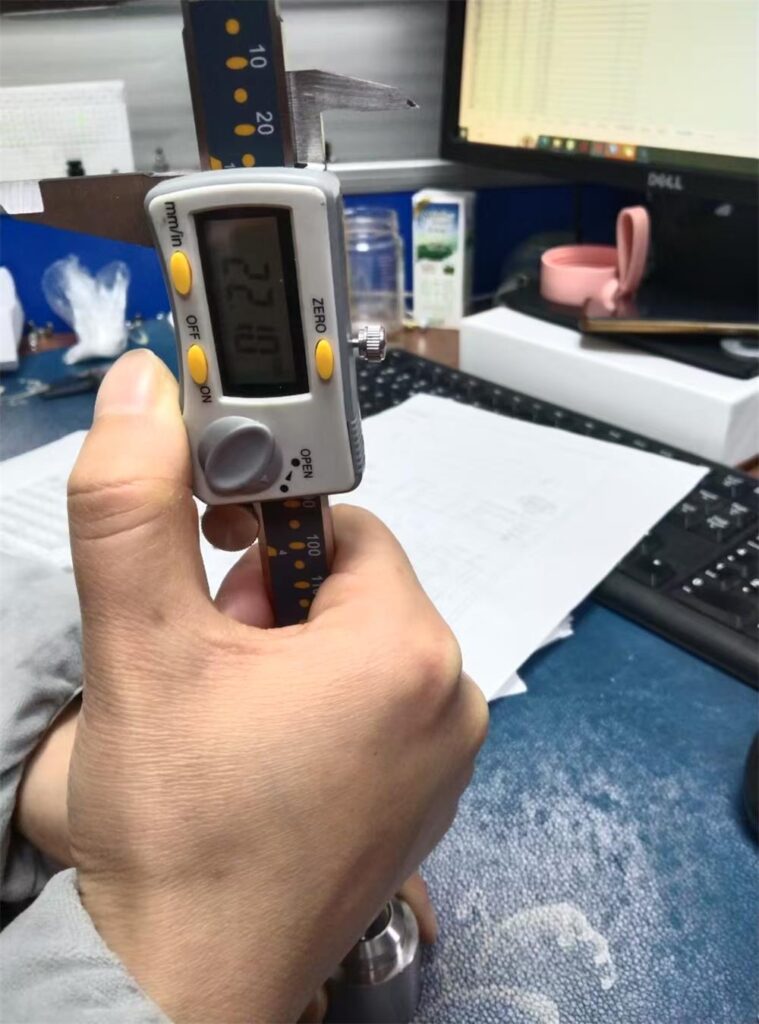

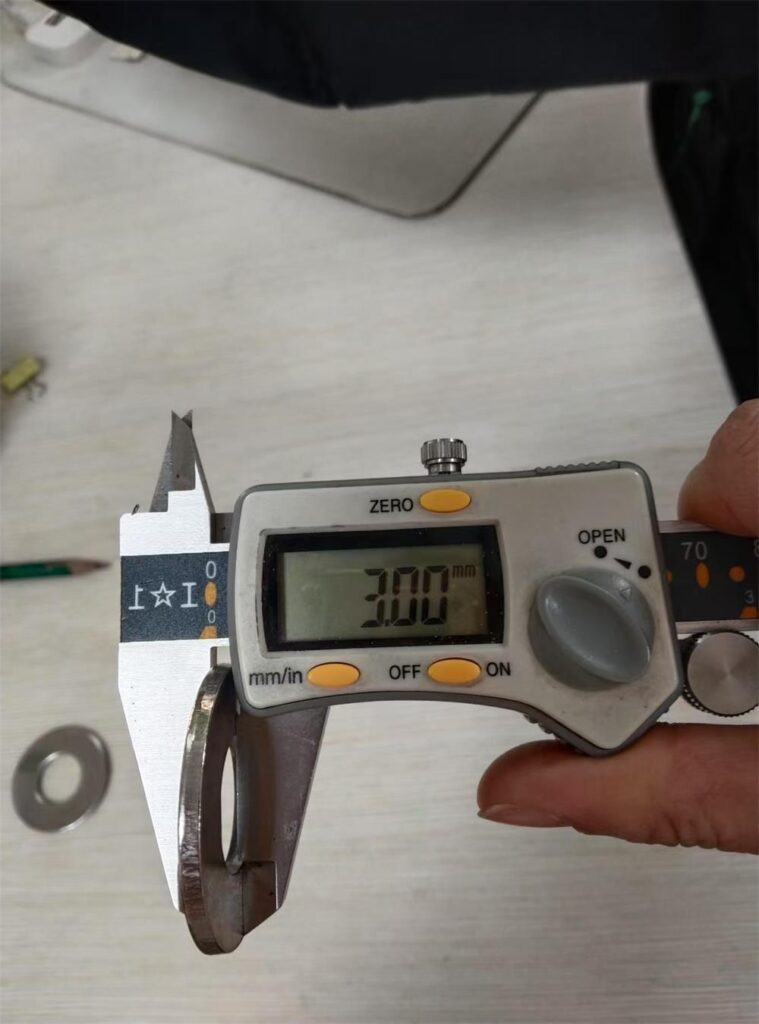

We measured all the sizes in the drawing, took pictures and then sent them to our client for approval before shipment.
Insert
Washer
M16 Hex Bolt
Size Certificate for all three items
Packing
The bolt sets were packed together with another double-thread bolt item on one export pallet. The pallet size was 1.2 × 0.8 × 0.75 m, with a net weight of 256 kg and a gross weight of 268 kg.
