Introduction

Selecting the right corrosion resistant bearing is not just about choosing a material.
It requires balancing environmental conditions, load requirements, and cost.

In this guide, we walk you through a simple step-by-step process to help you choose the most suitable solution for your application.

This step-by-step approach is based on real industrial applications where corrosion resistance and load performance must be balanced.

Step 1: Understand Your Working Environment

The first step is to evaluate the operating environment:

  • Indoor or outdoor
  • Humidity level
  • Exposure to water, soil, or chemicals
  • Temperature conditions

👉 General rule:

  • Dry indoor → basic protection is enough
  • Humid / outdoor → enhanced corrosion protection required
  • Chemical / severe environment → high corrosion resistance needed

Step 2: Define Load and Performance Requirements

Bearings must meet mechanical performance requirements:

  • Static load
  • Dynamic load
  • Wear resistance
  • Service life expectations

👉 Important:

  • Some corrosion-resistant materials (e.g., 304/316)
    may reduce load capacity due to lower hardness

Step 3: Choose the Right Material or Coating

Option A: Zinc Plating (Basic Solution)

  • Low cost
  • Suitable for dry environments
  • Limited corrosion resistance

Option B: Zinc-Nickel Coating (Balanced Solution ⭐)

  • High corrosion resistance
  • Suitable for outdoor and industrial environments
  • Minimal impact on dimensions

👉 Learn more in our comparison guide:
👉 https://ytcasting.com/zinc-vs-zinc-nickel-vs-stainless-steel-bearings/

Option C: Stainless Steel (High Corrosion Resistance)

  • 304 / 316 → excellent corrosion resistance, lower strength
  • 440C → high hardness, suitable for load-bearing components

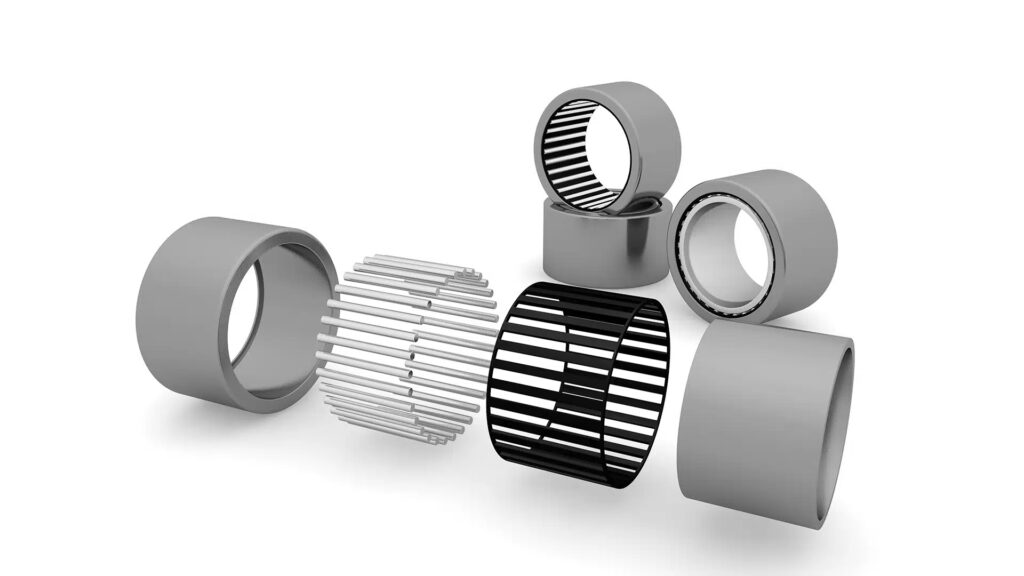

bearing selection process steps environment load material

Step 4: Consider a Hybrid Solution (Best Practice ⭐)

In many real applications, a hybrid solution offers the best performance:

  • Outer ring & cage → zinc-nickel coating
  • Rollers → 440C stainless steel

👉 This approach ensures:

  • Corrosion resistance
  • High load capacity
  • Long service life

This hybrid approach is widely used in real projects to achieve both corrosion resistance and mechanical reliability.

👉 See our real application example:
👉 https://ytcasting.com/corrosion-resistant-needle-bearing/

Step 5: Check Manufacturing and Tolerance Impact

Important factors:

  • Coating thickness (typically 5–10 μm)
  • Fit tolerance
  • Assembly compatibility

👉 Always confirm:

  • Whether coating affects assembly
  • Whether tolerances need adjustment

Step 6: Balance Cost vs Performance

SolutionCostPerformance
Zinc platingLowLow
Zn-Ni coatingMediumHigh
Stainless steelHighVaries

👉 Recommendation:

  • Most industrial cases → Zn-Ni + 440C hybrid solution

Common Mistakes to Avoid

  • Choosing stainless steel without checking load requirements
  • Ignoring coating thickness impact
  • Over-specifying (cost too high)
  • Under-specifying (early failure)

Conclusion

Choosing the right corrosion resistant bearing is a balance between:

  • Environment
  • Performance
  • Cost

By following a structured approach, you can select a solution that ensures long-term reliability and efficiency.

Not sure which bearing solution is right for your application?
Send us your drawing or requirements — we’ll recommend the best option.

We can also provide sample evaluation based on your application if needed.
