Introduction
Choosing the right corrosion protection for bearings is critical in many industrial applications.
Common options include zinc plating, zinc-nickel coating, and stainless steel materials.
Each solution has different advantages in terms of corrosion resistance, cost, and mechanical performance.
In this guide, we compare these three options to help you select the most suitable solution for your application.
Why Corrosion Protection Matters
Bearings used in humid, outdoor, or chemically exposed environments may suffer from:
- Rust and surface degradation
- Increased friction and wear
- Reduced service life
Selecting the right corrosion protection method can significantly extend product lifespan and reduce maintenance cost.
Comparison Overview
| Feature | Zinc Plating | Zinc-Nickel Coating (Zn-Ni) | Stainless Steel (304/316/440C) |
|---|---|---|---|
| Corrosion Resistance | Low | High | High |
| Typical Salt Spray | 24–72 hrs | 500–1000+ hrs | Depends on grade |
| Cost | Low | Medium | High |
| Mechanical Strength | No change | No change | Varies |
| Wear Resistance | Same as base steel | Same as base steel | Lower (304/316) / High (440C) |
| Suitable for Rollers | ❌ Not recommended | ❌ Not recommended | ✅ (440C only) |
| Suitable for Outer Ring | ✅ | ✅ (recommended) | ✅ |
| Application Environment | Indoor / dry | Outdoor / humid | Severe corrosion |
1. Zinc Plating (Basic Protection)
Zinc plating is the most common and cost-effective corrosion protection method.
Advantages:
- Low cost
- Widely available
- Provides basic sacrificial protection
Limitations:
- Limited corrosion resistance
- Not suitable for outdoor or harsh environments
👉 Best for:
- Indoor applications
- Low humidity environments
2. Zinc-Nickel Coating (Recommended Solution ⭐)
Zinc-nickel coating is an upgraded version of zinc plating with significantly improved corrosion resistance.
Advantages:
- Excellent corrosion resistance (up to 600–1000+ hours salt spray)
- Stable coating structure
- Good performance in humid and outdoor environments
- Minimal impact on dimensions (typically 5–10 μm thickness)
Limitations:
- Higher cost than zinc plating
👉 Best for:
- Outdoor equipment
- Agricultural and grain systems
- Oil & gas / pipeline applications
- General industrial corrosion environments
3. Stainless Steel Bearings
Stainless steel provides inherent corrosion resistance without coating.
304 / 316 Stainless Steel
Advantages:
- Excellent corrosion resistance
- Suitable for wet or chemical environments
Limitations:
- Lower hardness
- Reduced load capacity
👉 Best for:
- Light-duty applications
- High corrosion environments

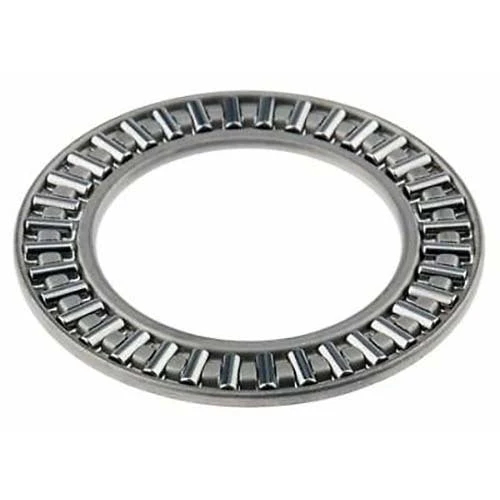

440C Stainless Steel (For Rollers)
440C is a high-carbon stainless steel that can be heat-treated.
Advantages:
- High hardness (HRC60+)
- Good wear resistance
- Better corrosion resistance than standard bearing steel
👉 Best for:
- Needle rollers
- Load-bearing components
Recommended Solution for Most Applications
In many industrial applications, the best approach is a hybrid solution:
- Outer ring & cage: Zinc-nickel coating
- Rollers: 440C stainless steel
This combination provides:
- Strong corrosion resistance
- High load capacity
- Long service life
👉 This solution is widely used in real industrial projects.

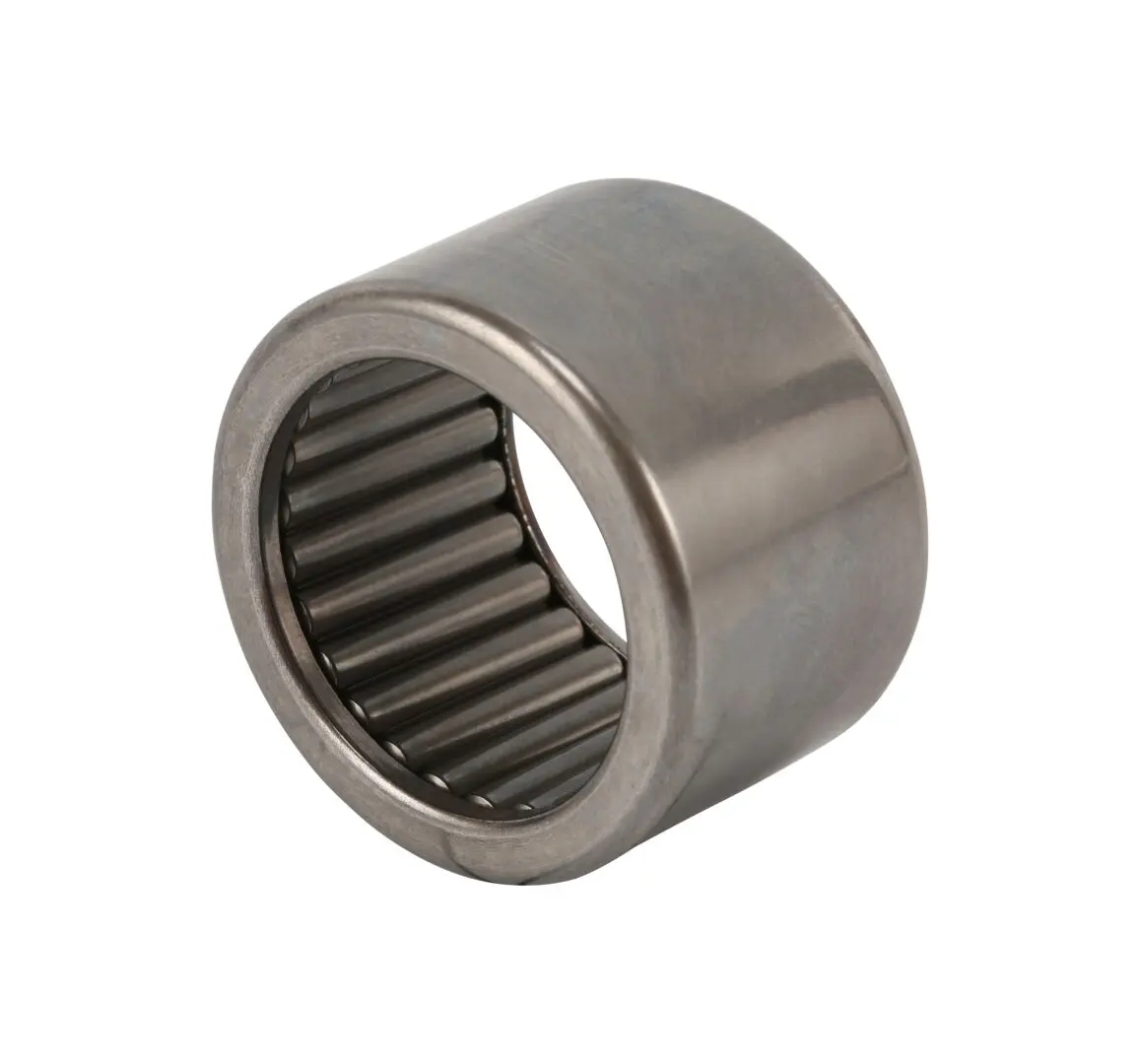

For a real application example of corrosion-resistant needle bearings, you can also refer to our project-based solution here:
👉 https://ytcasting.com/corrosion-resistant-needle-bearing/
When to Choose Each Option
- Choose zinc plating → if cost is the main concern and environment is dry
- Choose zinc-nickel coating → if you need balanced performance and corrosion resistance
- Choose stainless steel → if corrosion is critical and load is lower
- Choose hybrid solution → for best overall performance ⭐
Conclusion
There is no single “best” solution for all applications.
The right choice depends on your operating environment, load requirements, and budget.
For most industrial applications, zinc-nickel coating combined with 440C rollers offers the best balance between cost, corrosion resistance, and performance.
If you need a structured approach to selecting the right solution based on your environment and load conditions, you can also check our detailed guide here:
👉 https://ytcasting.com/how-to-choose-corrosion-resistant-bearings/
