General
This project involved custom double-threaded fasteners manufactured for an industrial customer in Panama. The parts were produced entirely according to the customer’s drawing, including the overall length, rod diameter, thread diameter, and thread length at both ends.
Project Overview
This project involved the production of custom double threaded fasteners for an industrial customer in Panama.
The fasteners were manufactured according to the customer’s technical drawings and specifications.
Material – ASTM A193 Grade B7
The fasteners were produced using ASTM A193 Grade B7 alloy steel, a material widely used for high-strength bolting applications in industrial equipment, valves, and pipeline systems.
Manufacturing Process
The production process included:
- precision bolt threading
- dimensional inspection
- black surface treatment for corrosion protection
This manufacturing method ensures stable mechanical strength and reliable fastening performance in demanding industrial environments.
For custom stud bolts, threaded rods, pins, shafts, and other alloy steel components requiring precision threading, heat treatment, surface finishing, and dimensional inspection, explore our custom precision metal parts manufacturing capabilities.
Quantity
2,000pcs
Drawing
Material
ASTM A193, Grade B7

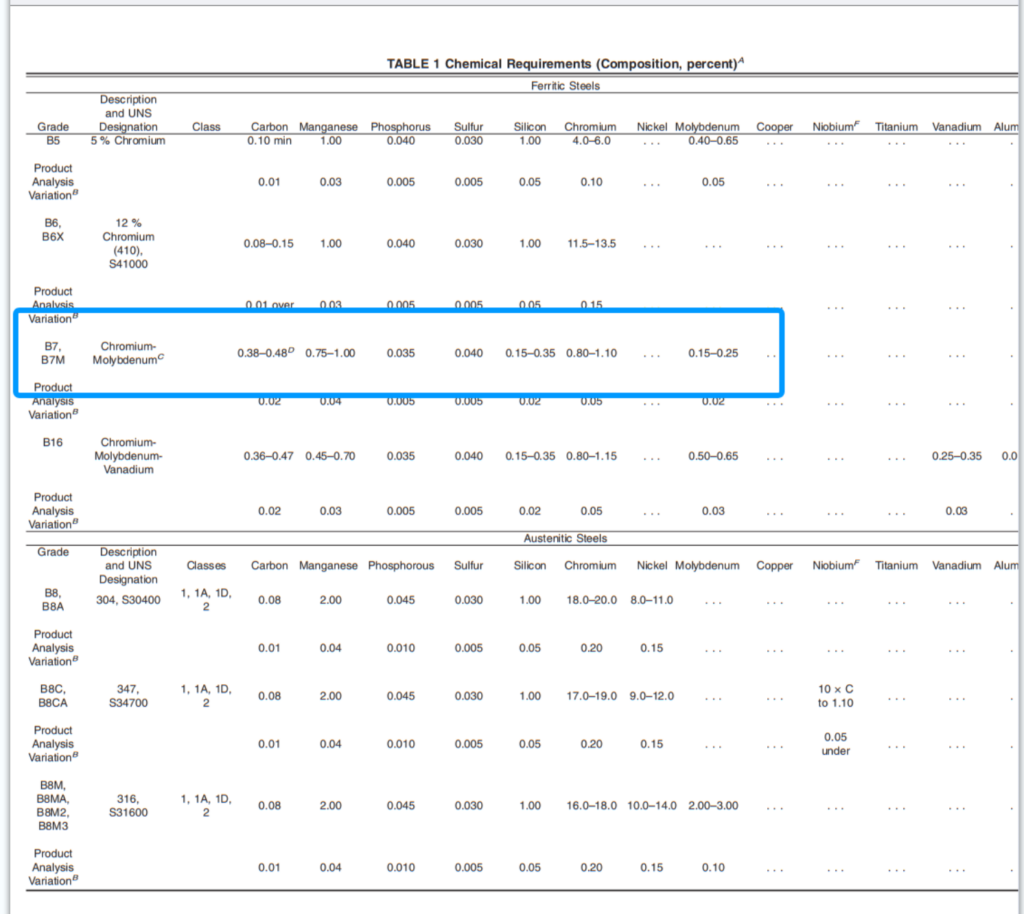

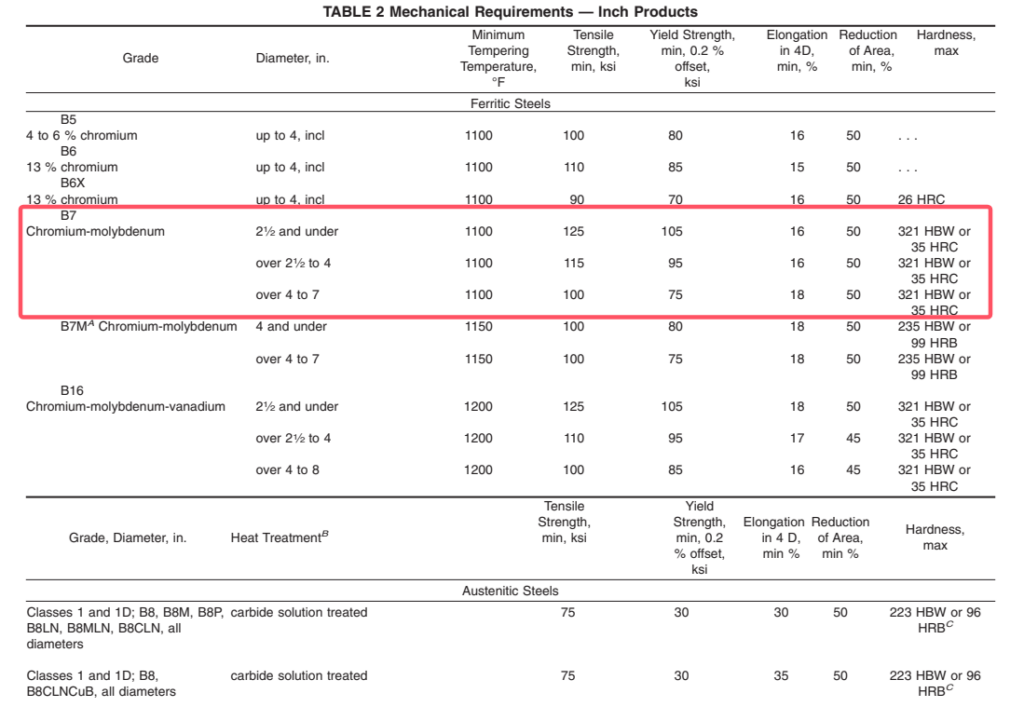

ASTM A193 Grade B7 is a high-strength alloy steel bolting specification. The raw material’s chemical composition and mechanical properties were verified against the applicable standard requirements before production.
We carefully checked the standard and picked out the material composition and mechanical property requirements here.
Production was completed in approximately 30 days, excluding the additional lead time caused by the Chinese New Year holiday.
Product Picture
Quality Inspection
Material Certificate

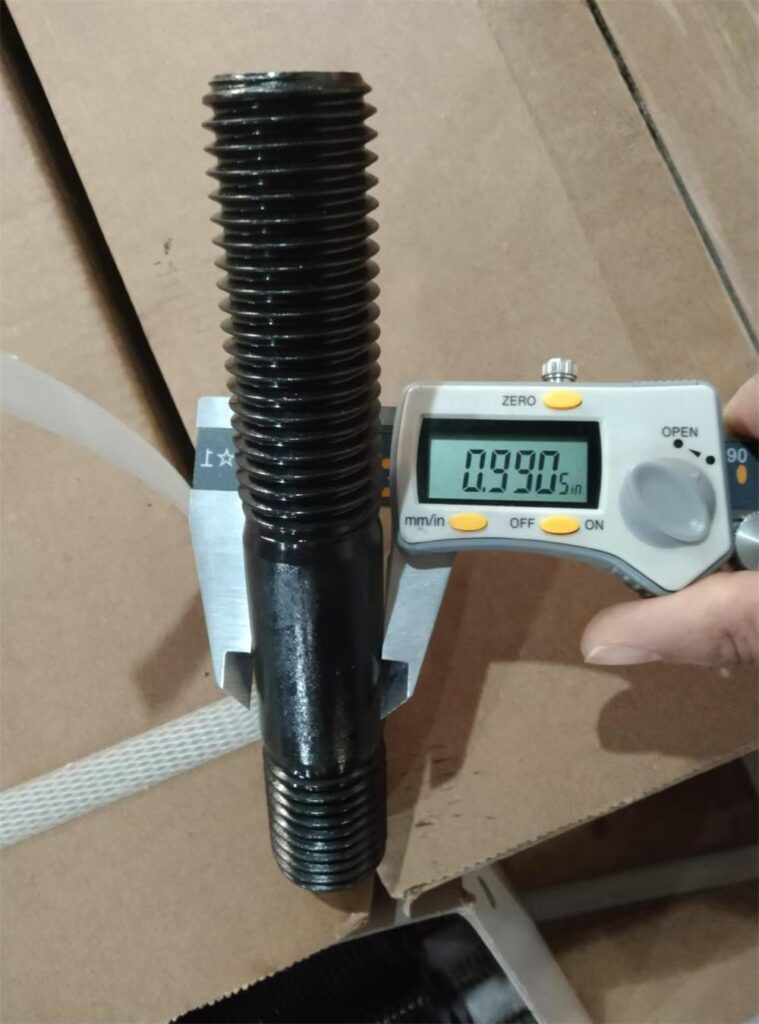

Size Inspection
We measured all the sizes in the drawing, took pictures and then sent them to our client for approval before shipment.
Packing
The finished fasteners were packed together with another order item on one export pallet. The pallet size was 1.2 × 0.8 × 0.75 m, with a net weight of 1,056 kg and a gross weight of 1,086 kg.
