General
This project involved two custom C86100 copper-alloy guide components, with quantities of 12 pieces and 20 pieces respectively.
Both items were manufactured according to the customer’s drawings and dimensional requirements.
As the customer could not inspect the parts on site, we prepared material certificates and complete dimensional reports with inspection photos before shipment.
The hardness should be submitted before production. We submit the data HB175-230 and then begin the production.
Project Overview
This project involved the production of custom brass guide components for an industrial customer in Central America
The parts were manufactured according to customer drawings using copper alloy C86100 through casting and precision machining processes.
Material – Copper Alloy C86100
C86100 copper alloy offers good strength, wear resistance, and corrosion resistance, making it suitable for mechanical guide parts and sliding components used in industrial equipment.
For cylindrical bronze bushings, sleeves, rings, and other wear-resistant copper-alloy components produced through centrifugal casting and final machining, explore our centrifugal cast bronze bushings manufacturing capabilities.
Manufacturing Process
The production process included:
- casting of copper alloy material
- CNC machining to achieve precise dimensions
- dimensional inspection and quality control
For custom copper-alloy guides and other components requiring casting, CNC machining, hardness control, dimensional inspection, and documented quality reports, explore our custom precision metal parts manufacturing capabilities.
Brass and copper alloys are widely used for precision mechanical parts due to their excellent machinability and durability in industrial applications.
Item-1
Quantity
12pcs

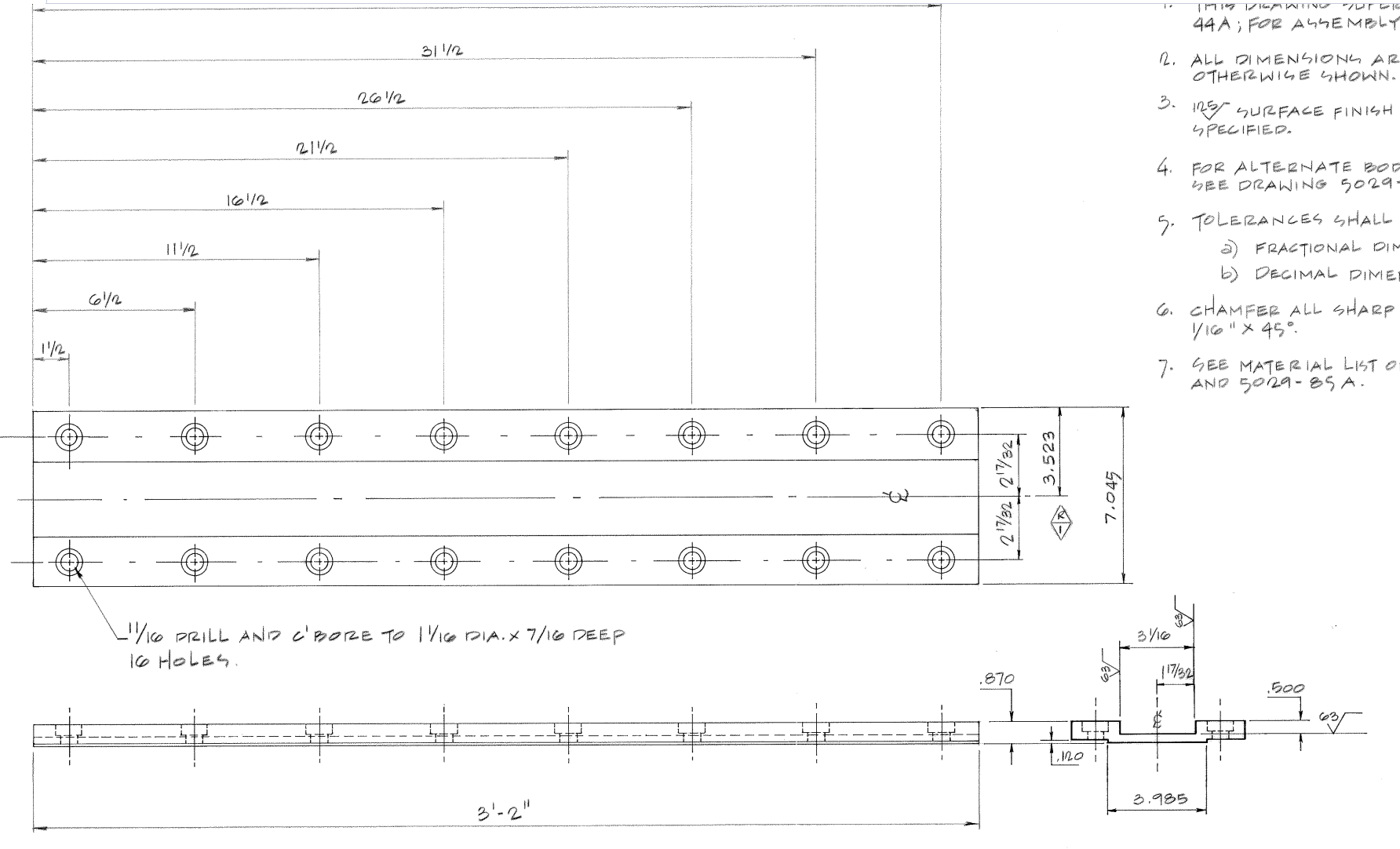

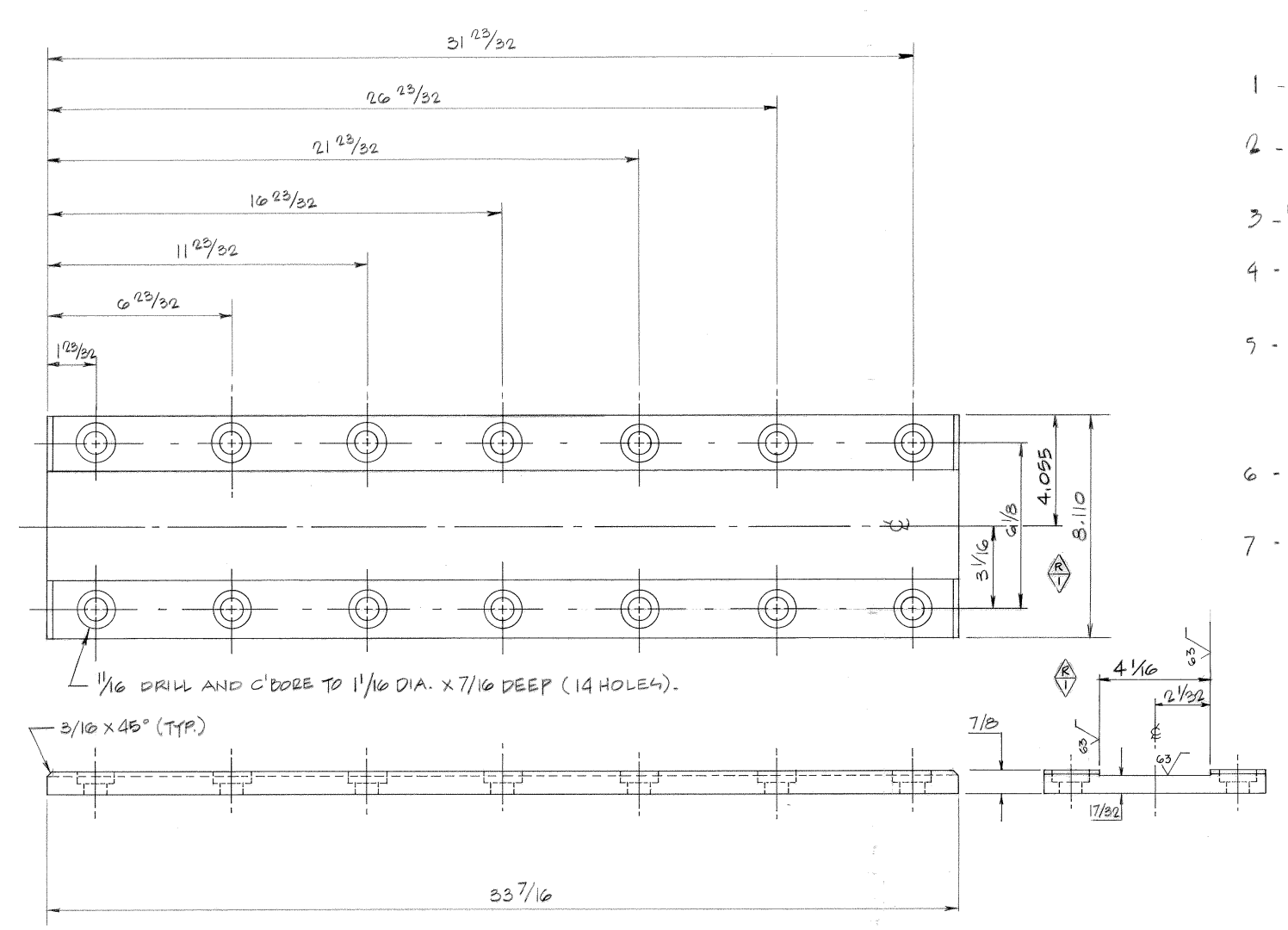

Drawing

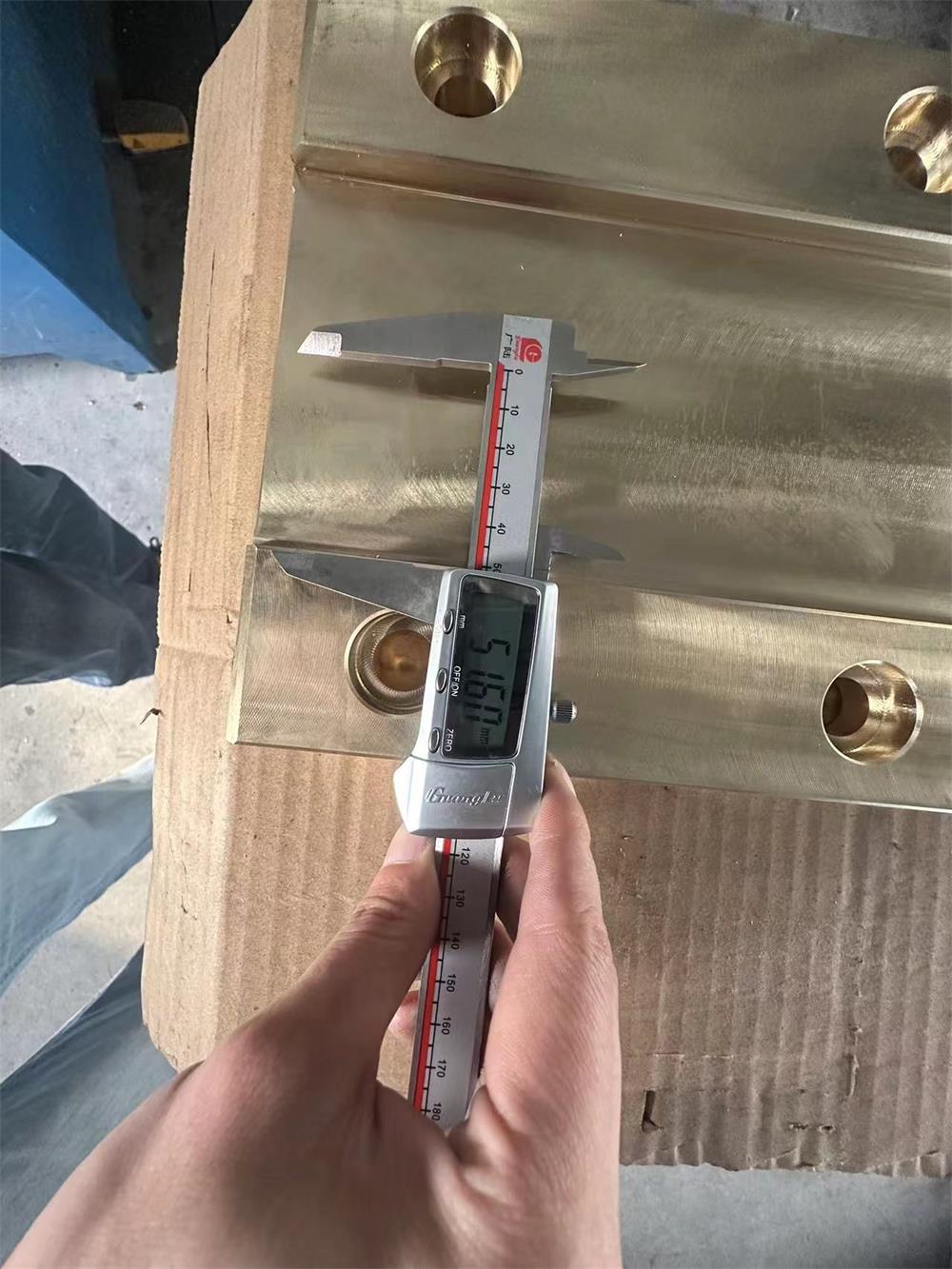

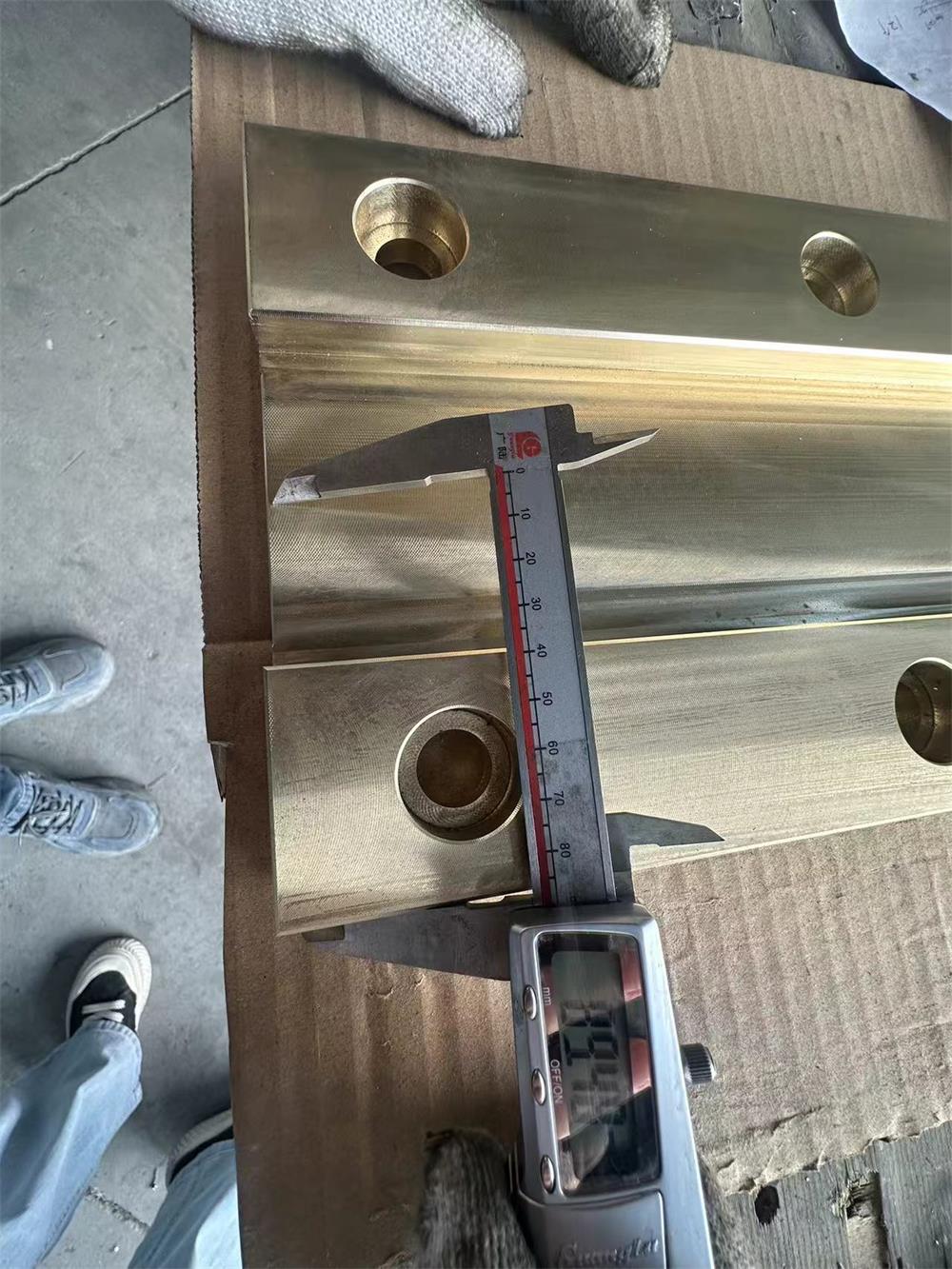

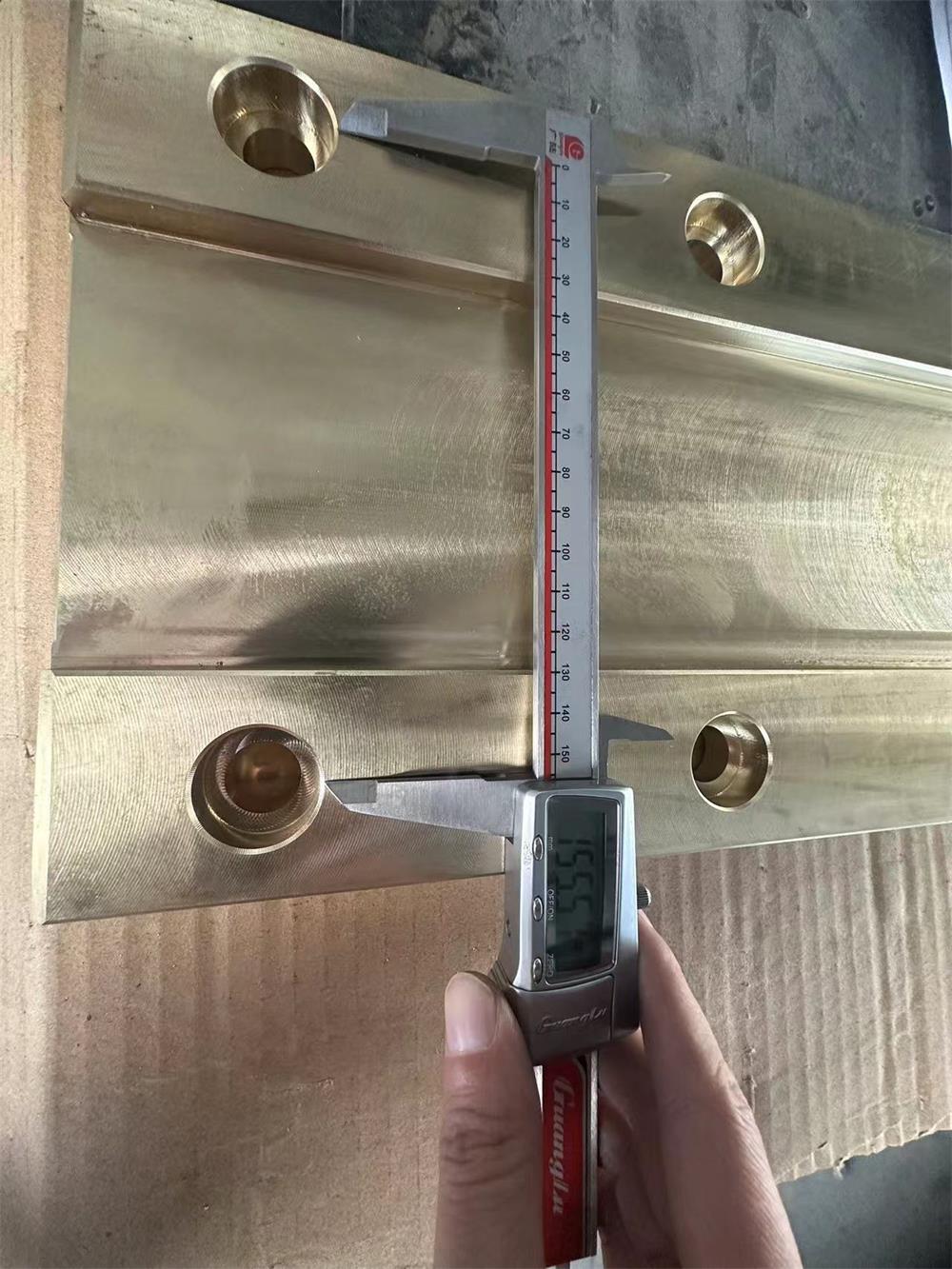

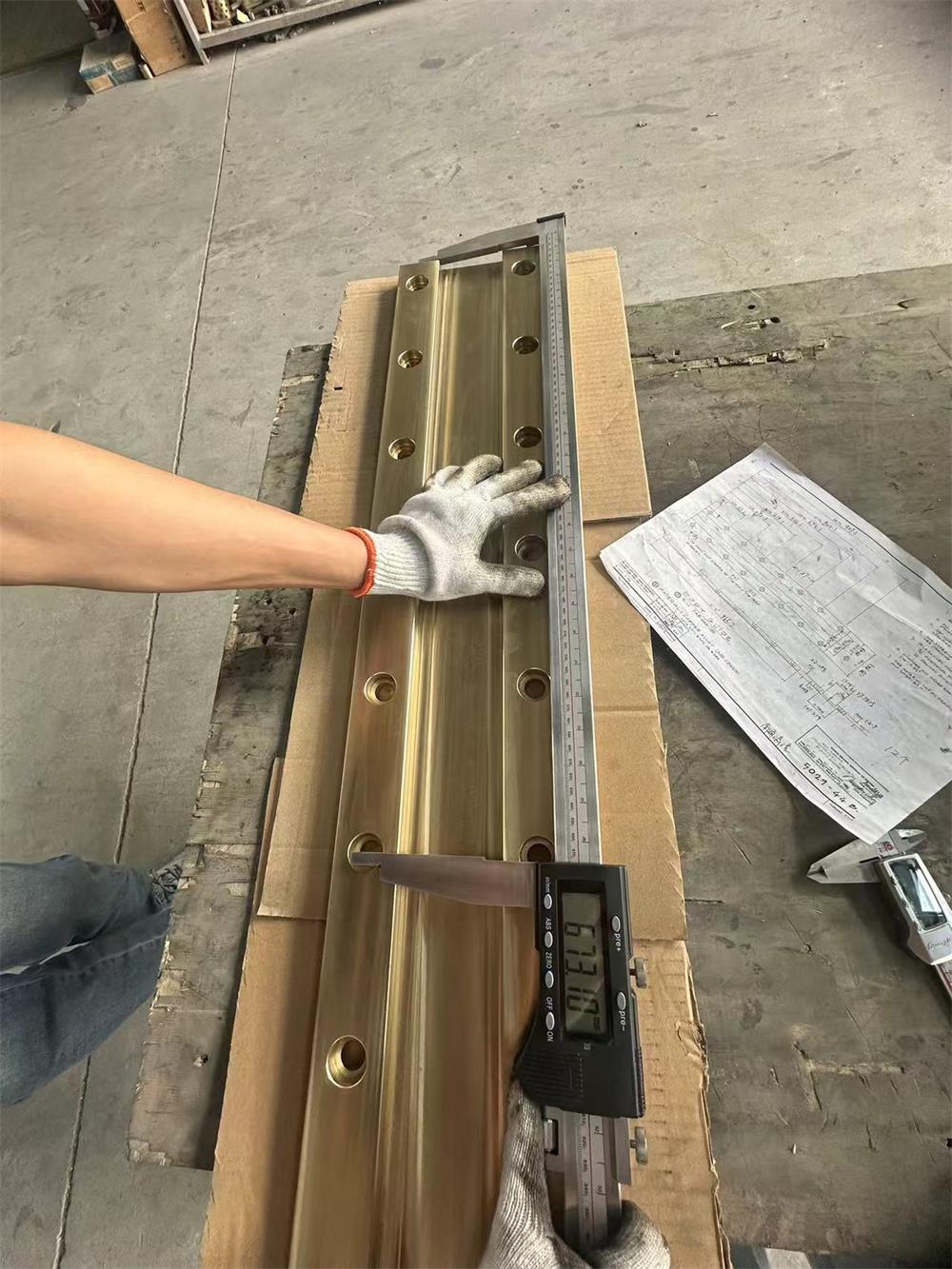

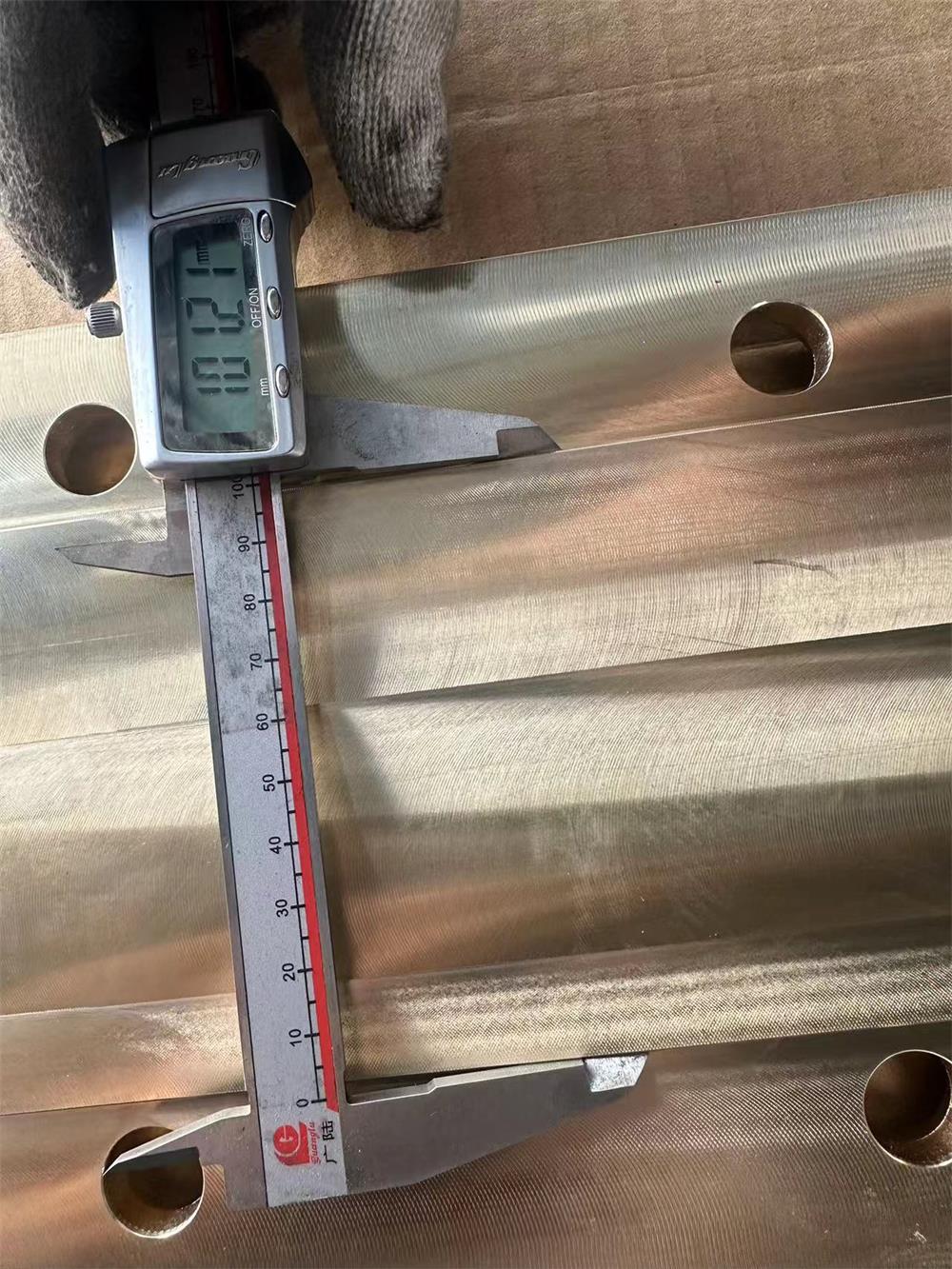

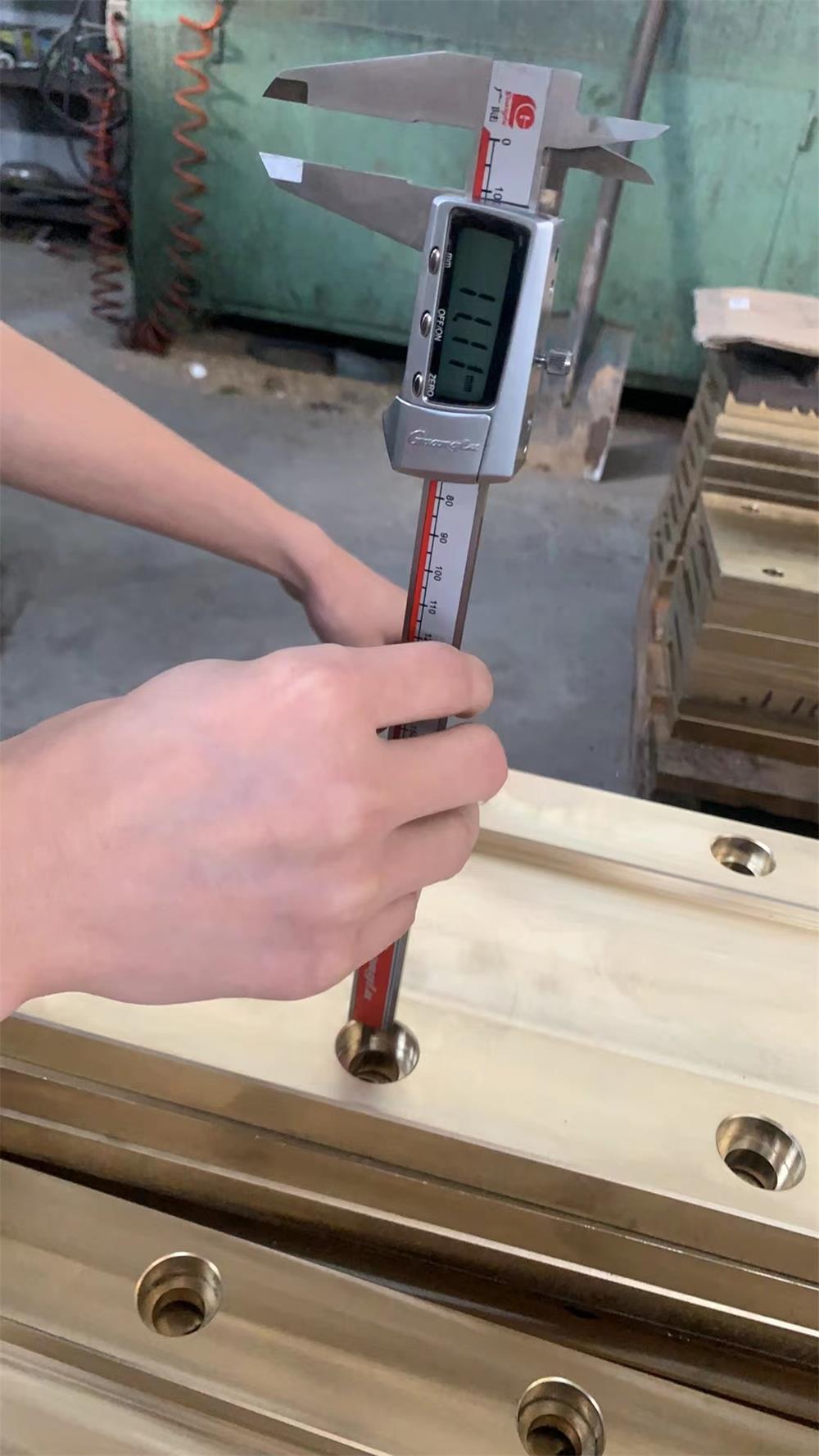

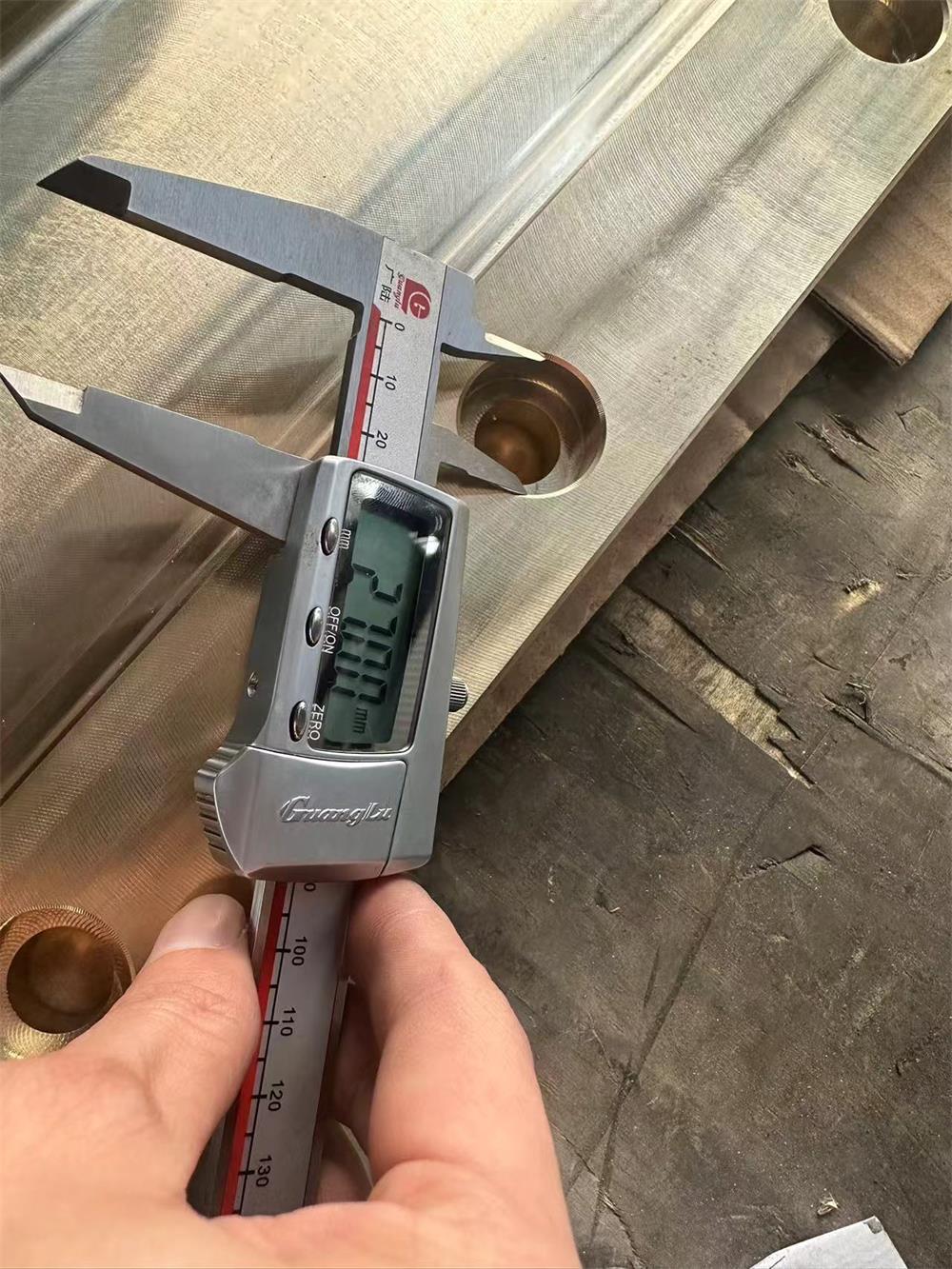

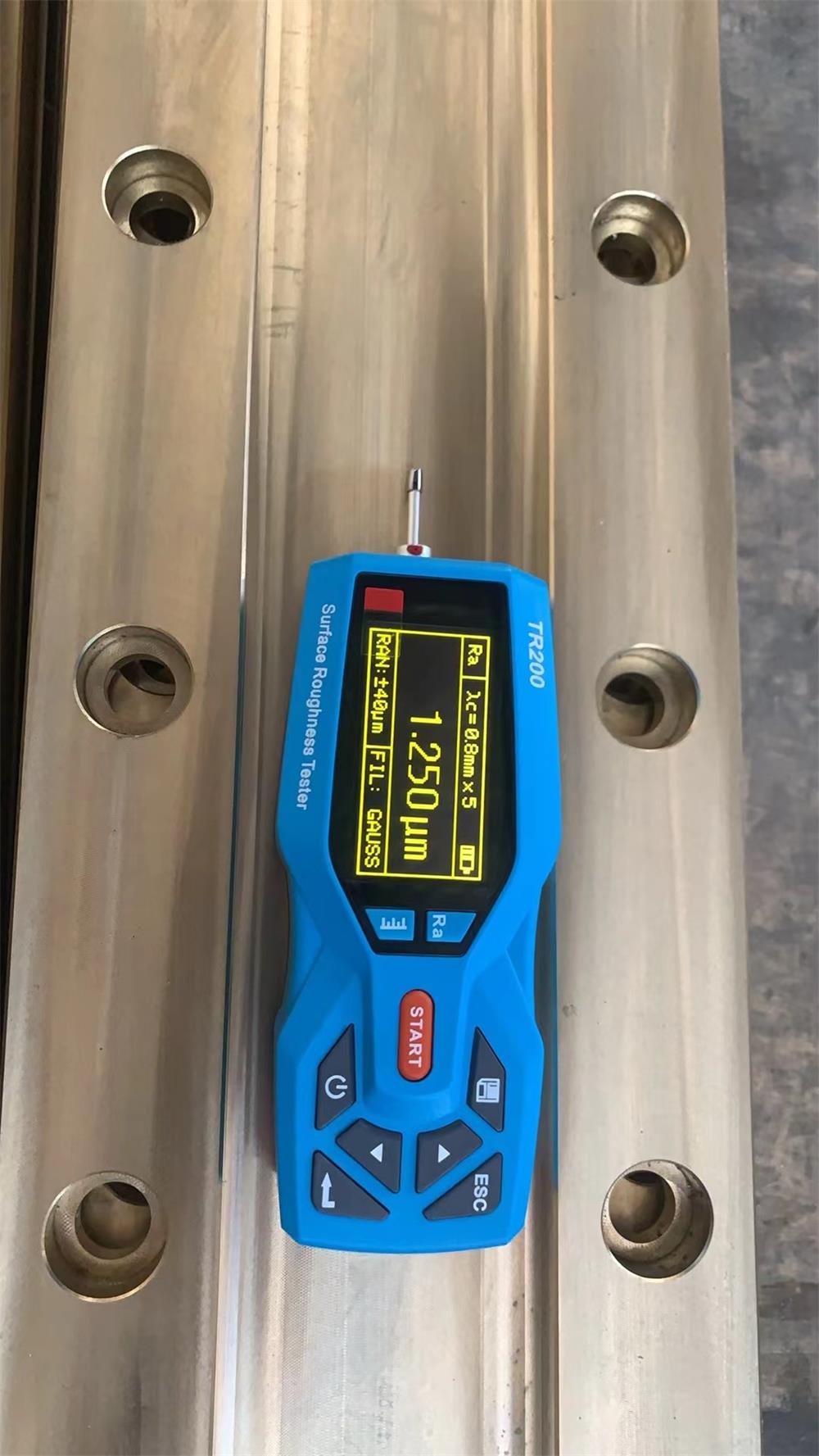

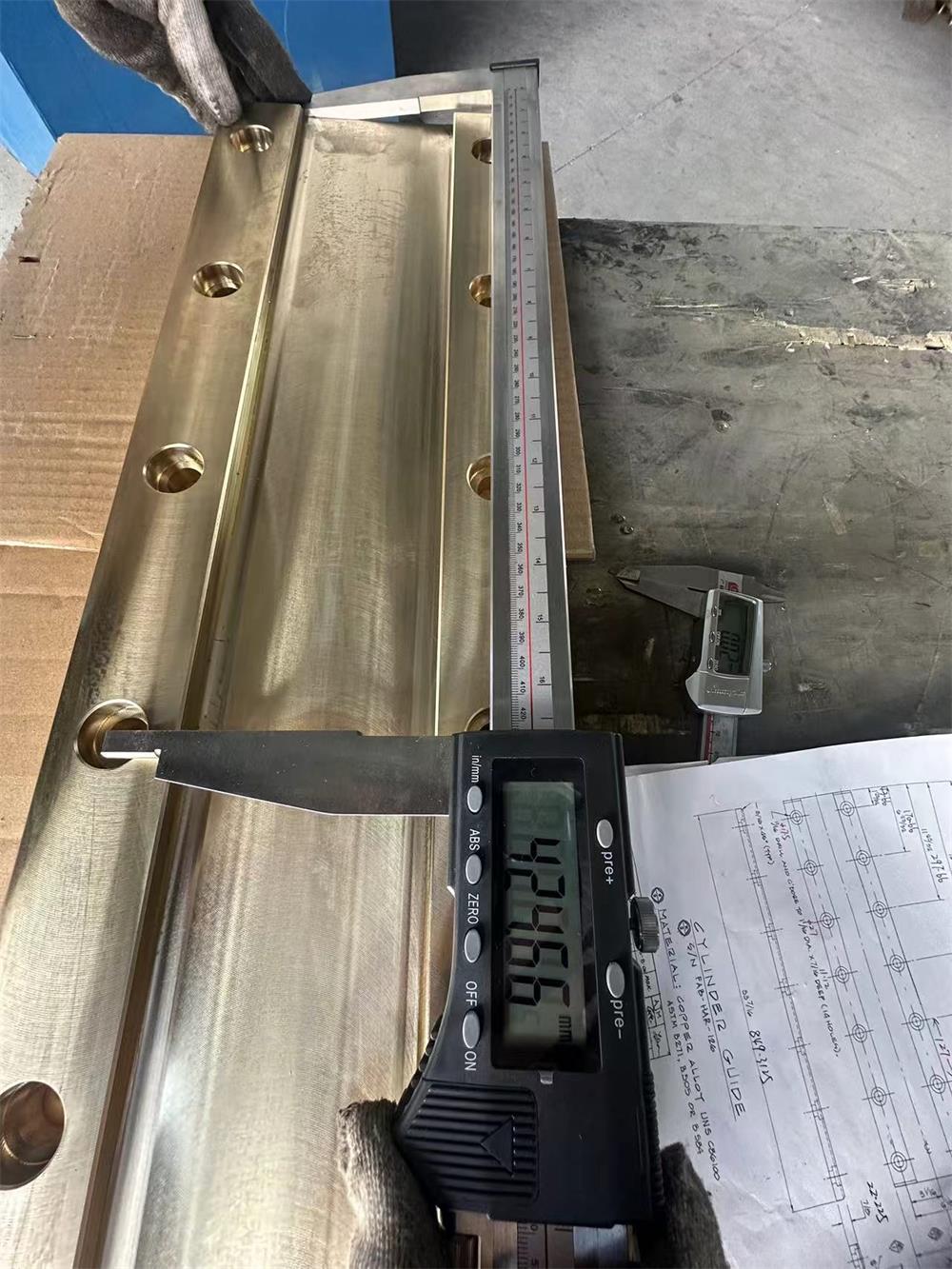

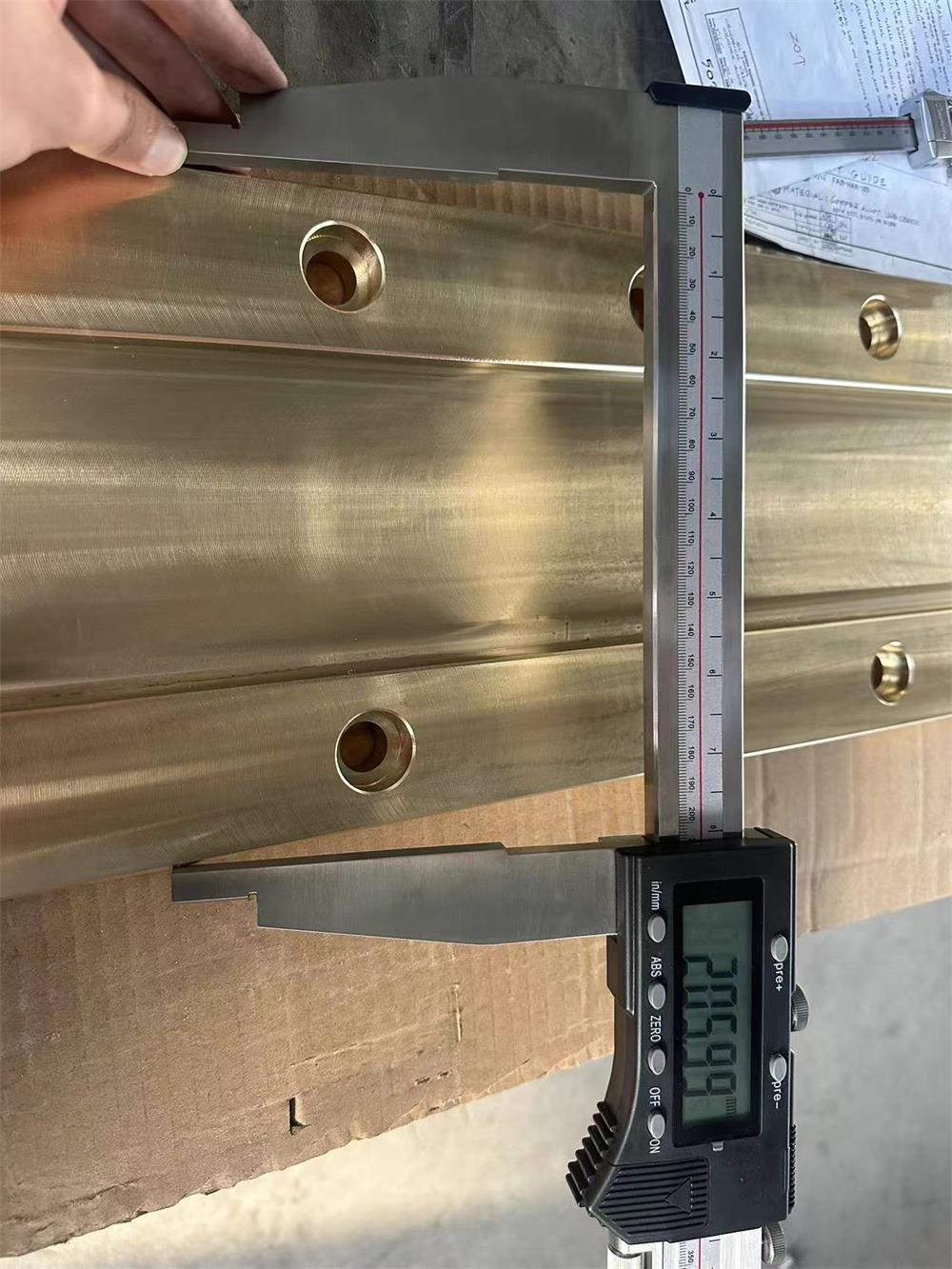

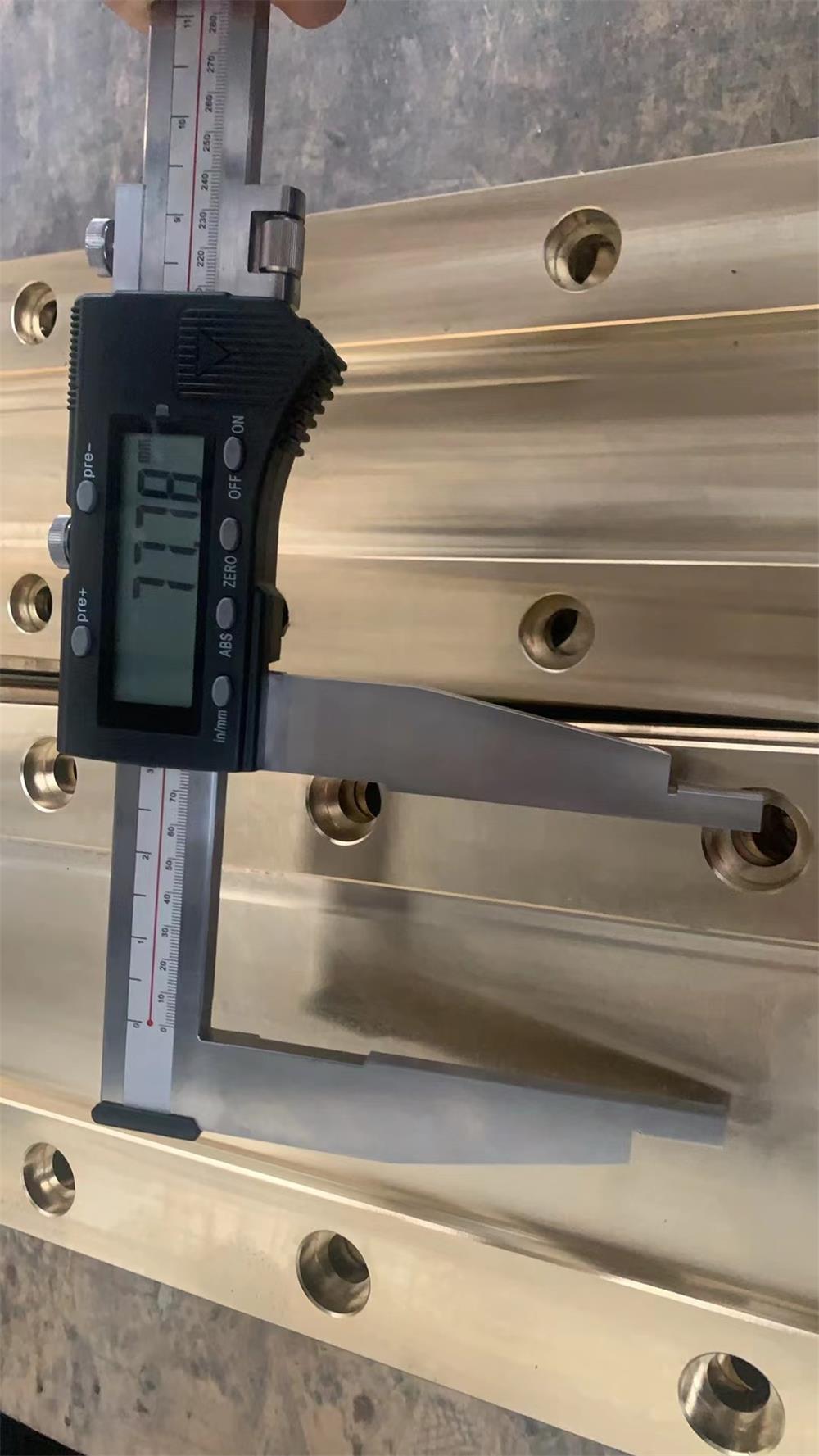

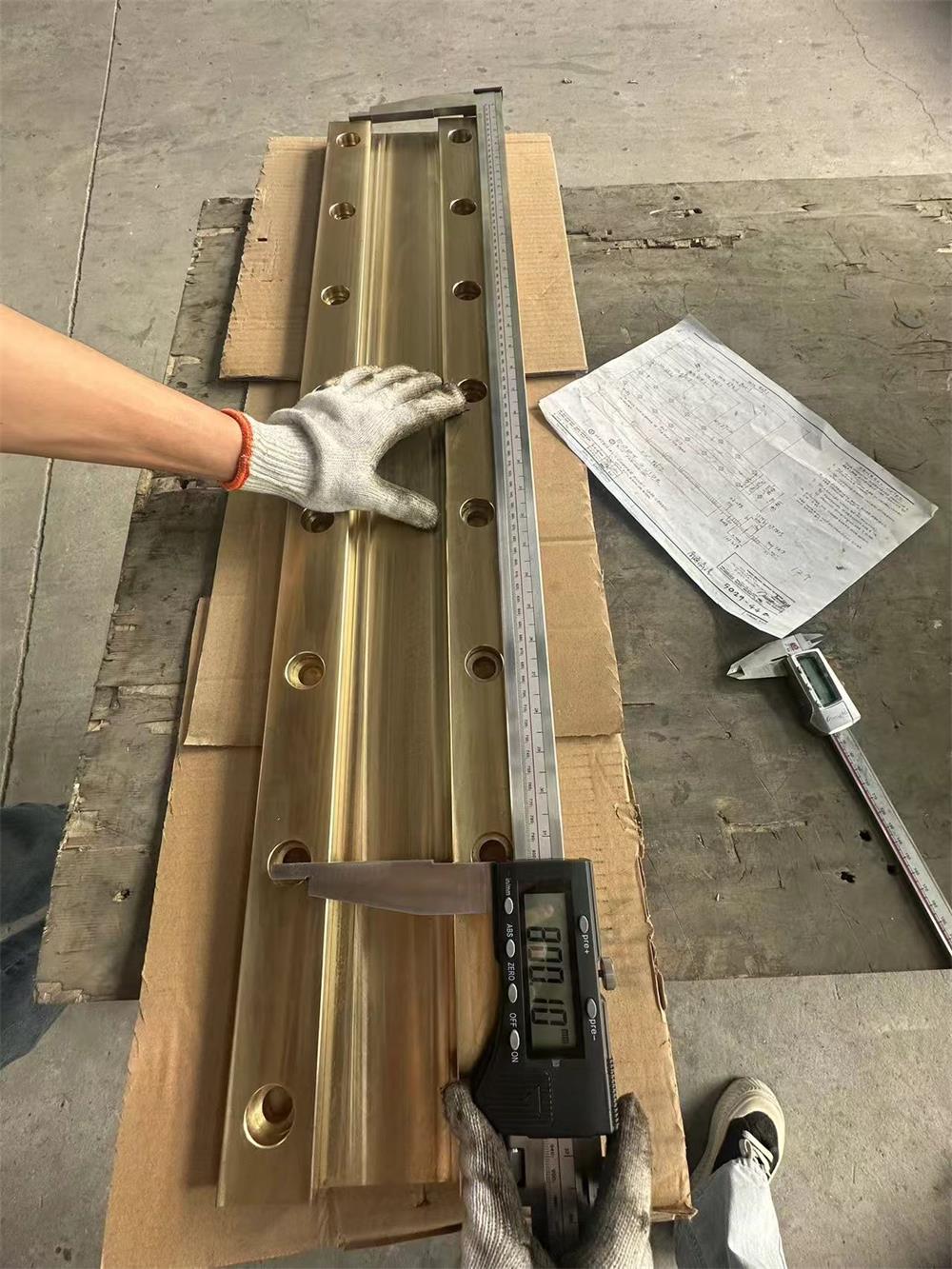

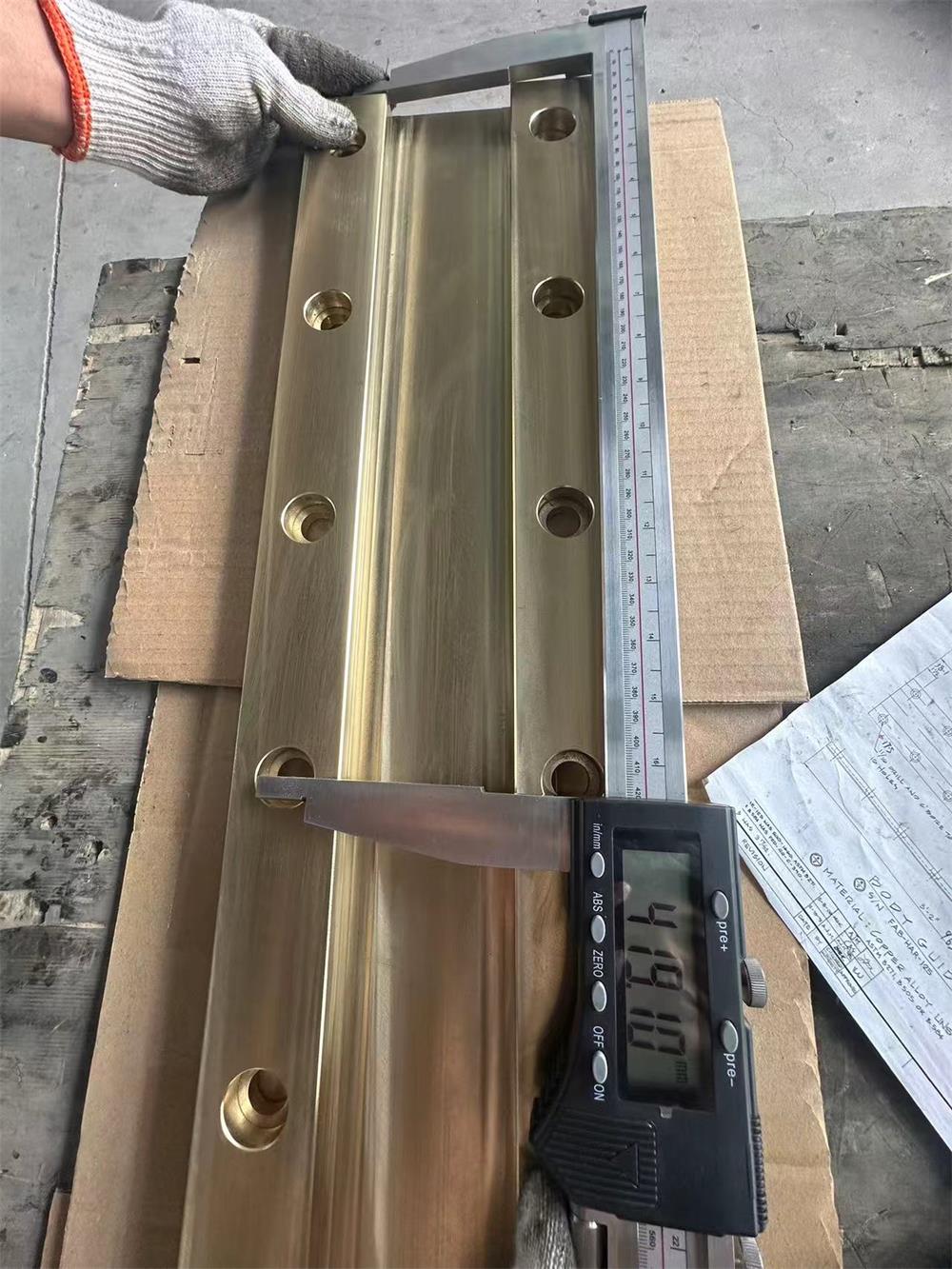

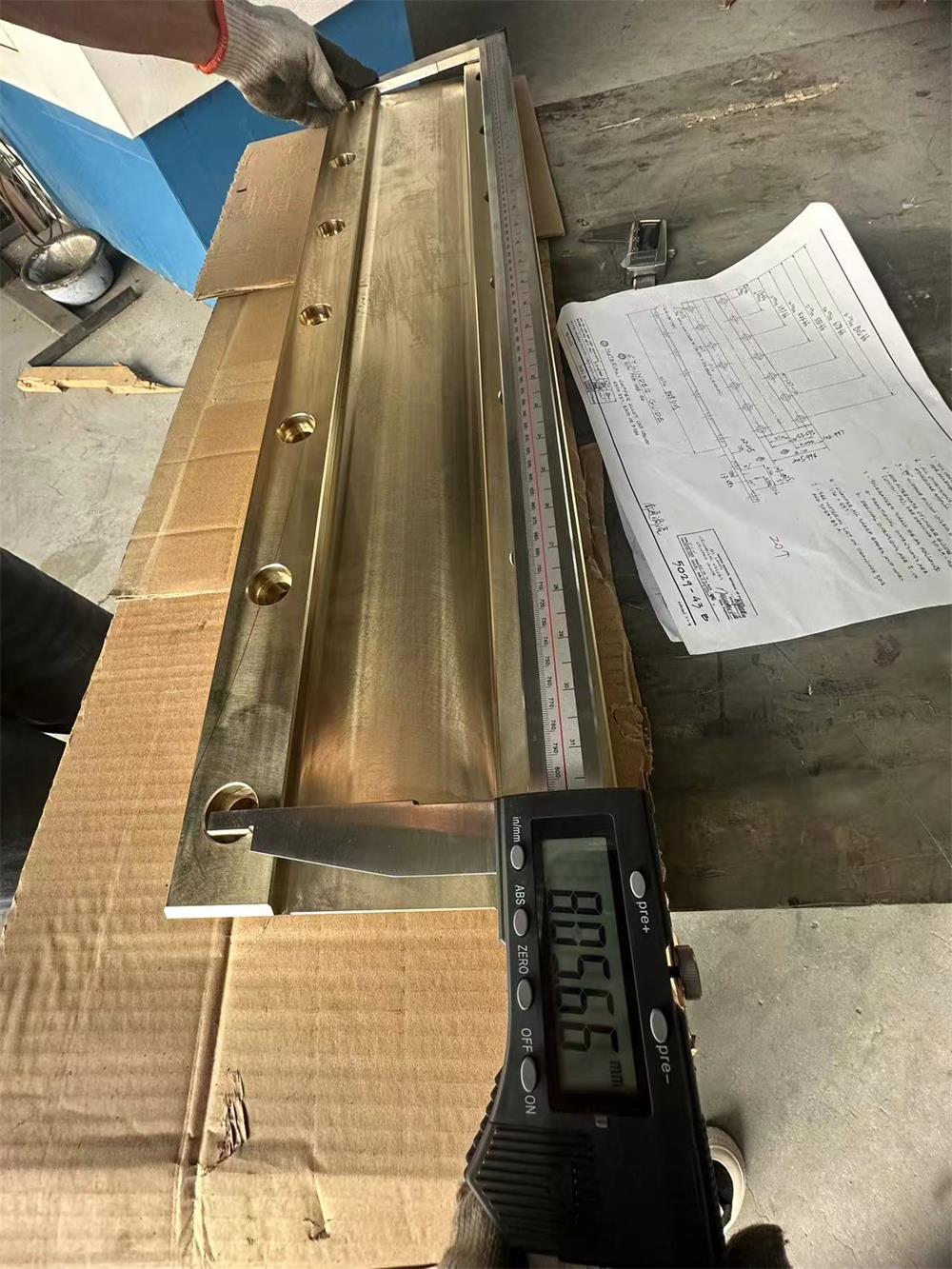

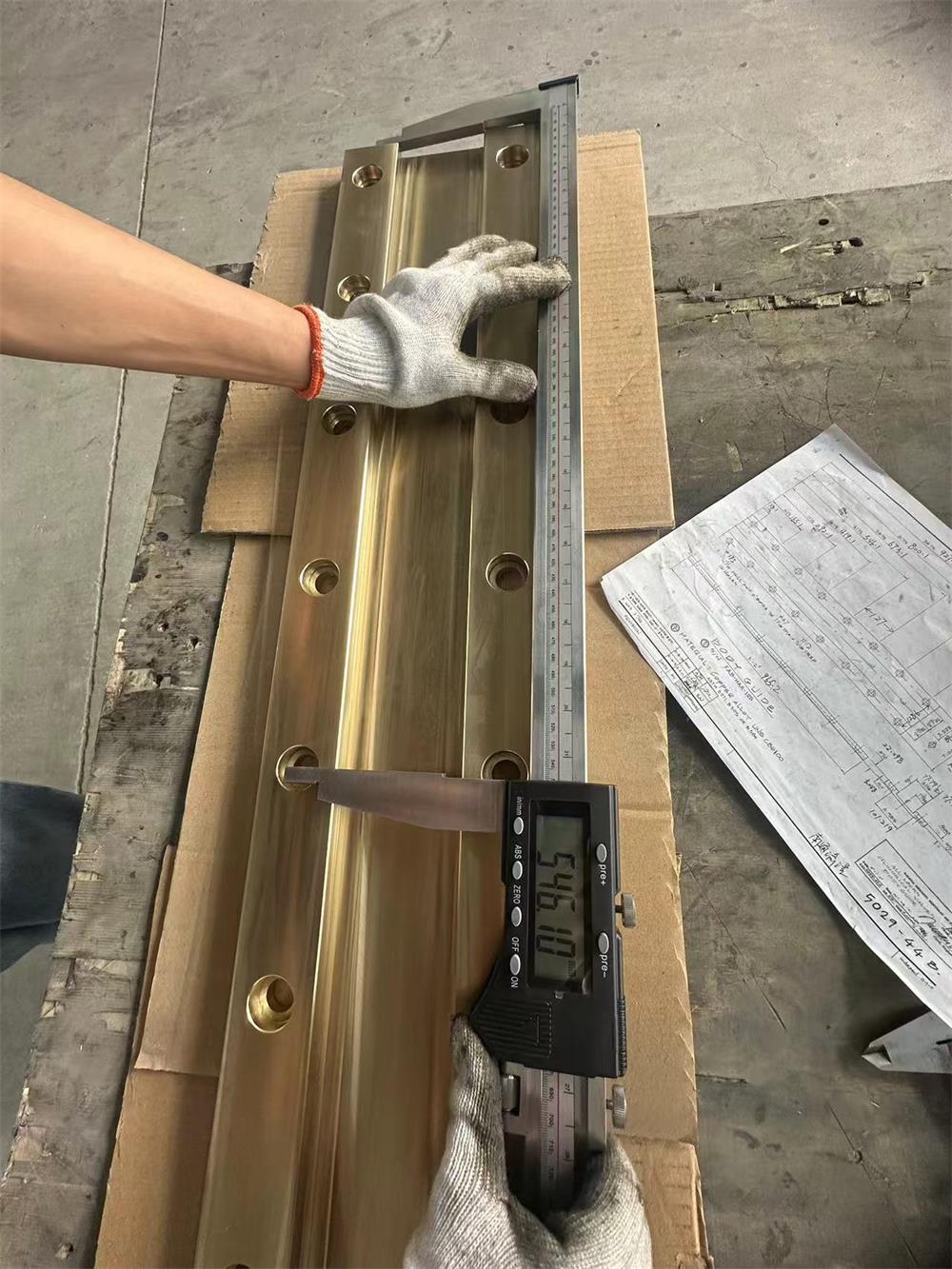

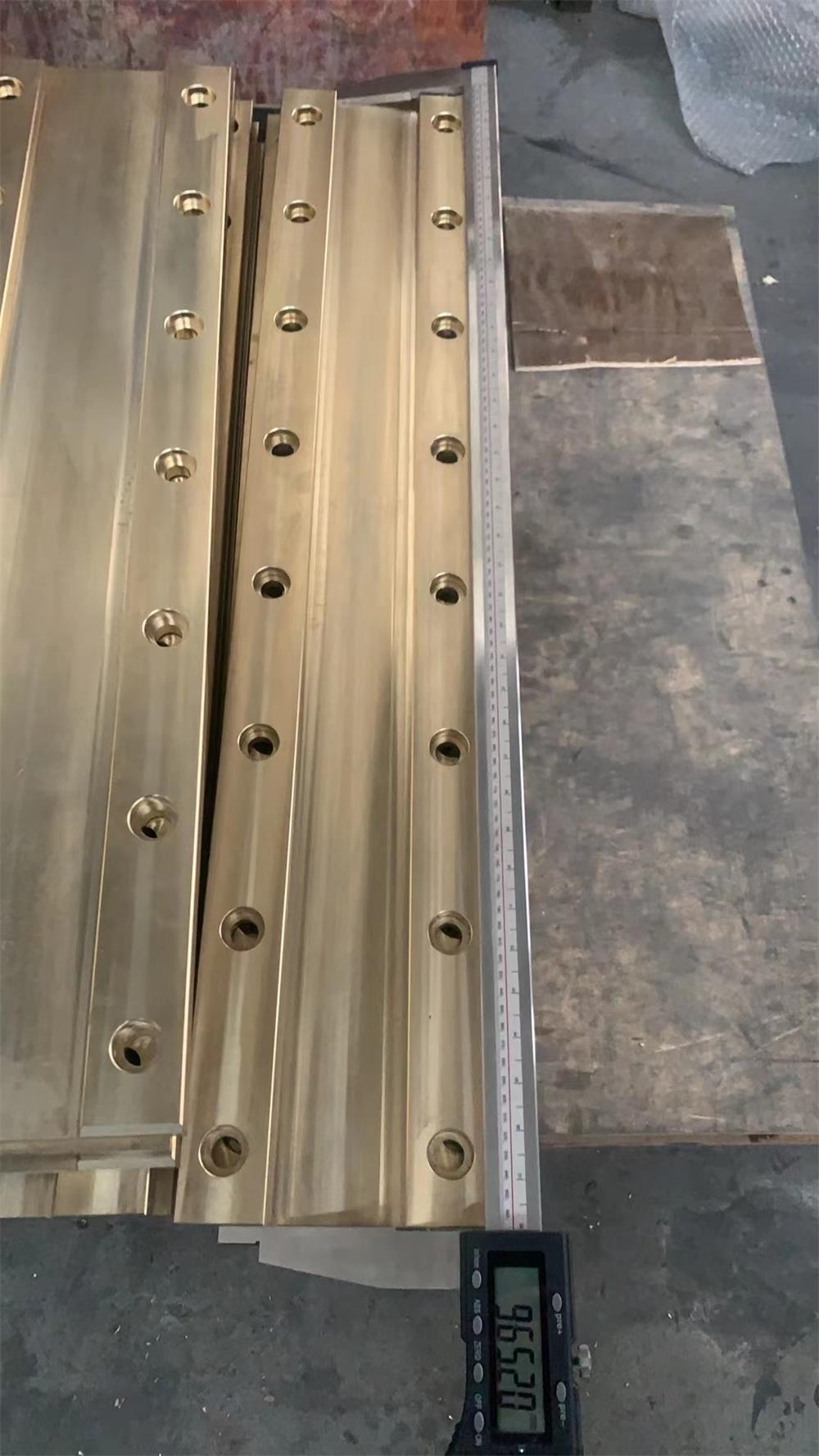

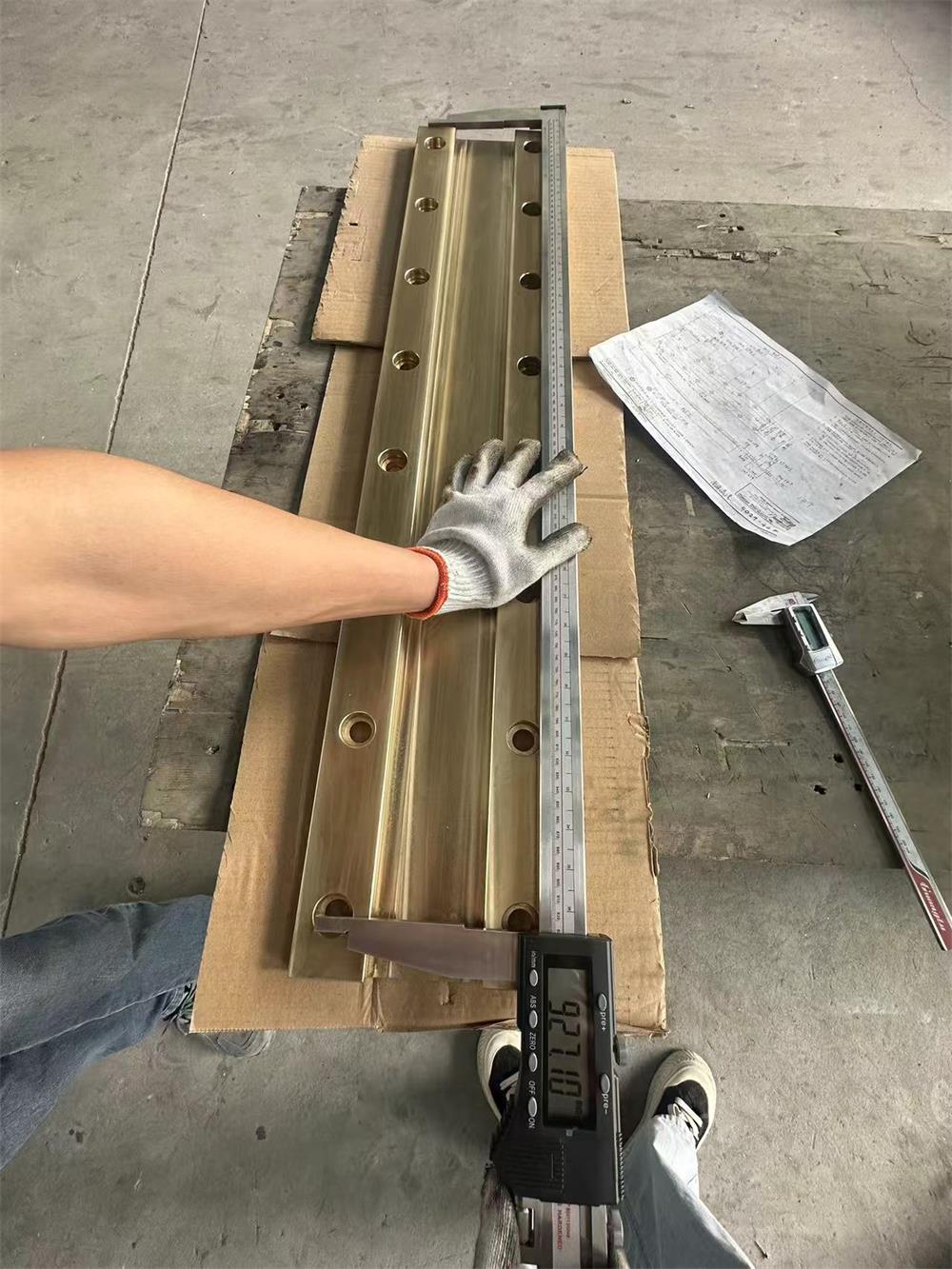

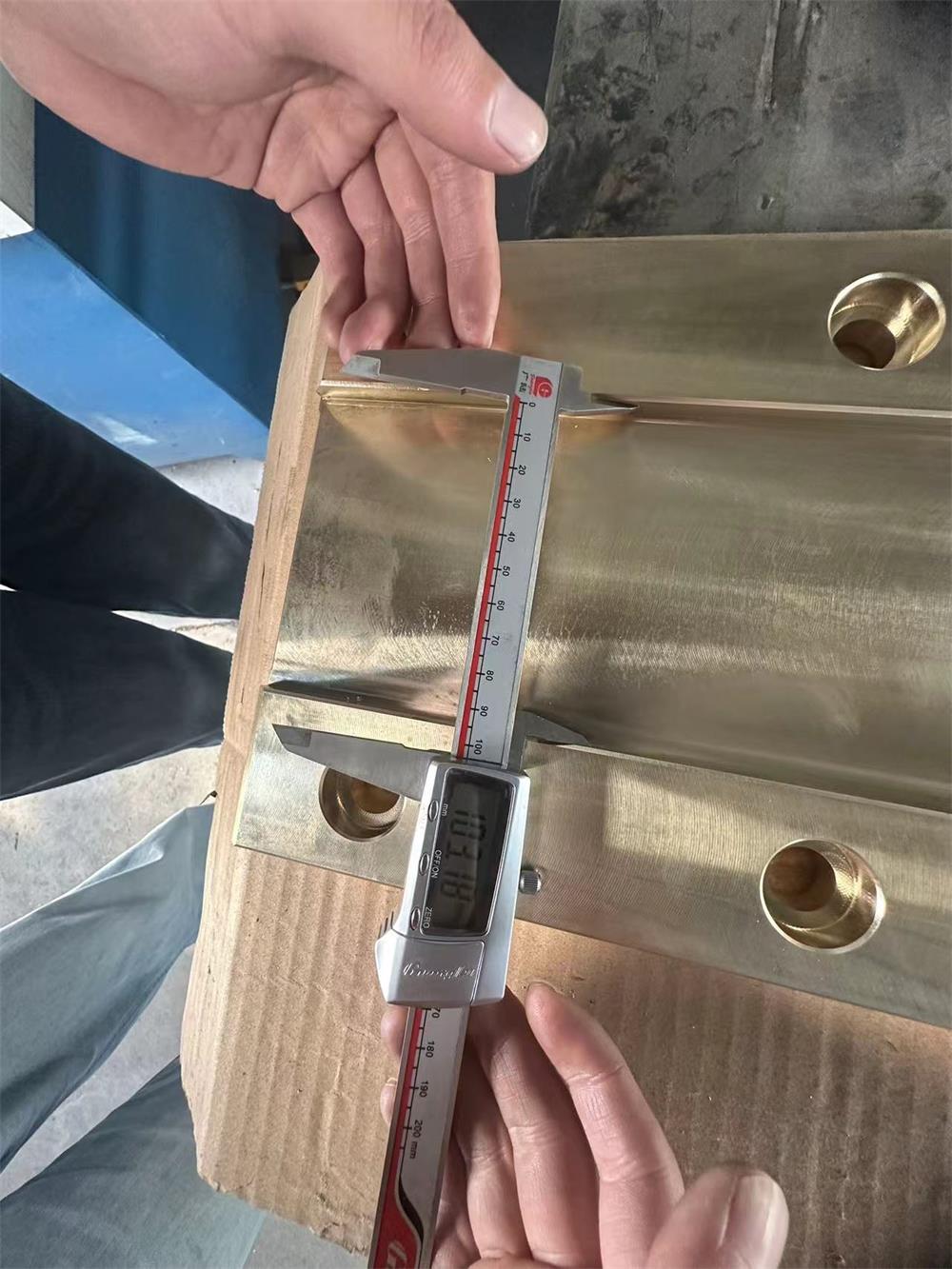

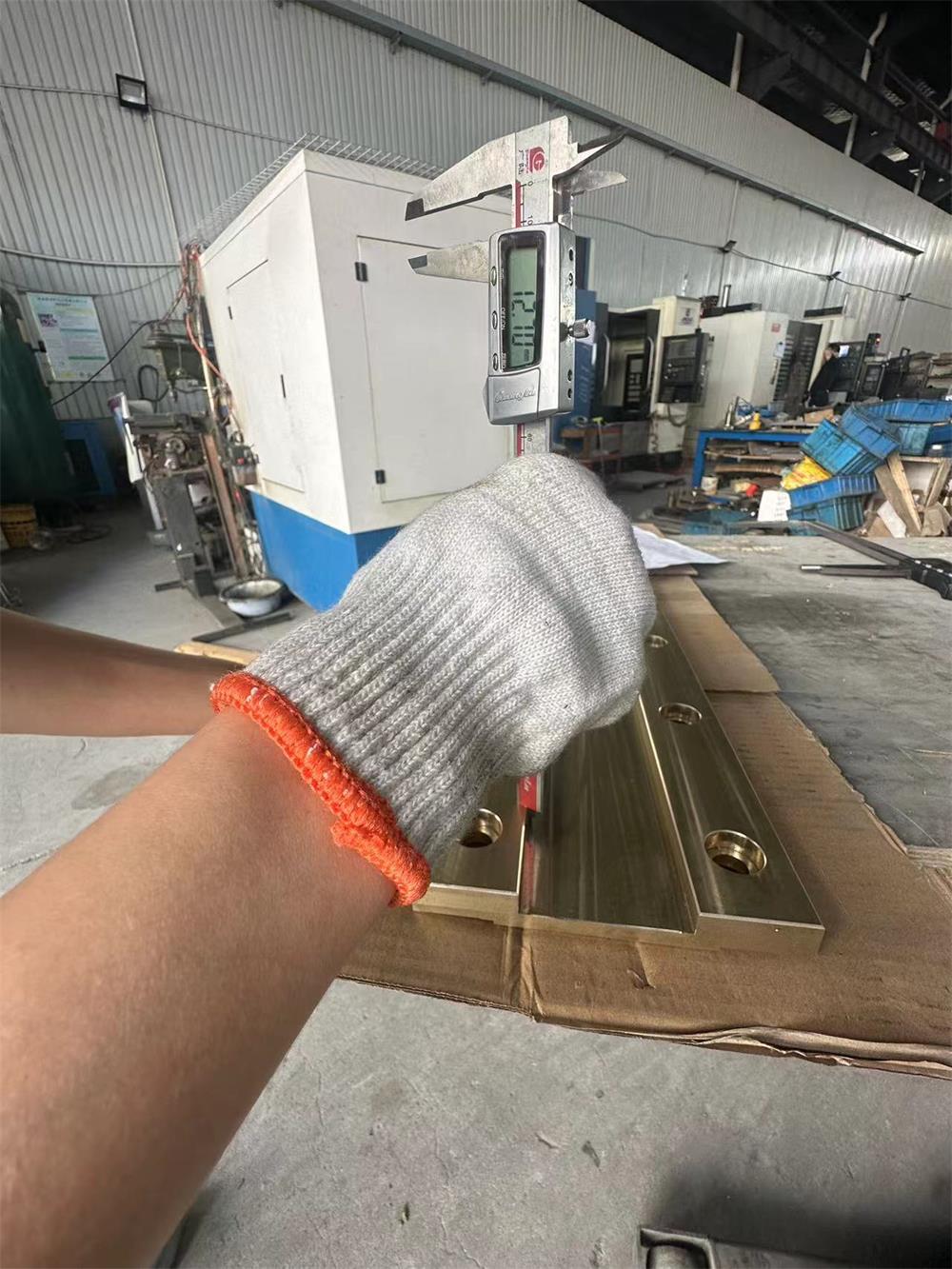

Size Certificate with Pictures
Item 2
Quantity
20pcs
Drawing

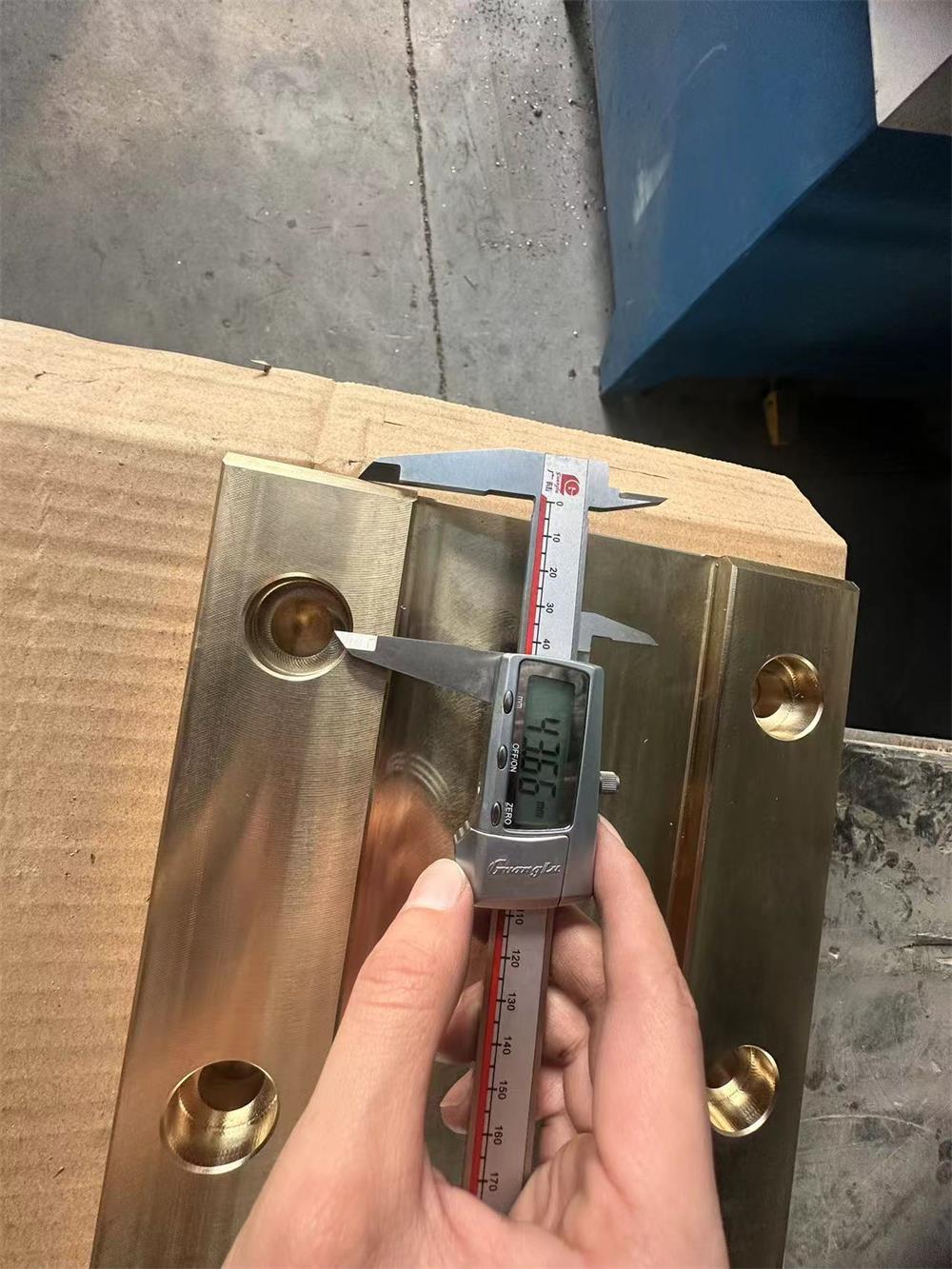

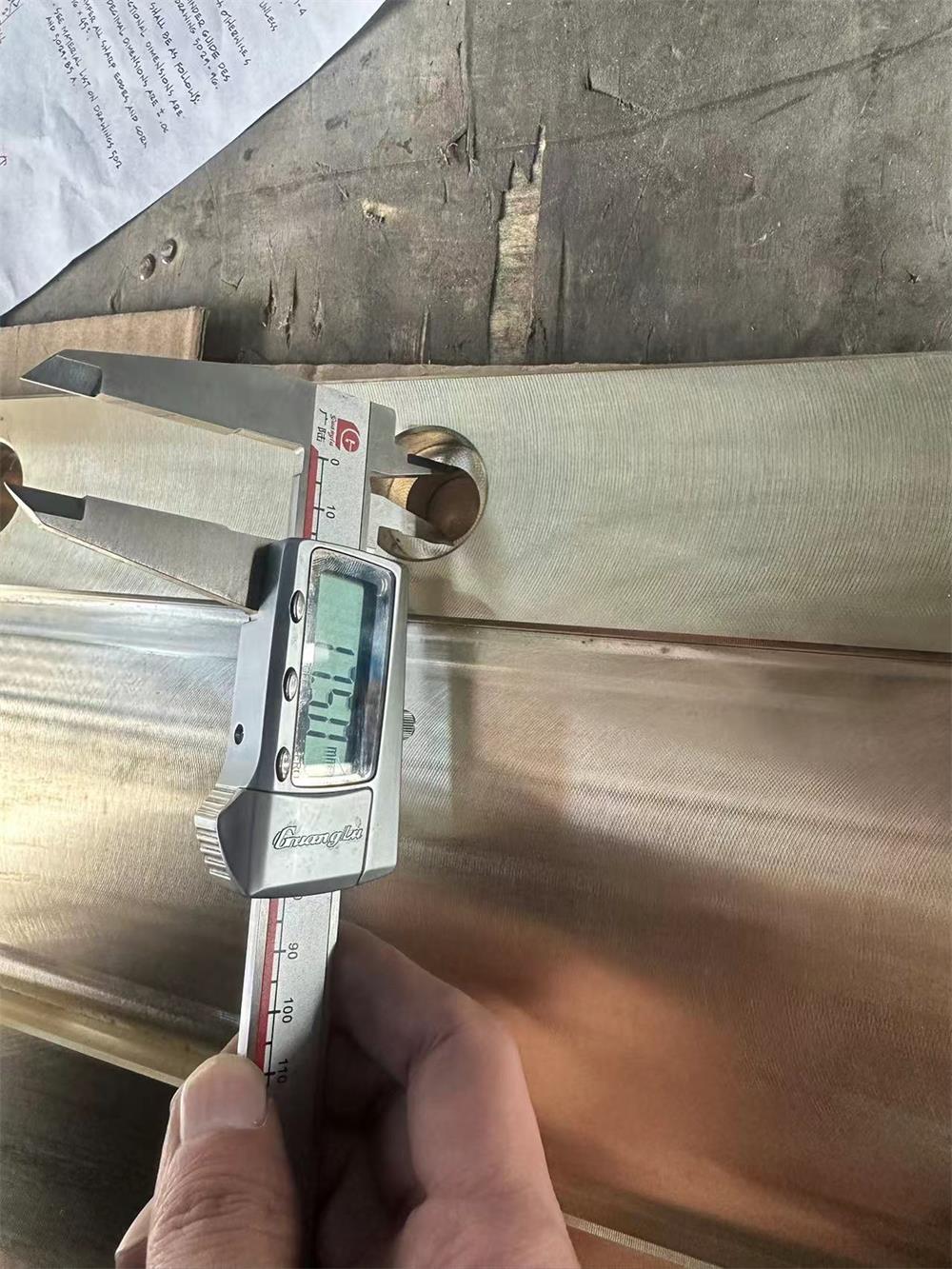

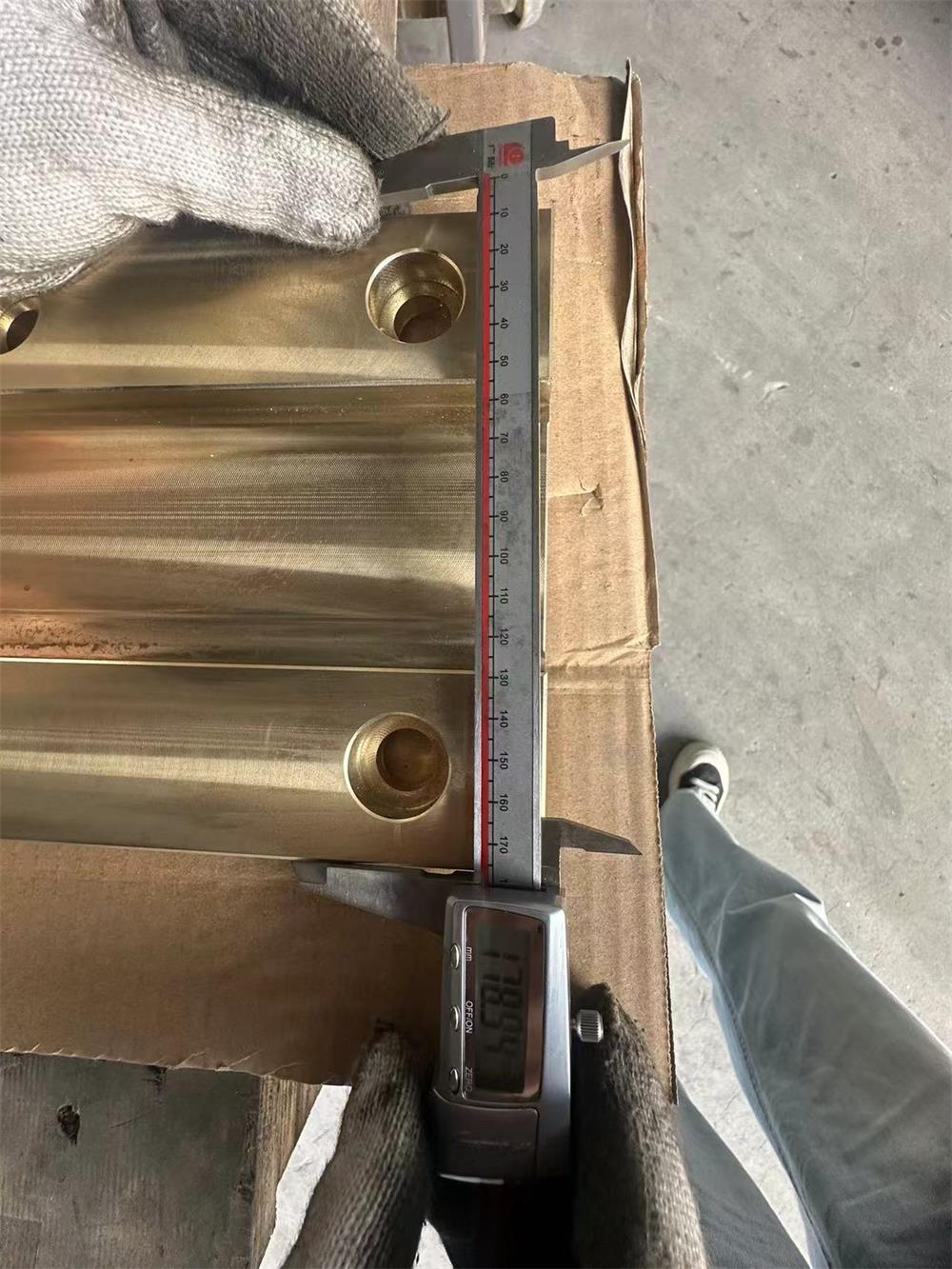

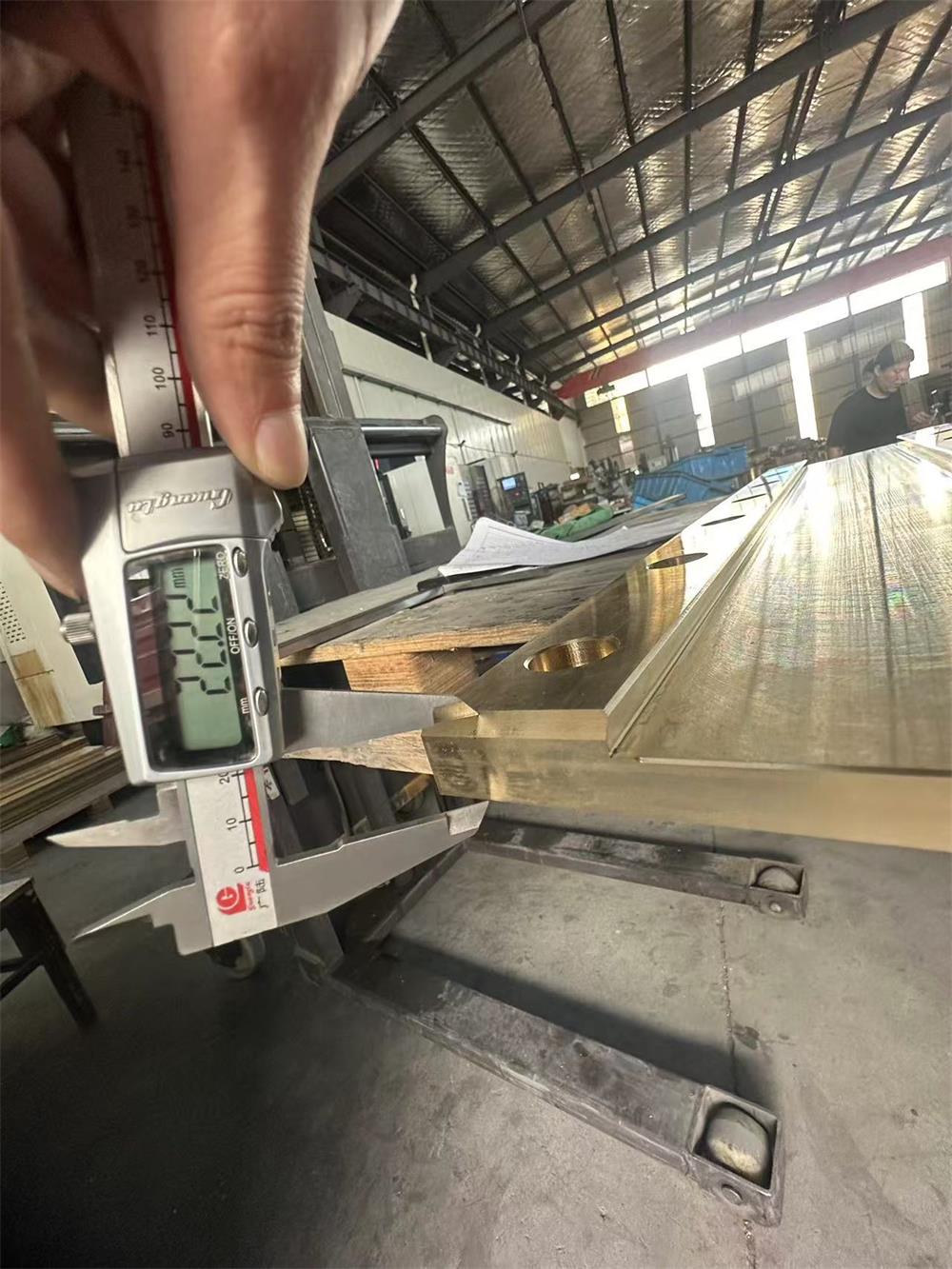

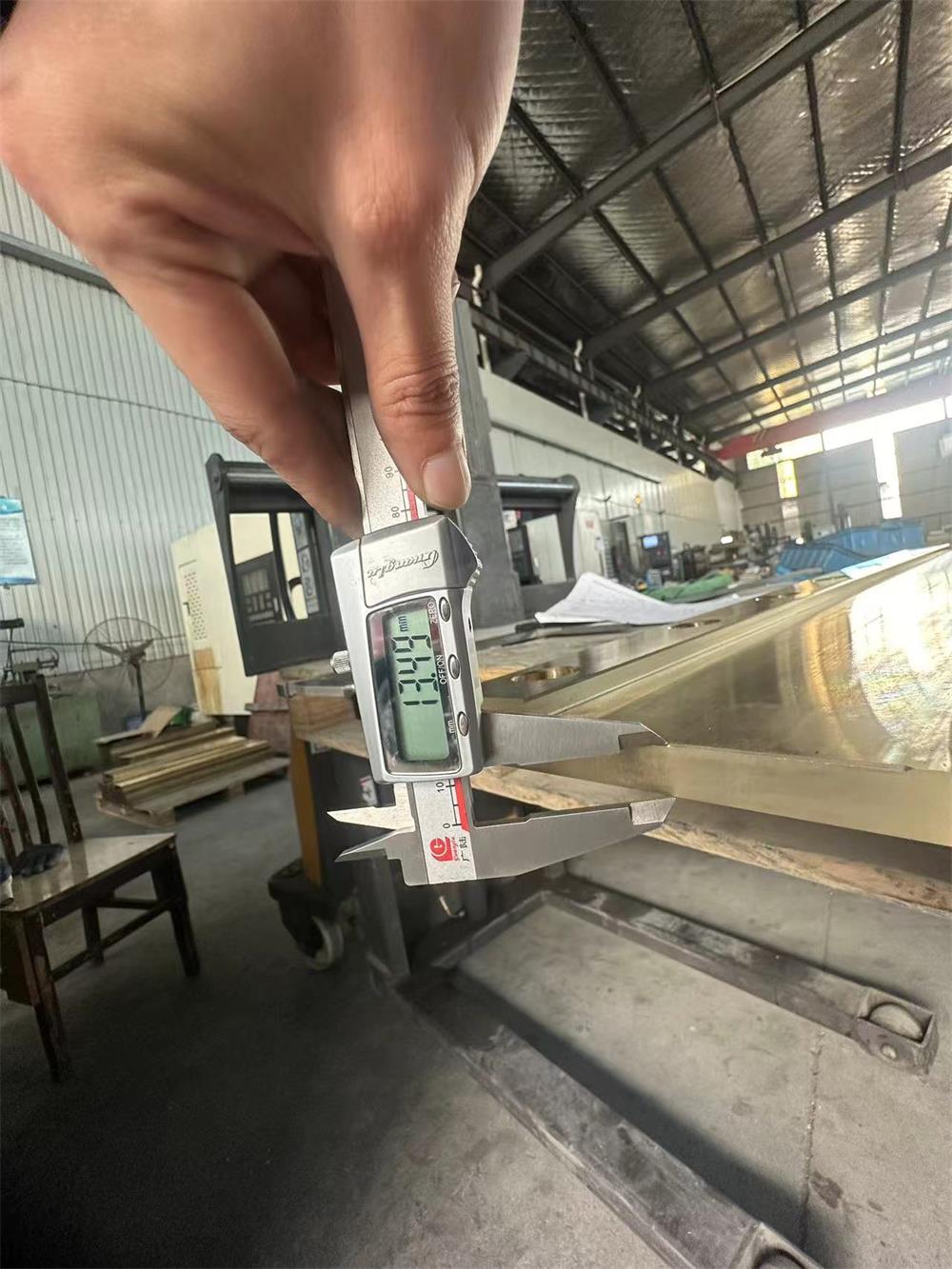

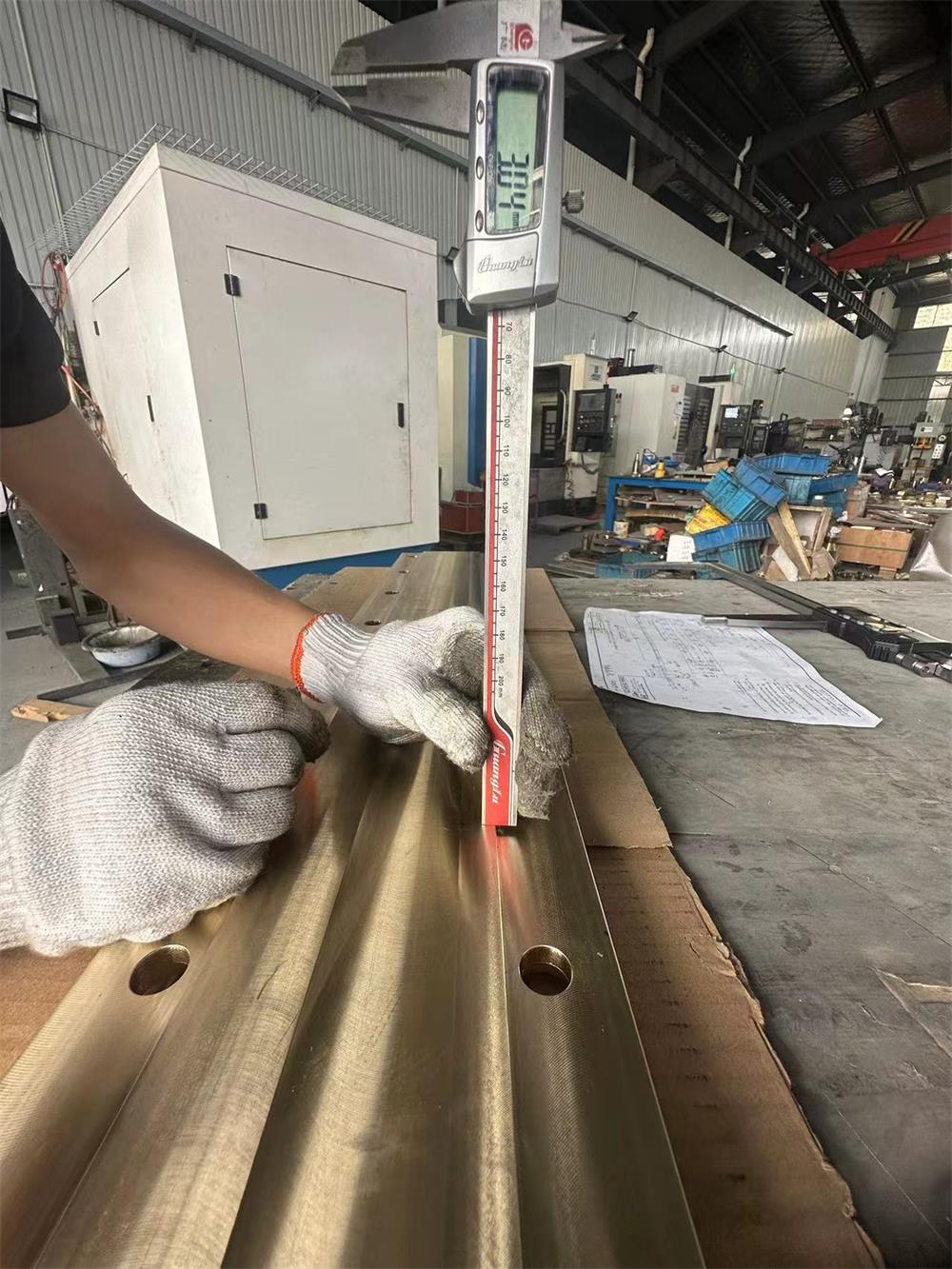

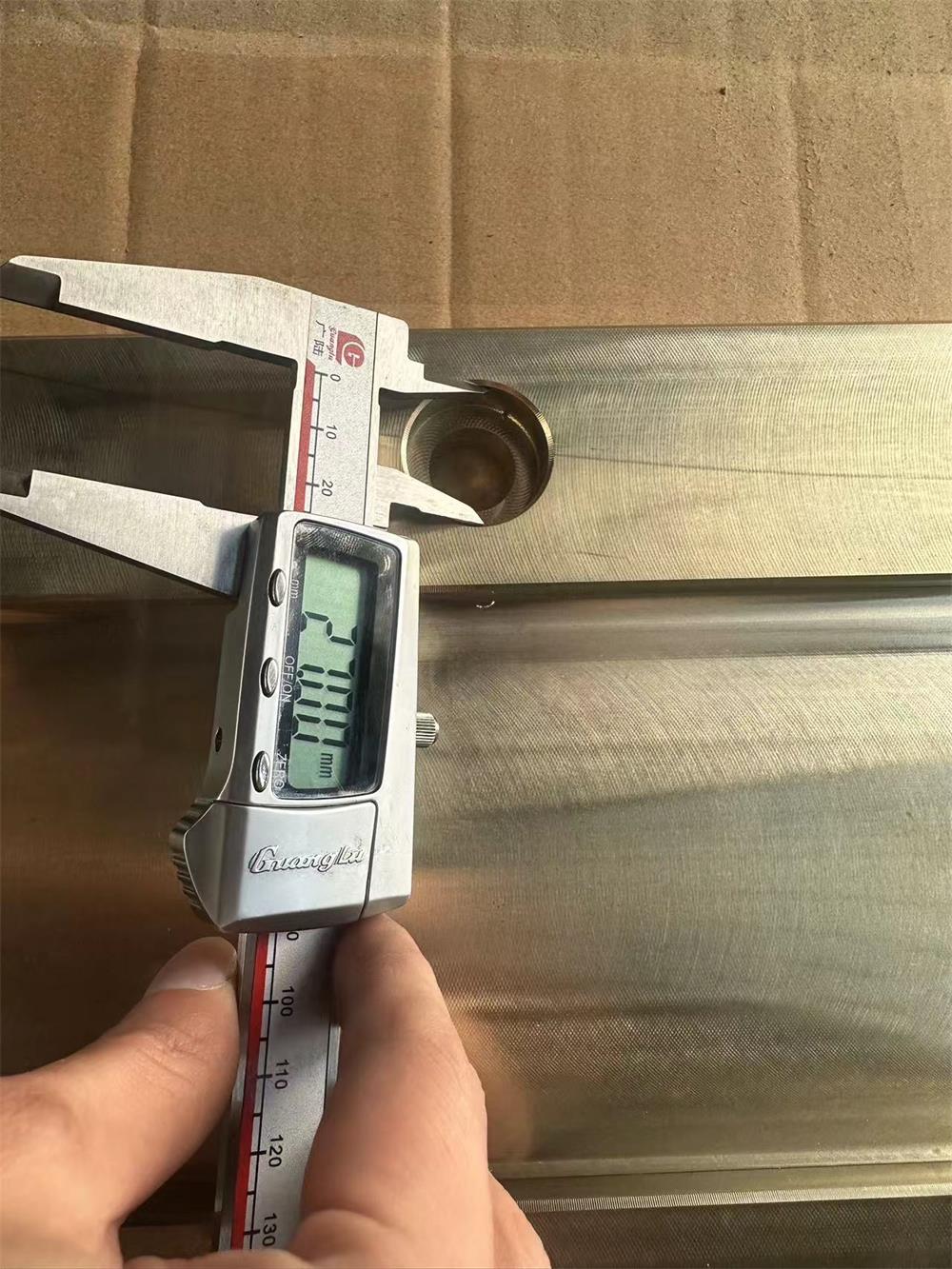

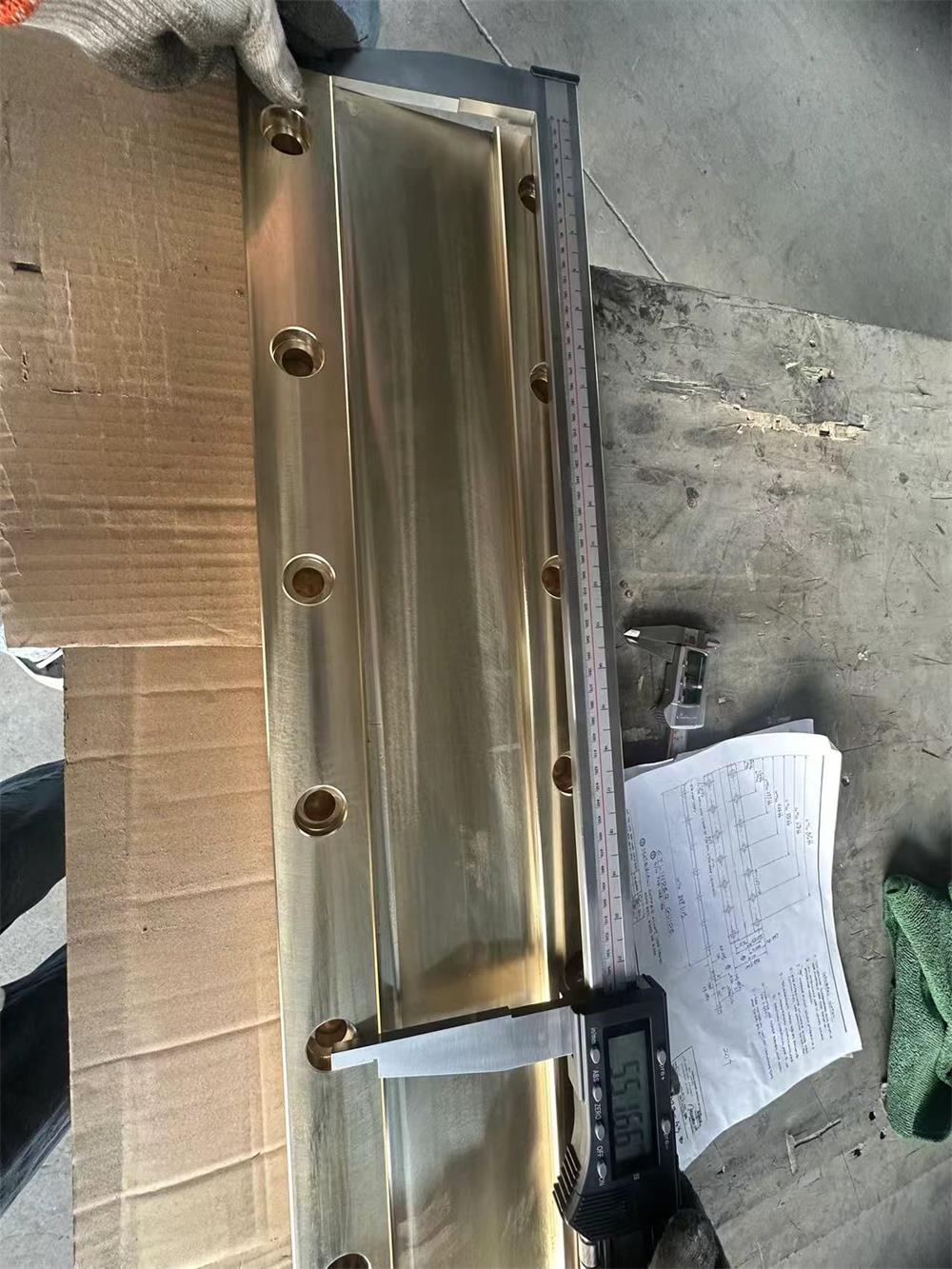

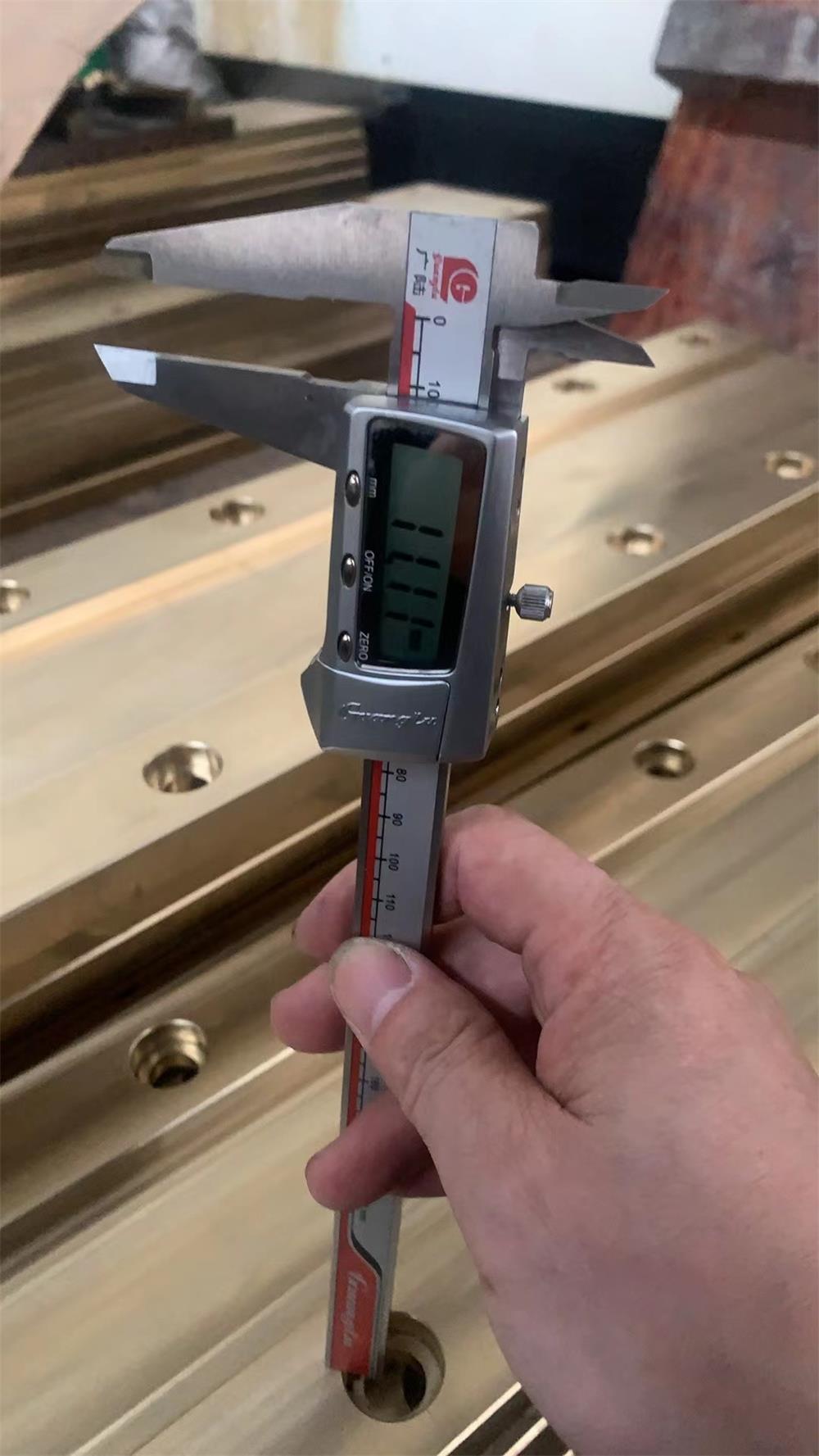

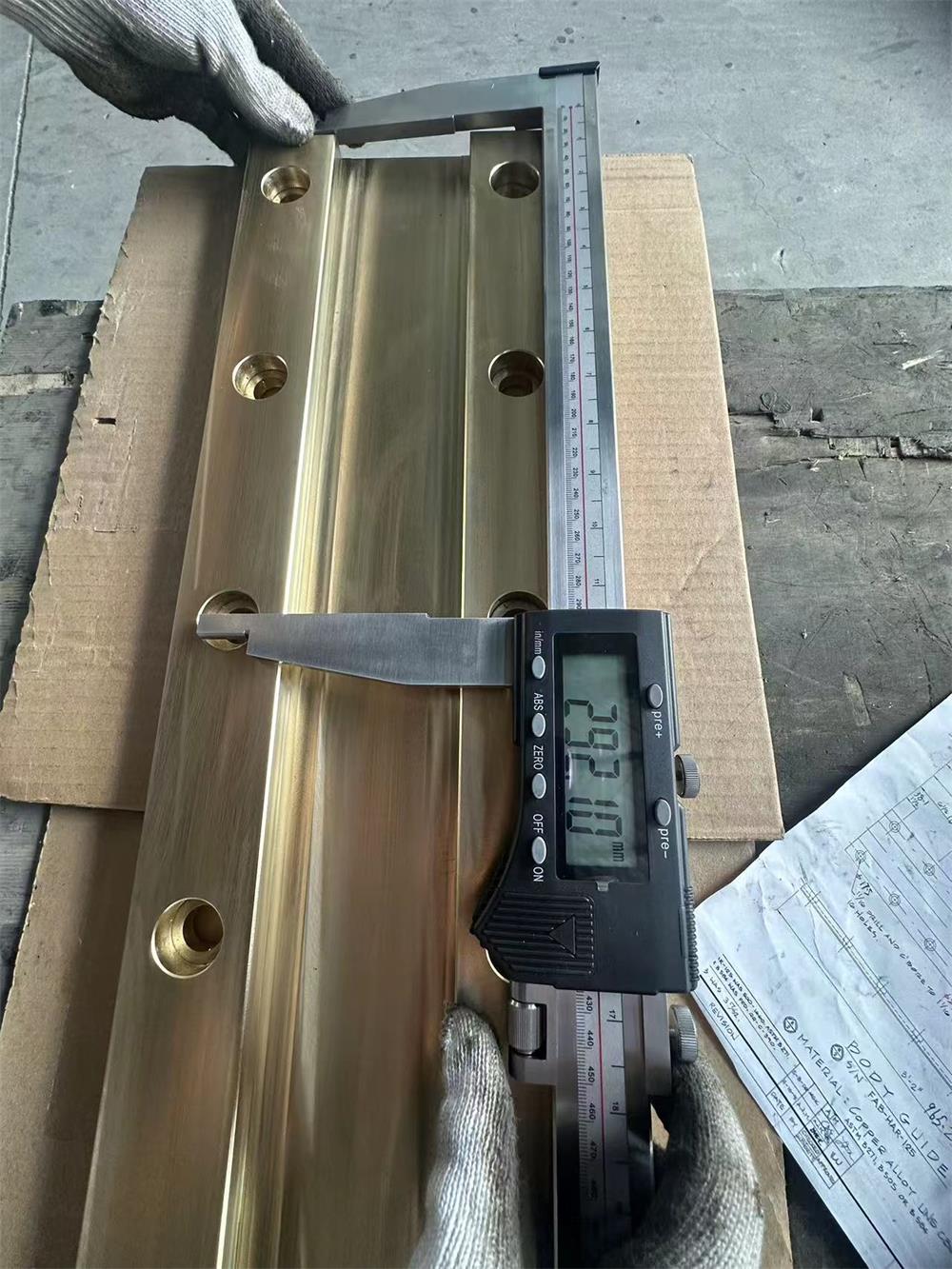

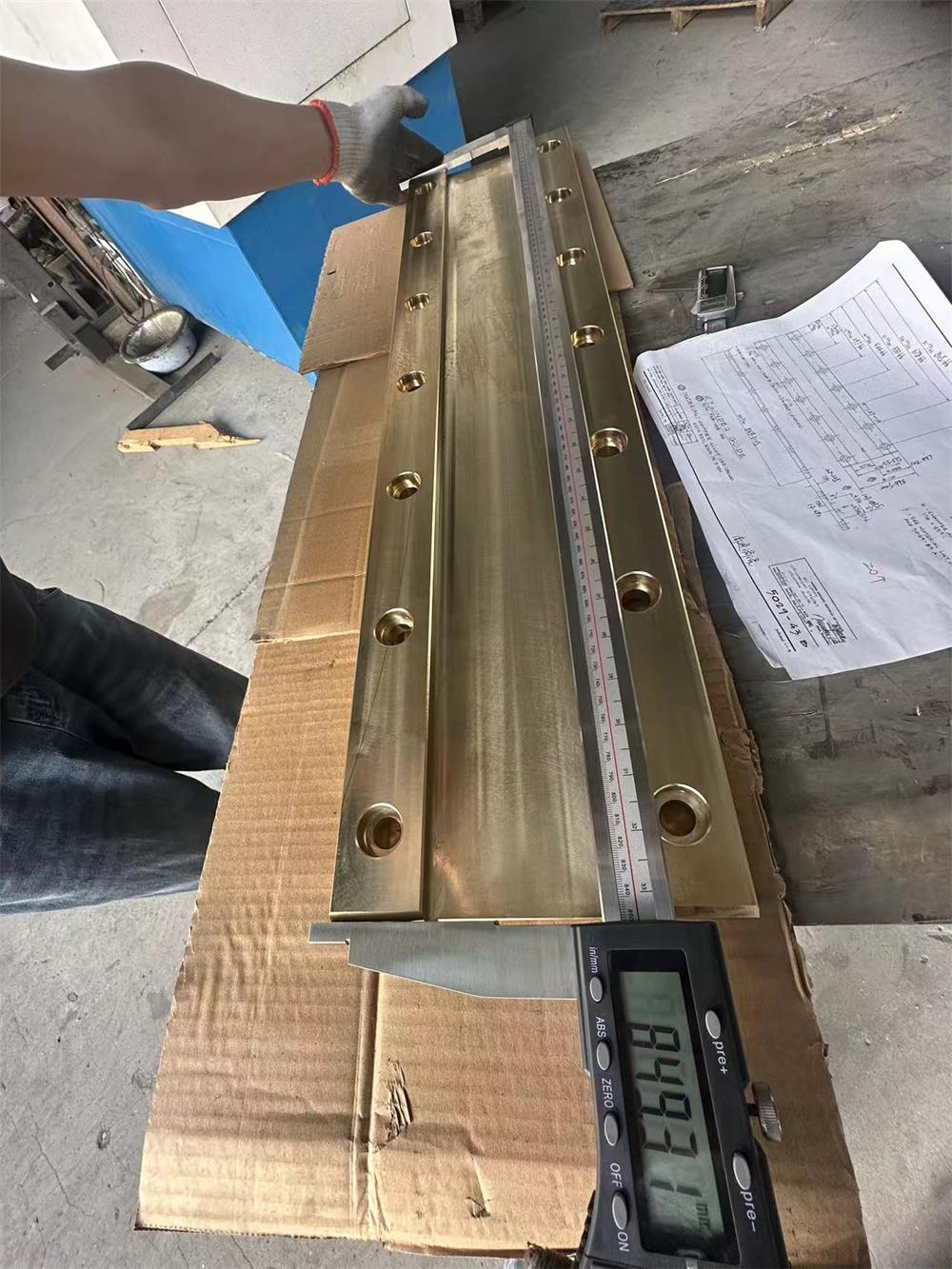

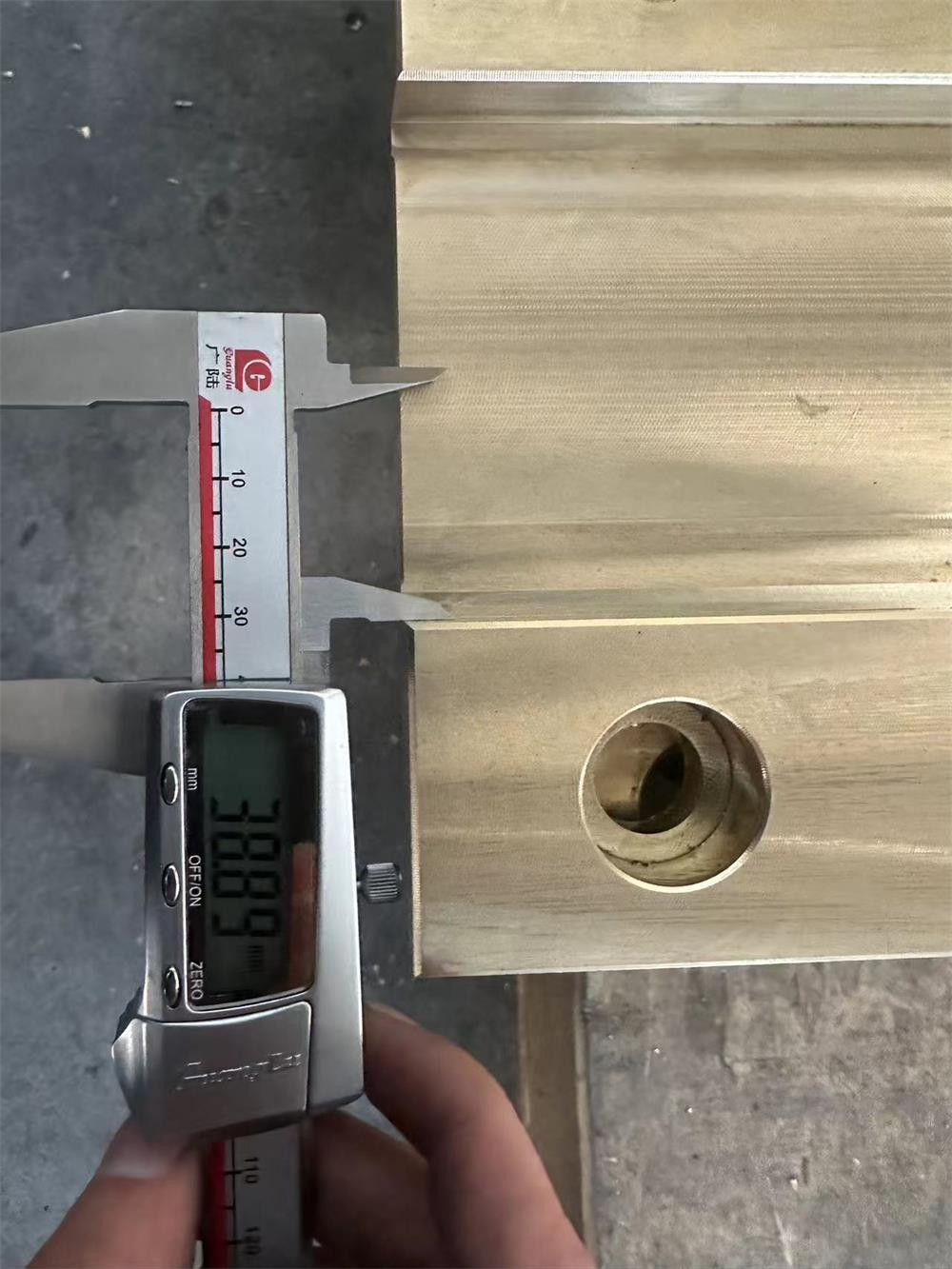

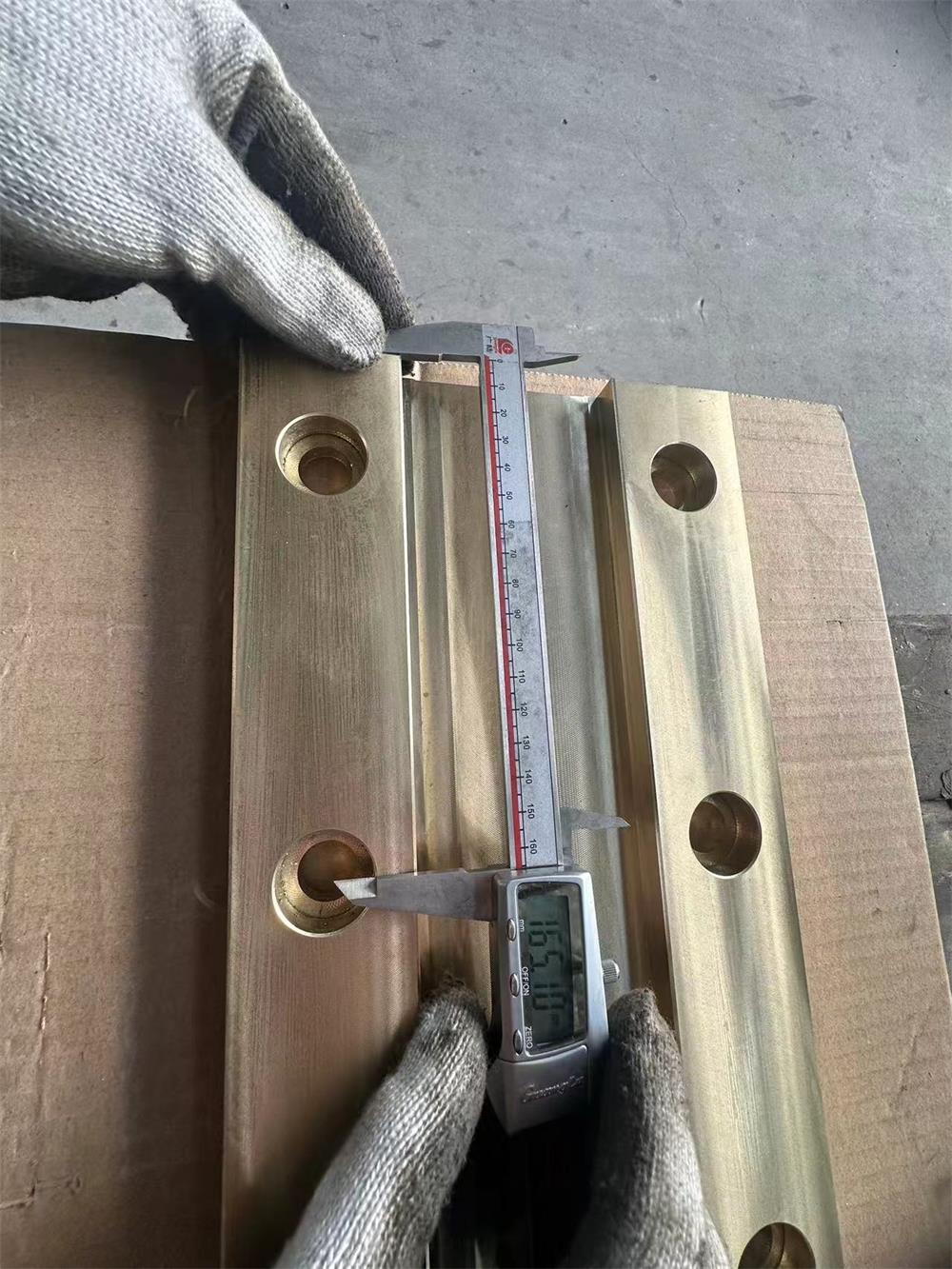

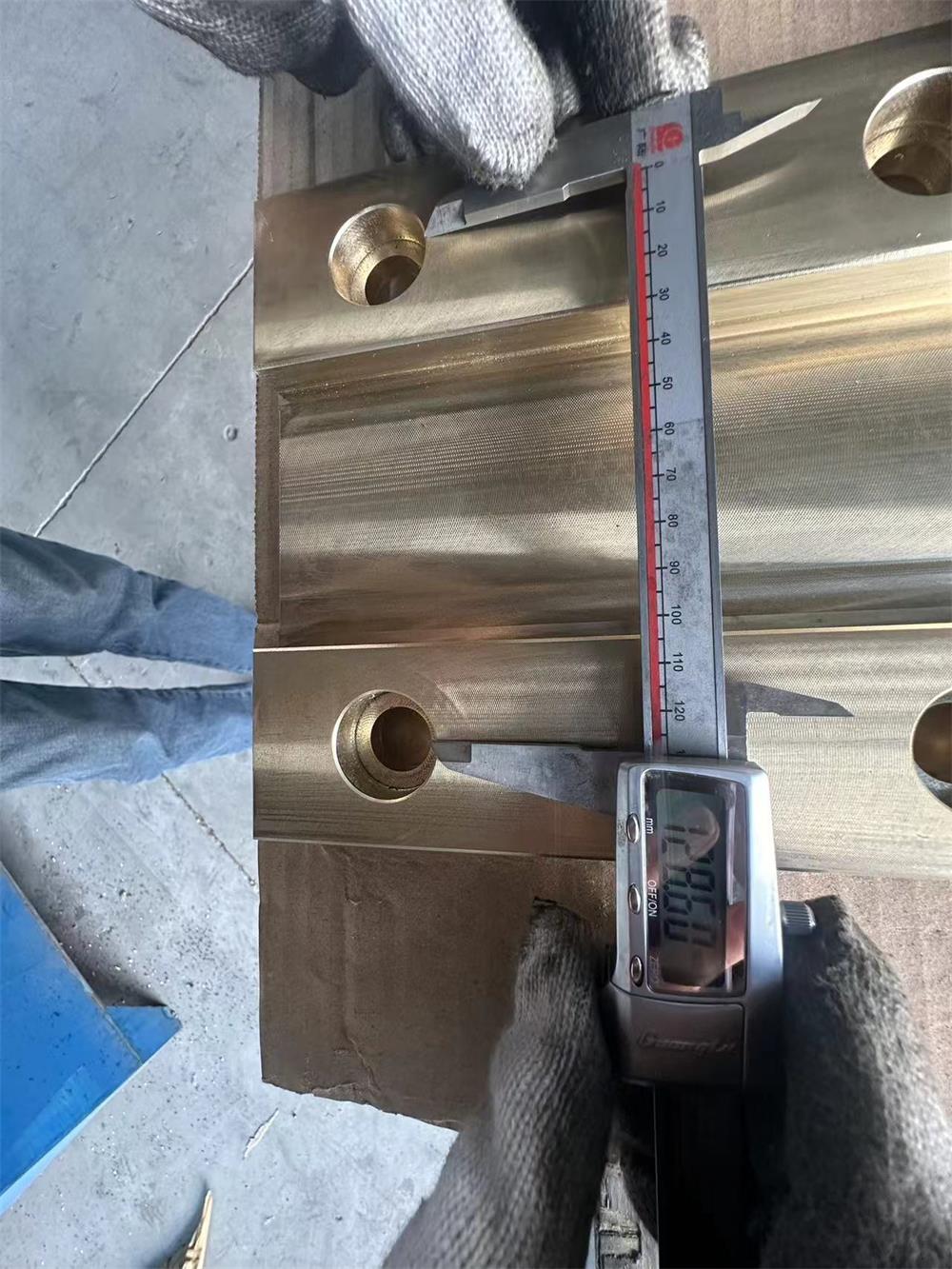

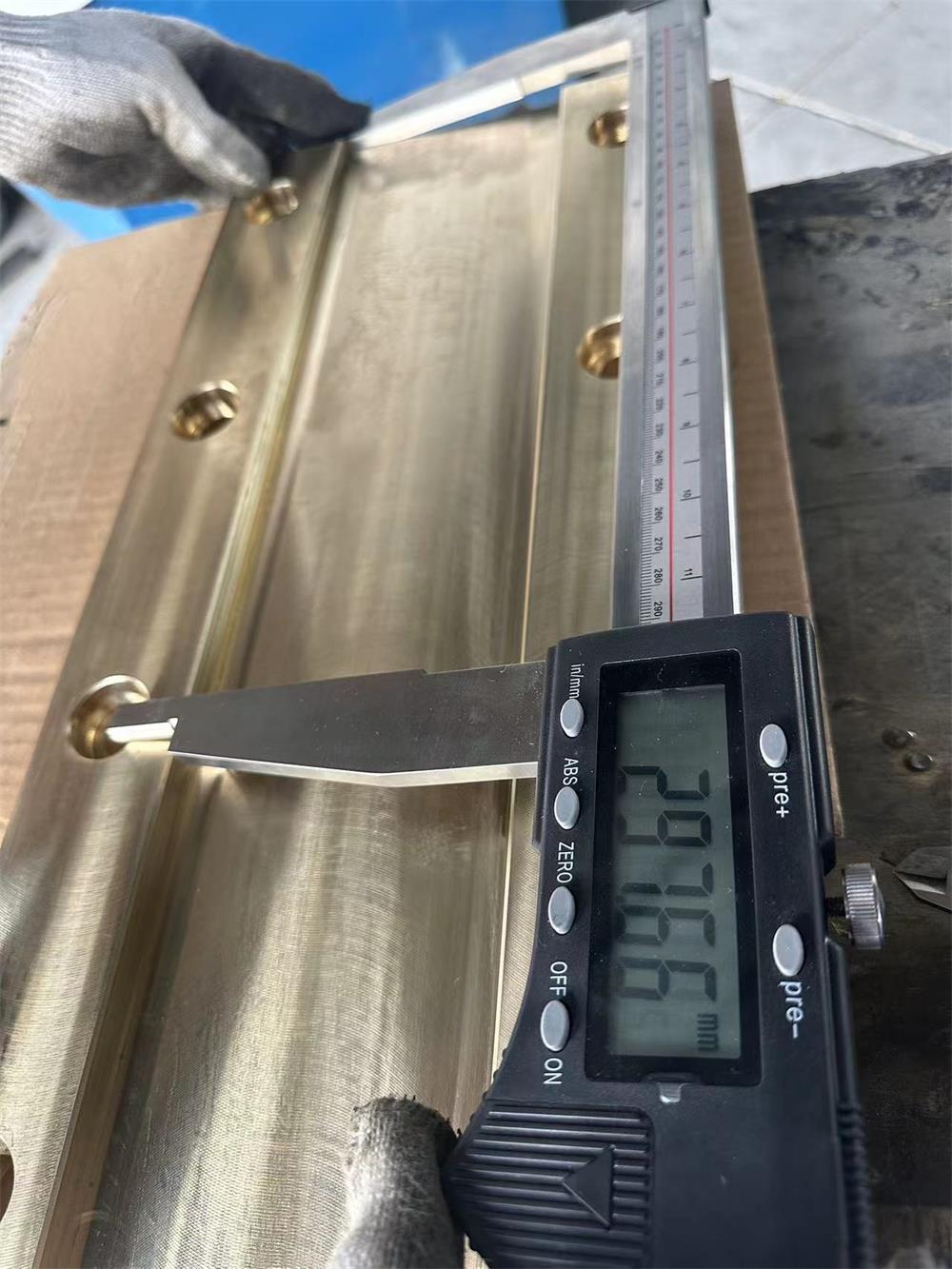

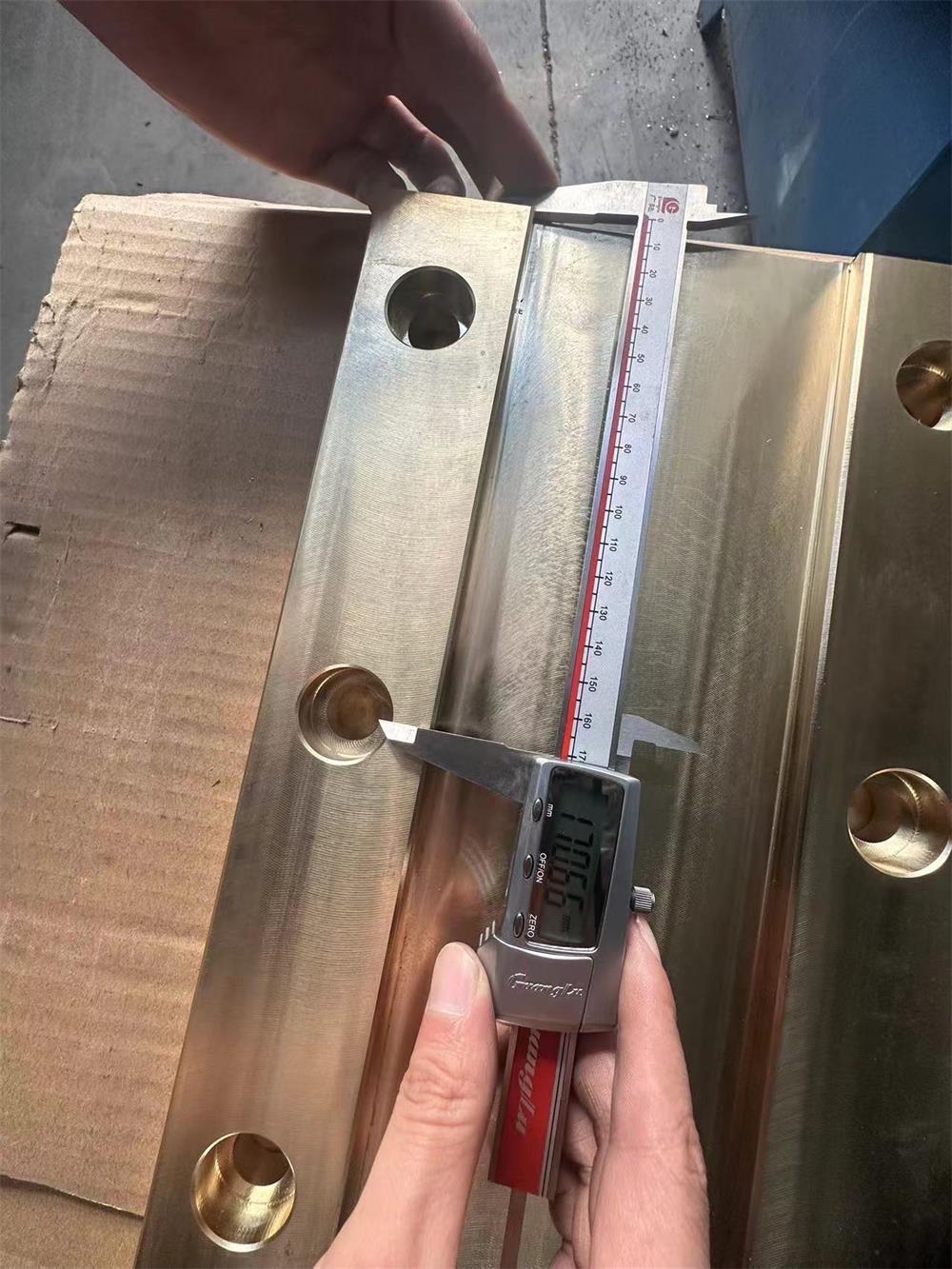

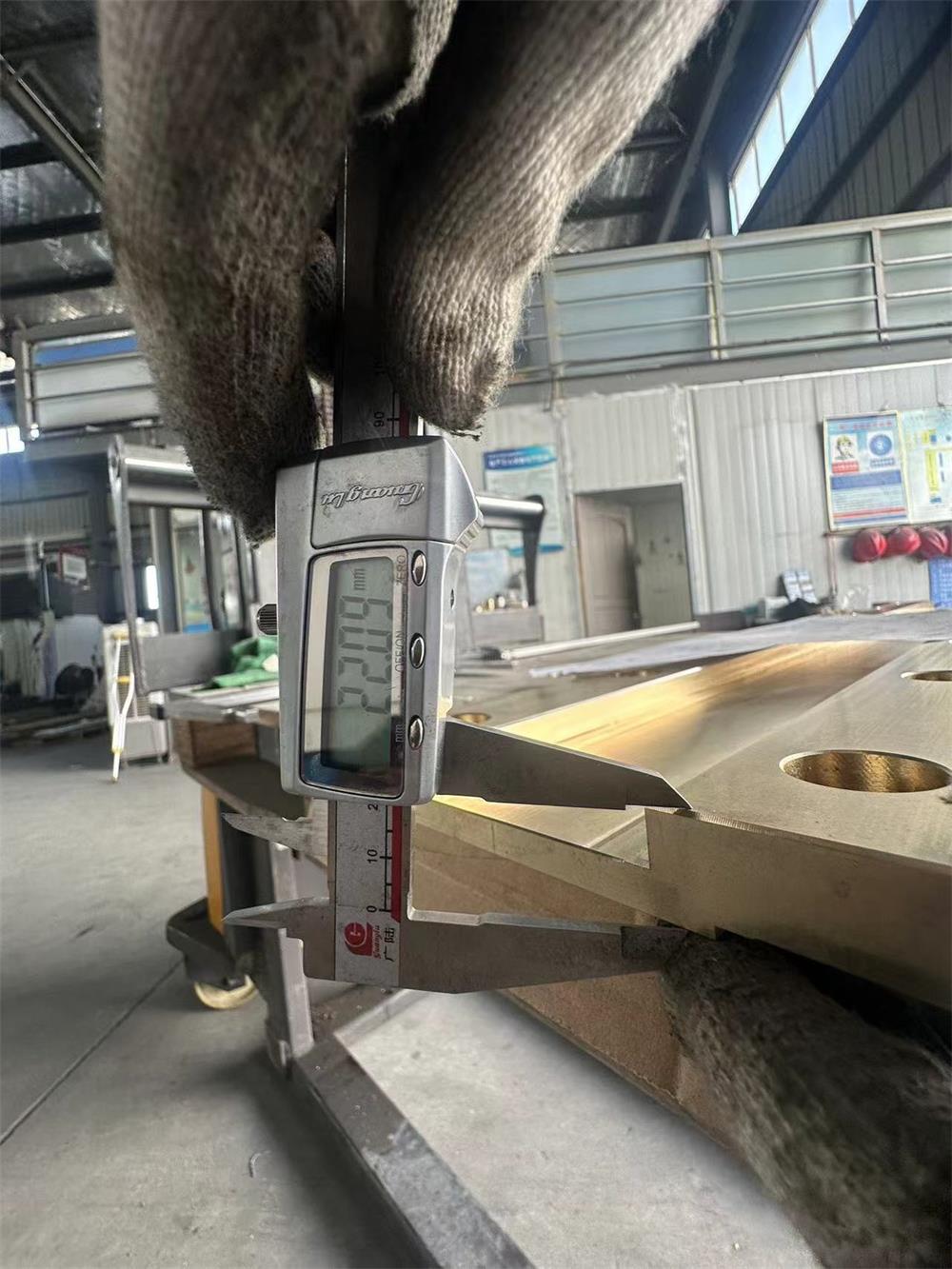

Size Certificate with Pictures
Material Certificate
Both items Material of the brass and copper guides are C86100.

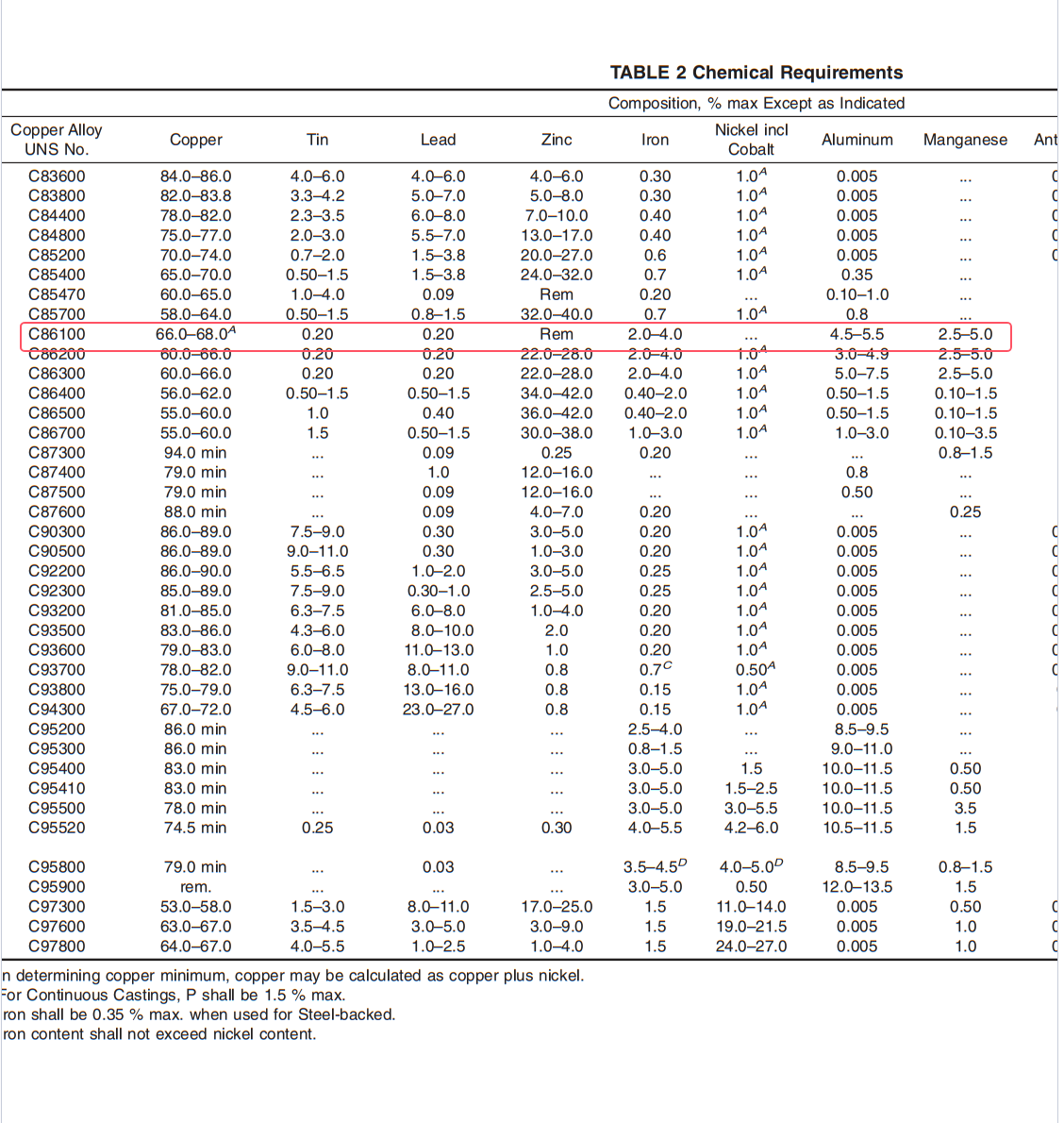

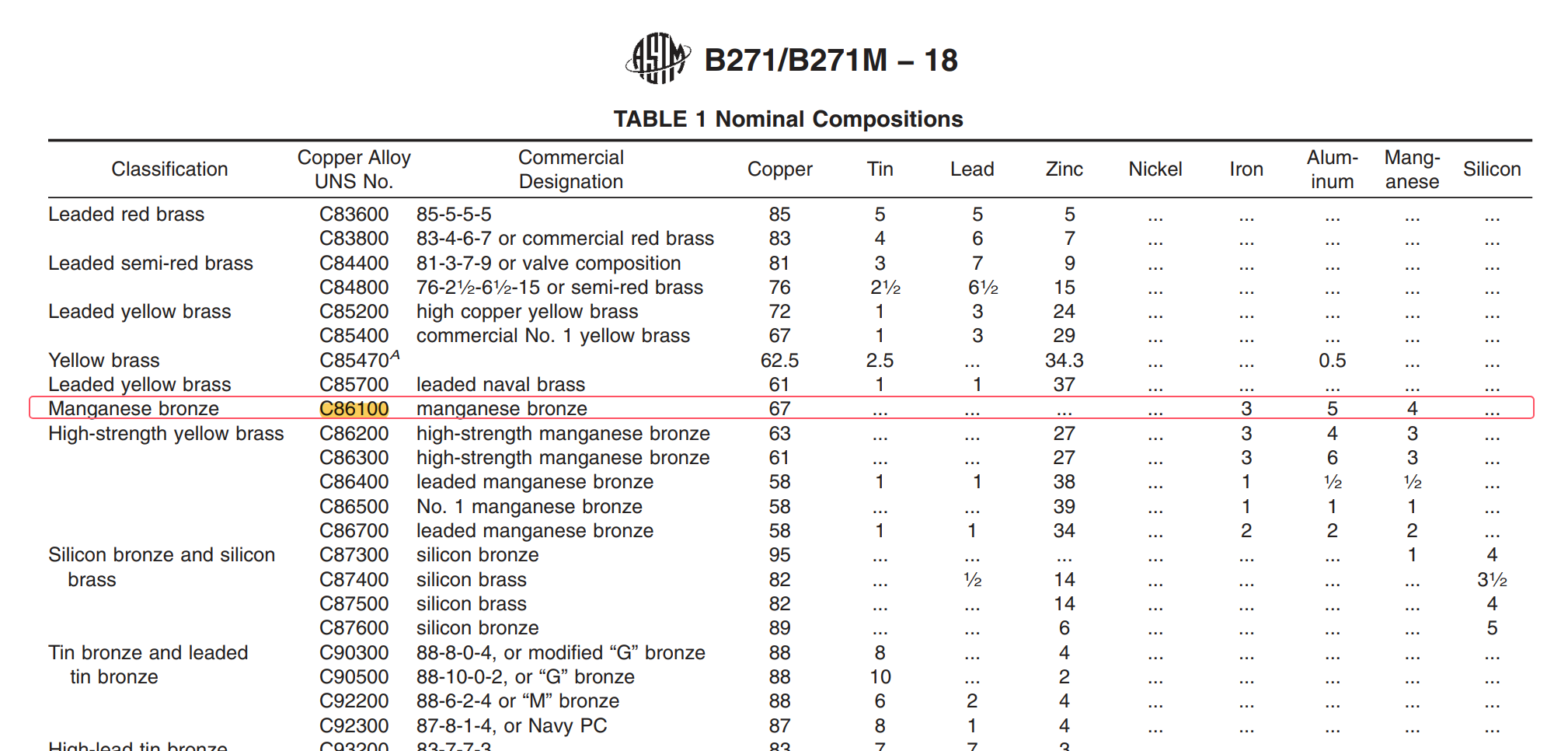

Material composition required

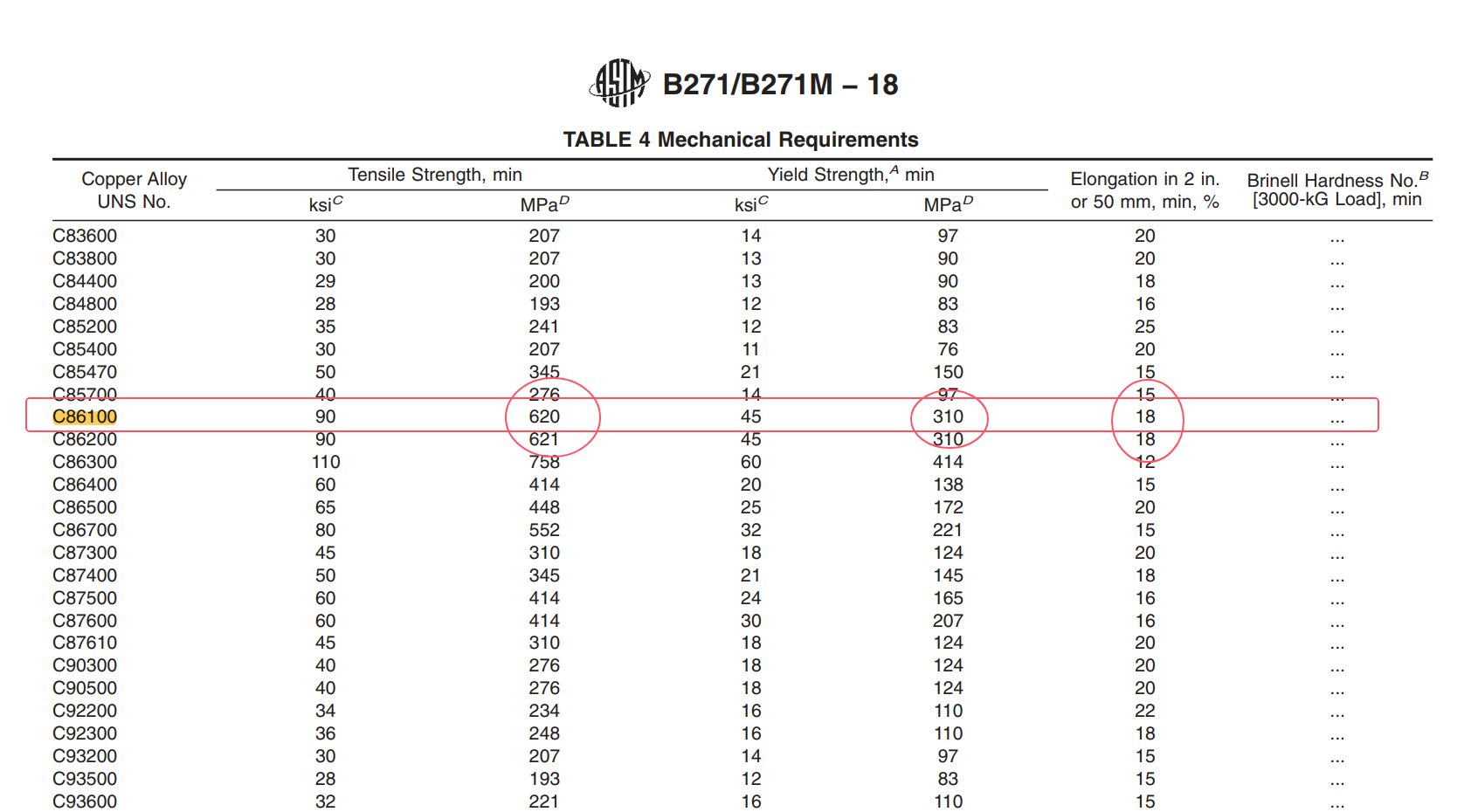

Mechanical Property Required

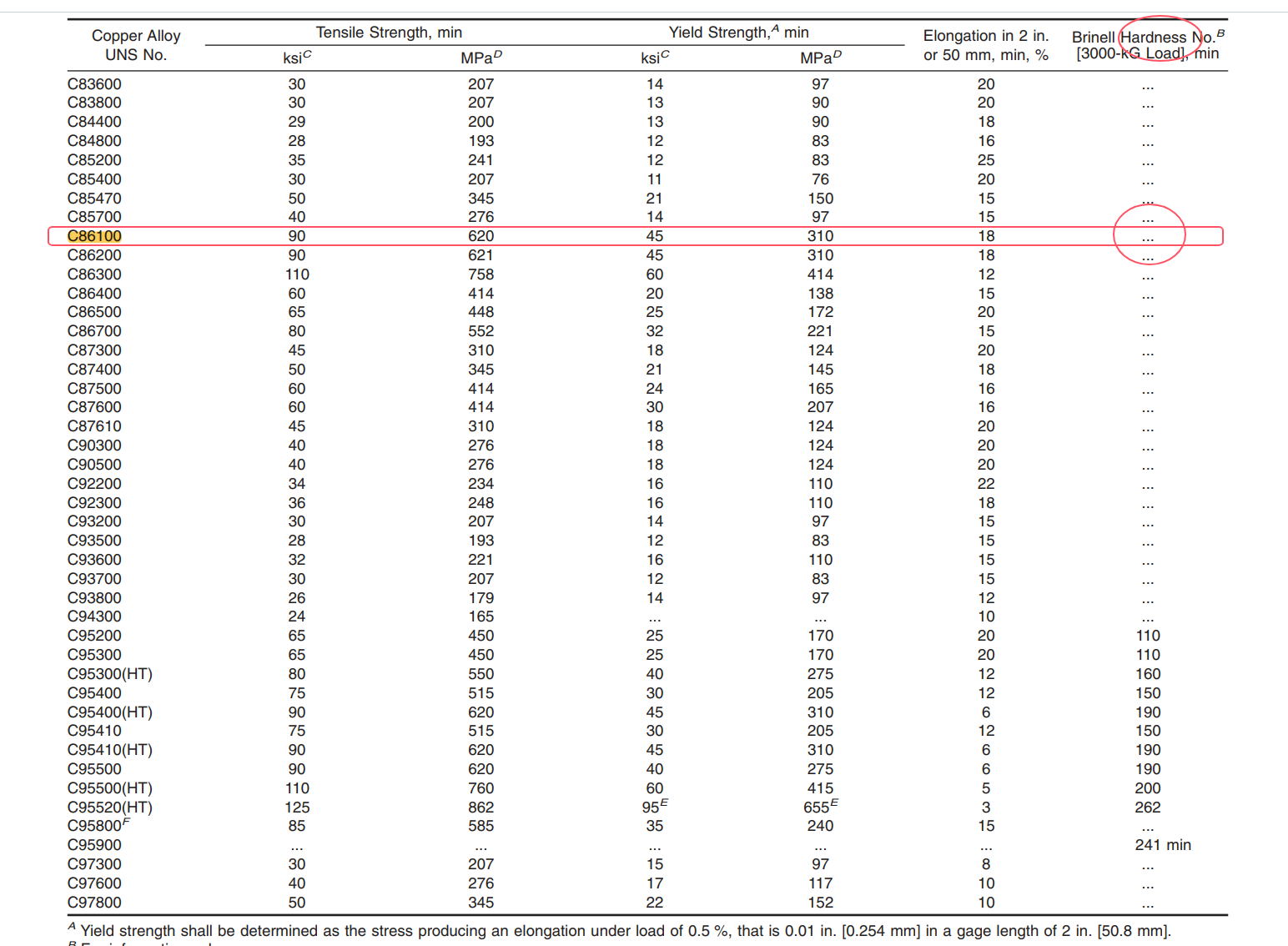

Hardness Required
The agreed hardness range was HB 175–230. The hardness requirement was confirmed before production.
Our Mill Material Certificate
We sent one test bar in the package for our client’s material testing.
We manufacture custom brass and copper-alloy guides according to customer drawings, including material review, casting, CNC machining, hardness confirmation, dimensional inspection, material certificates, and export packing.
For OEM projects involving copper-alloy parts together with steel components, plastic parts, rubber products, surface treatments, or assemblies, explore our broader custom industrial parts manufacturing capabilities.
