Project Background
This was a repeat-order project for an oilfield drilling equipment customer in Singapore.
The Insert Bowl 6608 No.3 was manufactured from cast steel according to the customer’s drawing, dimensional requirements, inspection plan, and API-related technical specifications.
Because this is a safety-critical drilling-tool component, magnetic particle inspection was carried out at three production stages to identify relevant surface and near-surface discontinuities before shipment.
The insert bowl was supplied without painting because the customer planned to conduct one additional MPI inspection before final finishing and installation.
For OEM drilling-tool projects requiring cast steel parts, CNC machining, heat treatment, non-destructive testing, coatings, fasteners, or assembled oilfield components, explore our broader custom industrial parts manufacturing capabilities.
Insert Bowl 6608 No.3 for Oilfield Drilling Equipment
This project involves the manufacturing of an Insert Bowl 6608 No.3 used in oilfield drilling equipment. Insert bowls are key components in rotary table systems and are used together with slips to securely hold drill pipes, casing, and tubing during drilling operations.
The insert bowl works together with slips to support drill pipe, casing, or tubing during drilling operations. The component required controlled cast steel quality, critical dimensions, contact geometry, and staged inspection according to the customer’s approved drilling-tool requirements.
The part was produced according to client specifications for use in oilfield drilling tools and requires compliance with API standards to meet the safety and performance requirements of the oil and gas industry.
We manufacture custom oilfield drilling-tool components according to customer drawings and technical specifications, covering foundry production, CNC machining, heat treatment, inspection, surface finishing, and export packing.
To review our casting, forging, CNC machining, heat treatment, plastic and rubber processing, and other production capabilities, explore our complete custom manufacturing processes.

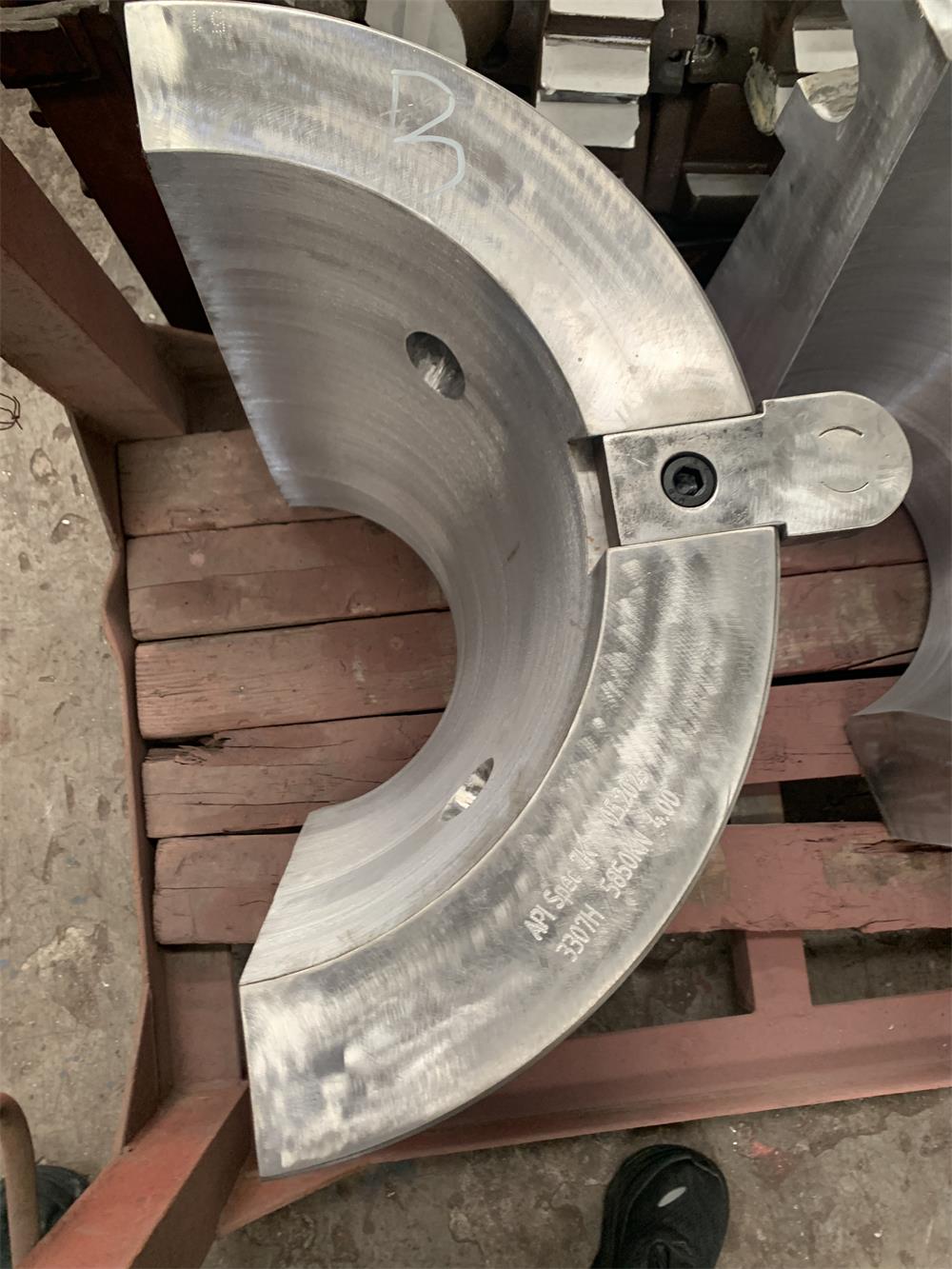

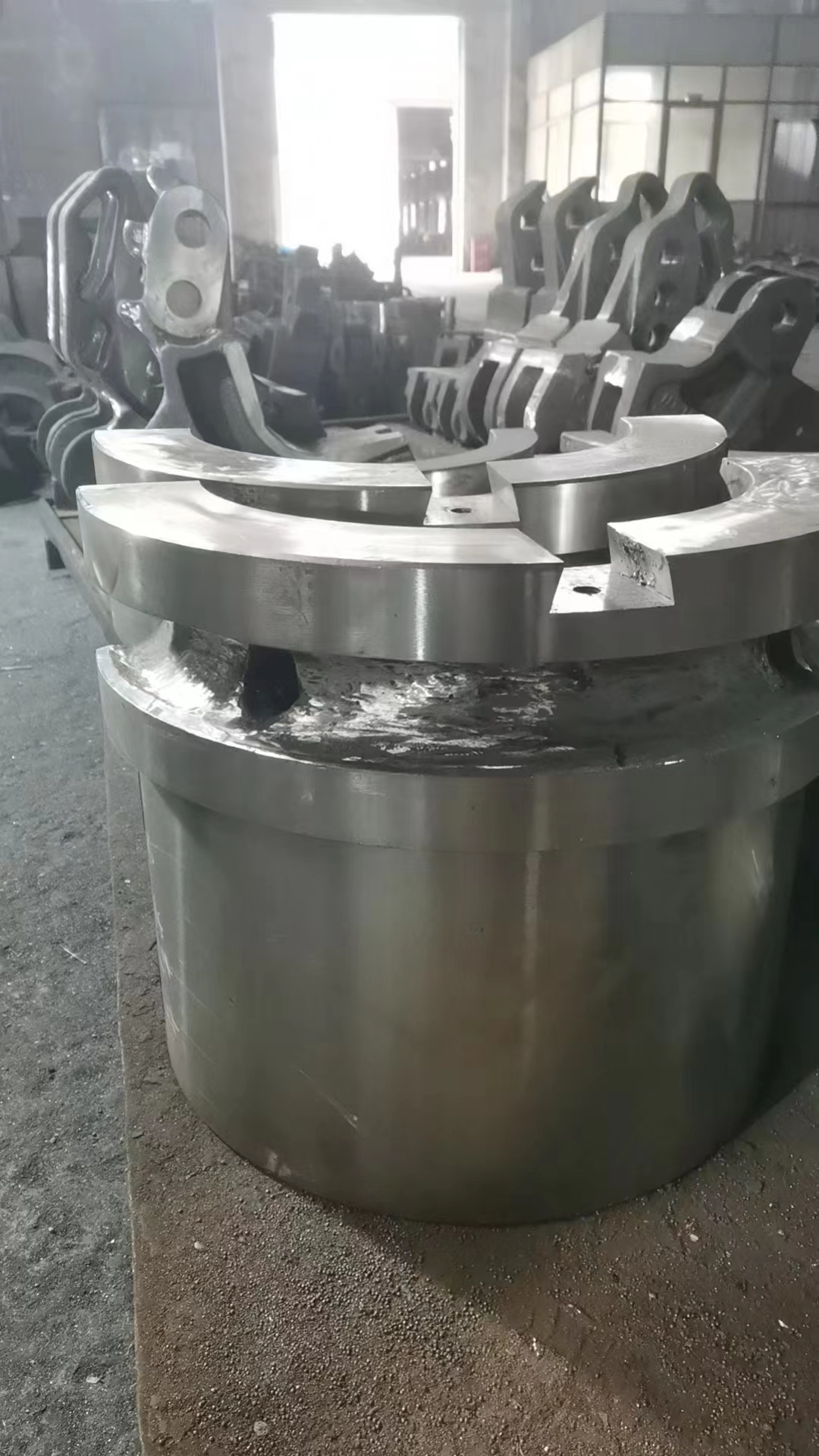

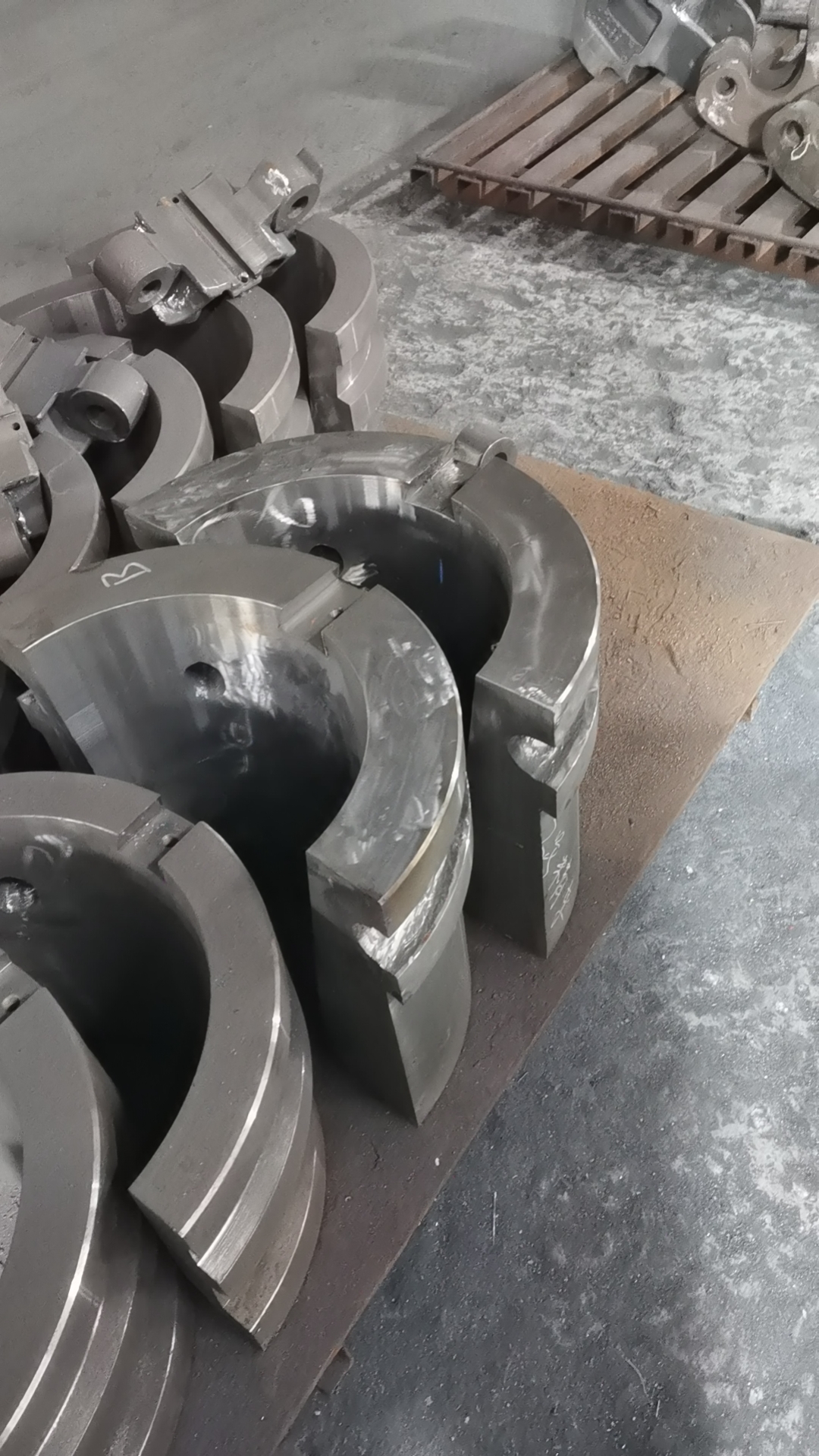

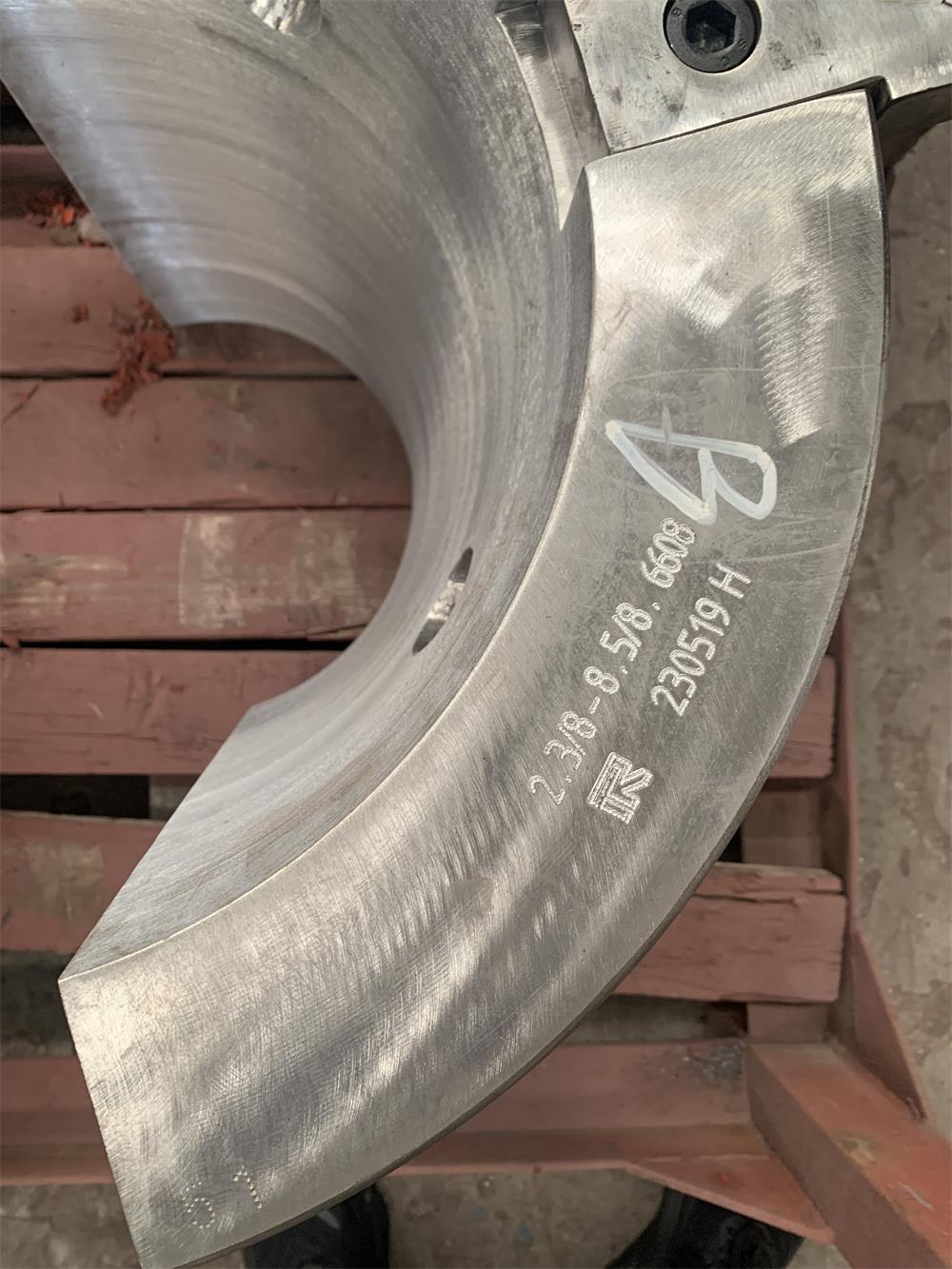

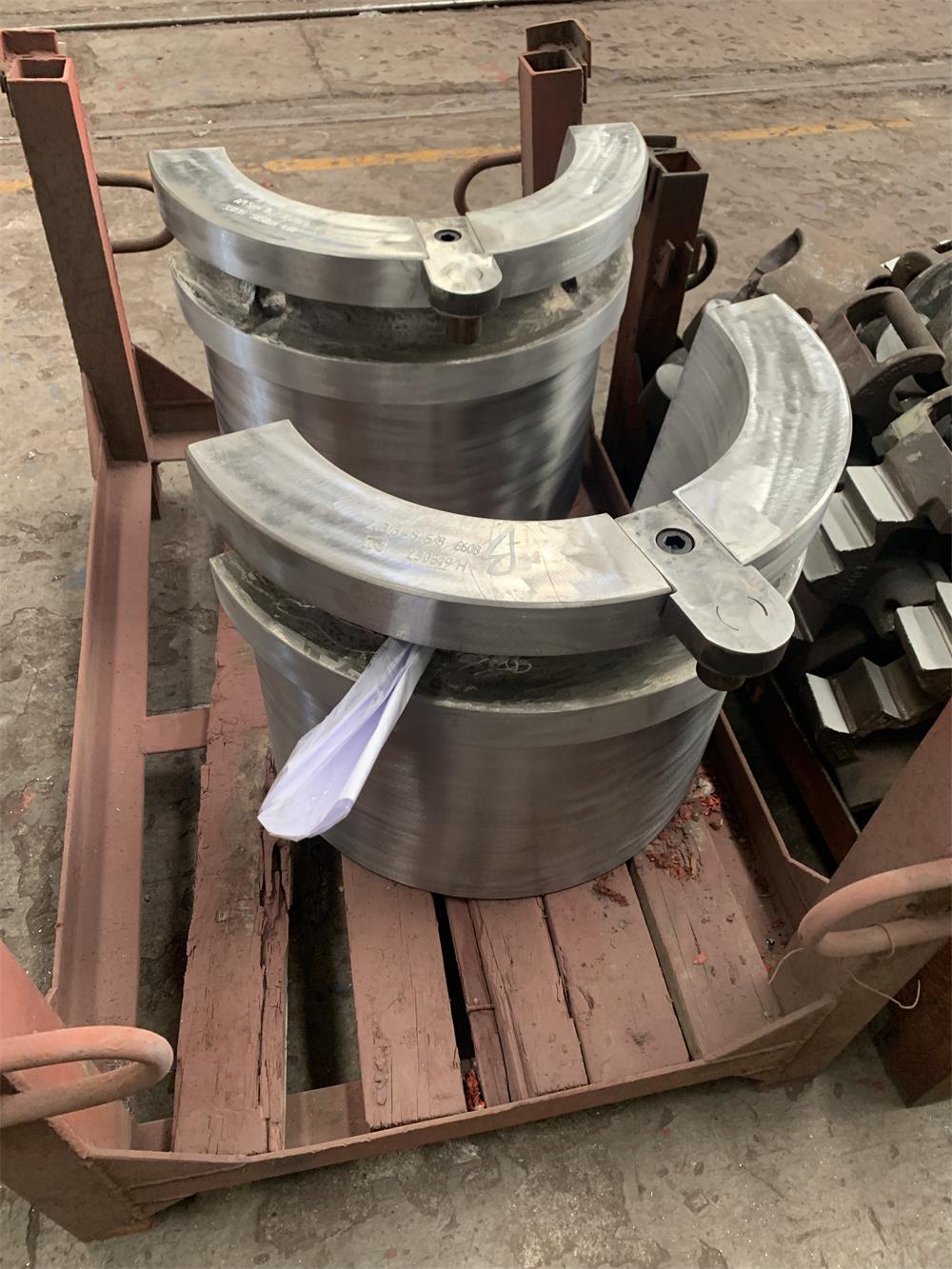

The photos show the Insert Bowl 6608 No.3 before painting and final customer-side inspection. The casting surface, contact areas, dimensions, and MPI results were checked according to the confirmed inspection plan.
Final Packing Picture
The unpainted insert bowl was securely packed for shipment to Singapore, allowing the customer to complete the final MPI inspection and finishing before installation.
