Powder metal sintering, Yutung worked with a Powder Metal Sintering metallurgy company that is a professional manufacturer of powder metallurgy pressing(PM) and metal injection moulding (MIM). We are one solution provider and metal powder and metal powder manufacturer. We provide customers with high volume, high precision, high density, high strength, high-density tungsten, alloys with high quality and complex shapes and good mechanical properties.
Our factory has invested USD ten million and has more than 200 employees. At the same time, it has a vacuum degreasing furnace production line produced in Shimadzu, Japan and a continuous sintering furnace production line made in Germany CREMER. Our technical team is established by a senior chief engineer who has been engaged in pressing and metal powder injection moulding for over ten years in German companies. We can give you a good solution and quality insurance.
Application: suitable for aerospace, aviation, military, petroleum drilling, electrical instrumentation, medicine, electronics, rocket nozzles, weapons, missiles, light sources, automobiles, motorcycles, power tools, garden tools, machinery, fishing gear, sewing machines, Textile machines, compressors, communications, optical fibre, mechanical parts, sintered bronze bearings, sintered bronze bush, powdered metal gears, sintered bushes and other metal powder products.
Powder Metal Sintering Metallurgy PM
PM’s high precision forming ability produces precision parts with the final shape, complex functions, and precision dimensions, it is finished without machining. PM is particularly suitable for producing large series with narrow tolerances. By producing parts with a uniform structure PM manufacturers are able to make products that are more consistent and predictable across a wide range of applications. Due to its process flexibility,, PM allows the tailoring of the product’s physical properties to meet your specific property and performance requirements. Good pressure and vibration absorption properties, as well as unique properties such as hardness and wear resistance, are a feature of the PM component.
PM Powder Metal Process Flow
Metal injection molding(MIM) Technology
Firstly, the solid metal or ceramic powder is uniformly kneaded with an organic binder to obtain a feed material. After granulation, an injection moulding machine is used to cure the feed material by injecting it into the mould cavity to obtain an injection under the condition of adding a thermoplastic resin (about 150° C.). Forming the billet, then removing the binder in the injection billet by chemical or thermal decomposition, and finally sintering the product through a vacuum furnace or an atmosphere furnace. After the part of the product is post-processed, it is subjected to a post-process to obtain the final shape and performance products.
Metal injection molding(MIM) Process
- The raw material powder used is usually between 1 and 20 microns;
- Low injection pressure, generally no more than 1000 psi;
- Low mould injection temperature, about 150C;
- Shrinkage of about 20% from the injected status to the sintered status;
- The final product density reaches 95%-100% of the theoretical density;
Powder injection moulding product's design principles:
- Uniform wall thickness
- Sintered support
- Corners avoid sharp corners, arc transitions
- Designed hole slots
- Can be designed as concave and subsidence
- Designed thread
- Consider ribs and connecting walls
- Can design knurling, printing, engraving trademark
- Select feed port shape and position
- Pay attention to recessed holes and weld marks
- Surface coating or plating
- Heat treatment
- Secondary processing

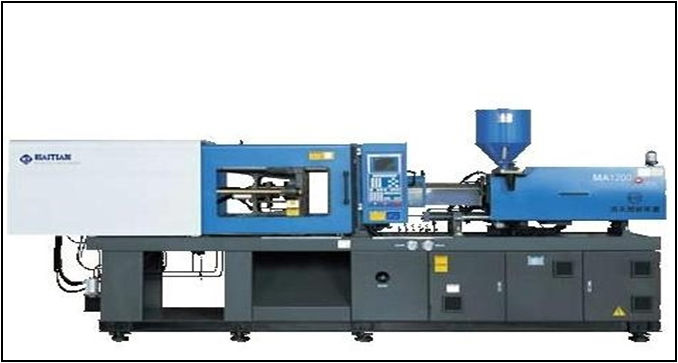

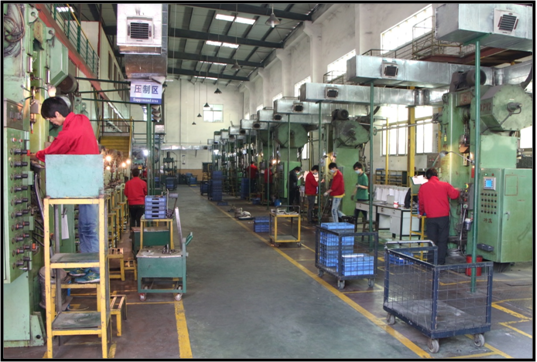

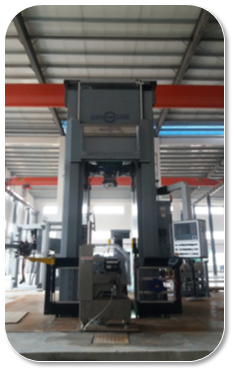

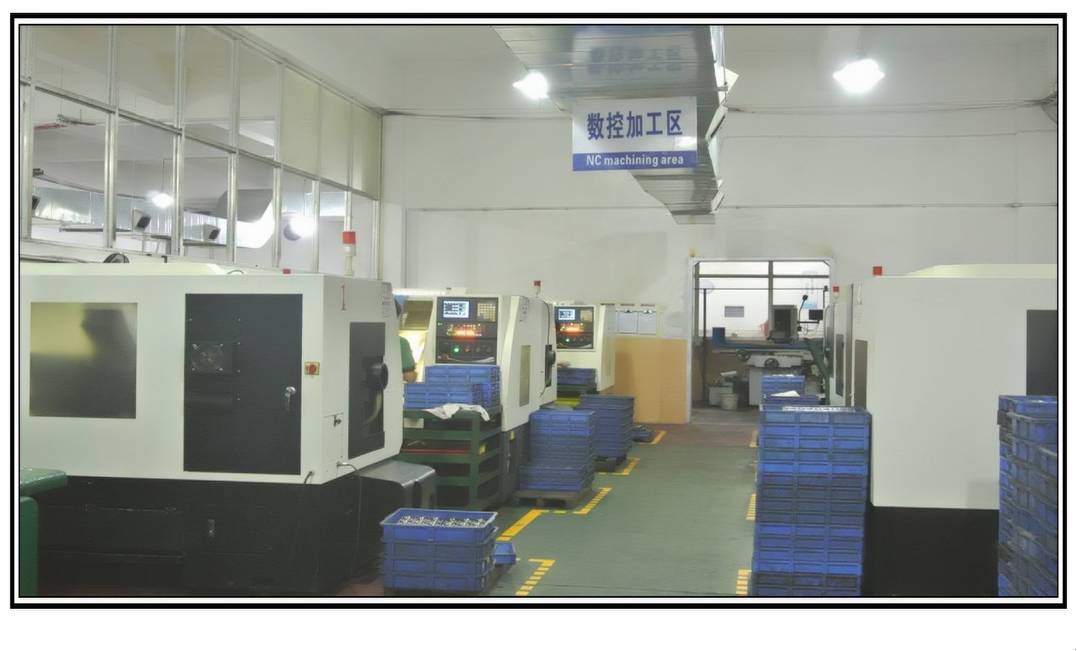

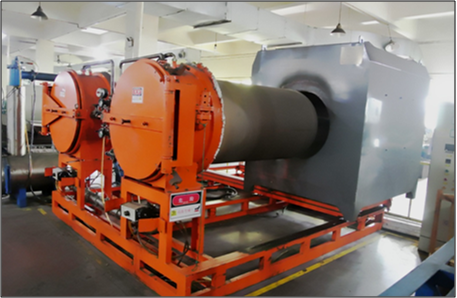

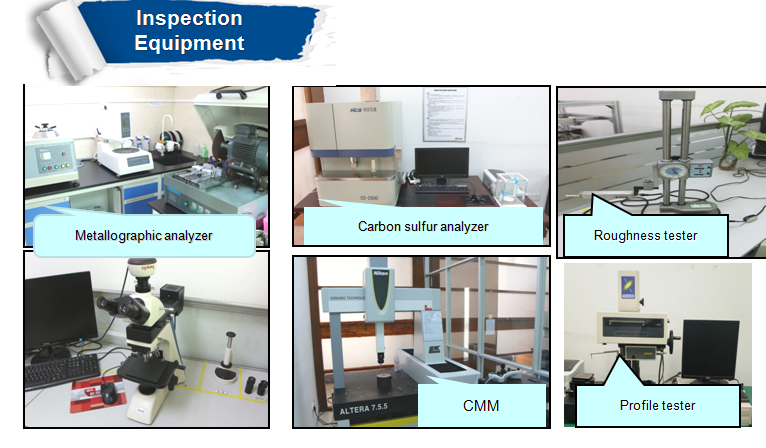

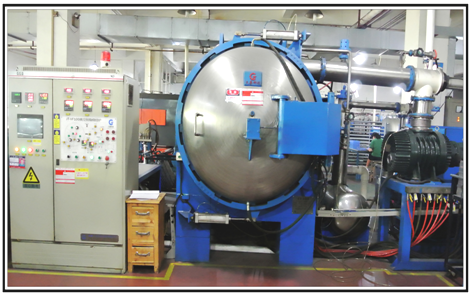

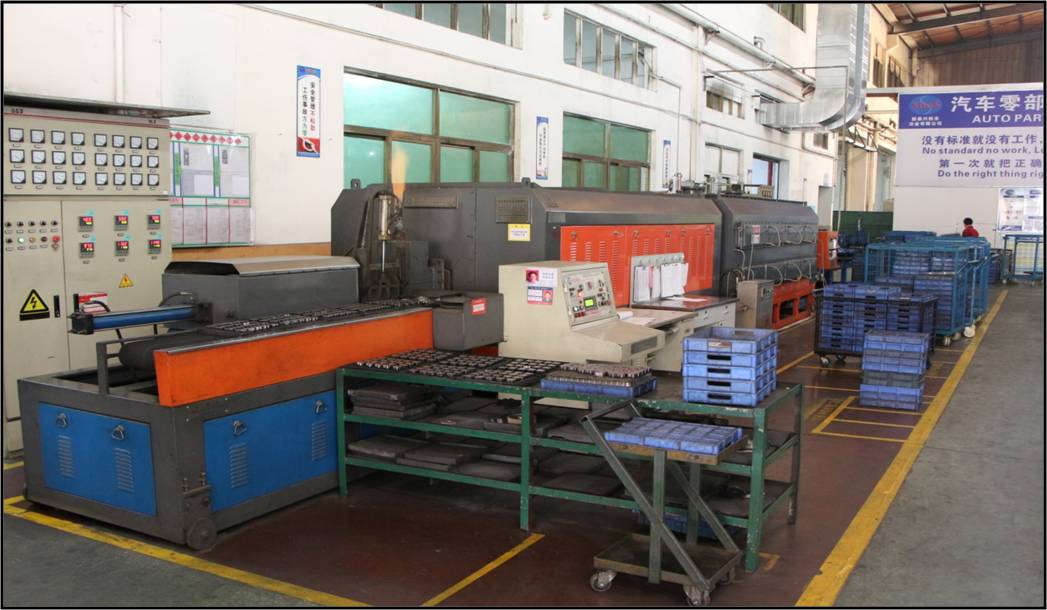

The equipment of our powdered metal PM MIM Sintering Injection Molding process service:

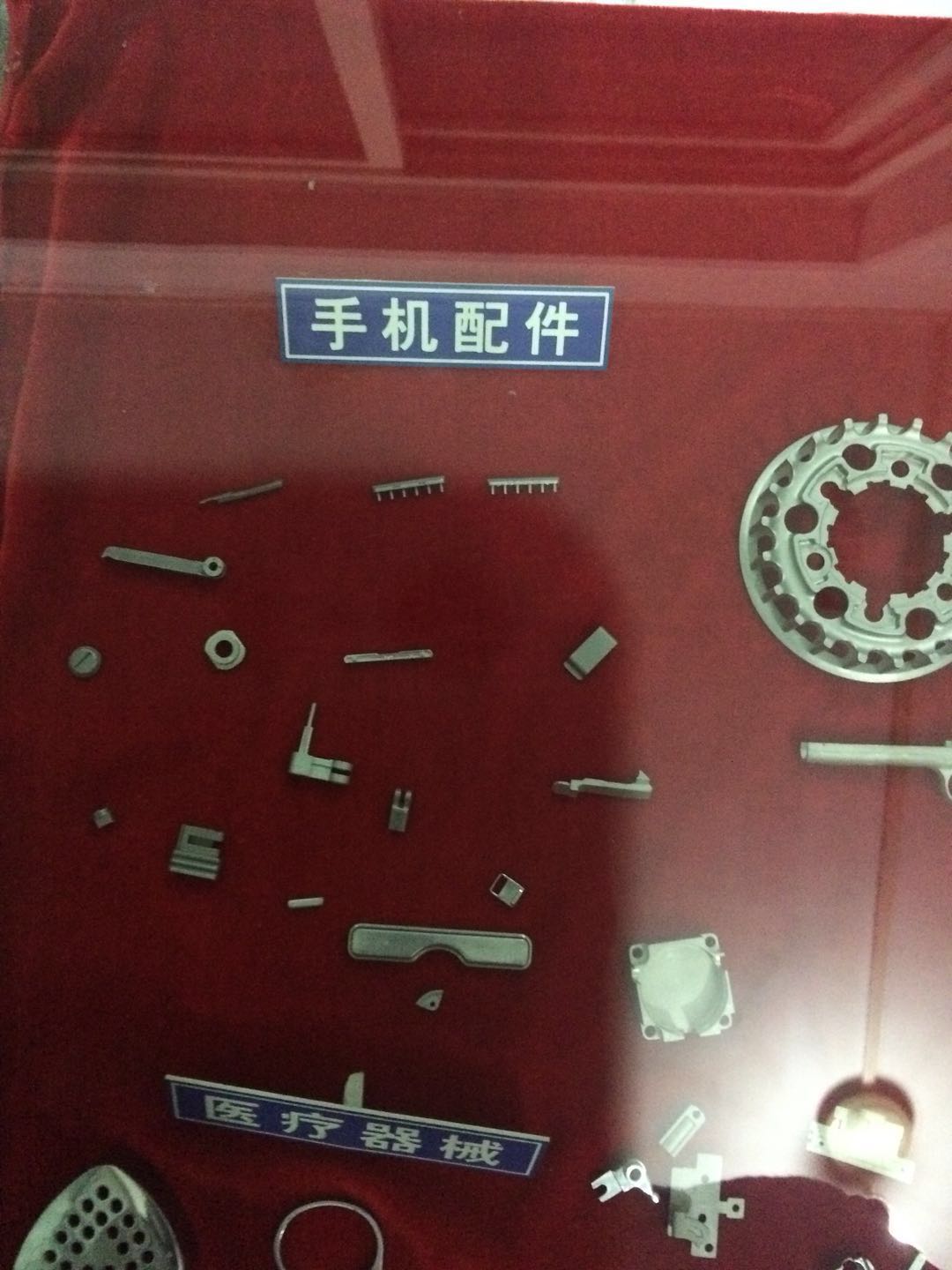

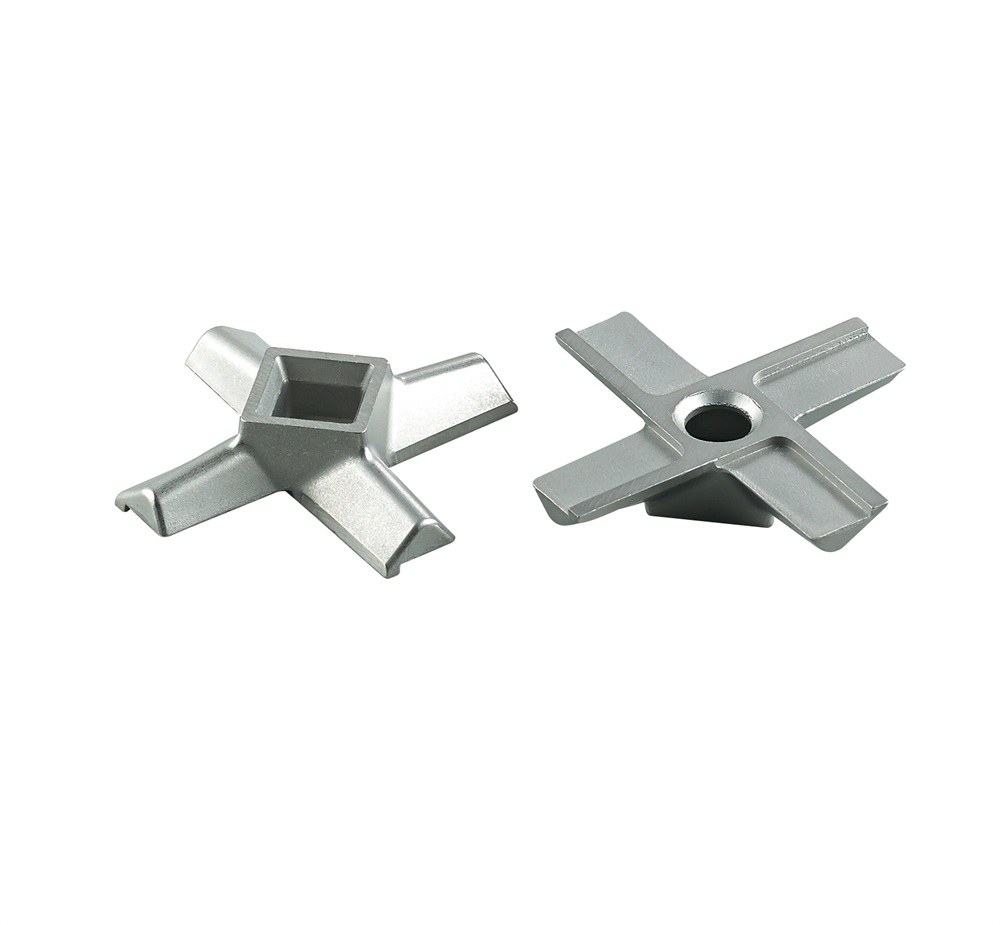

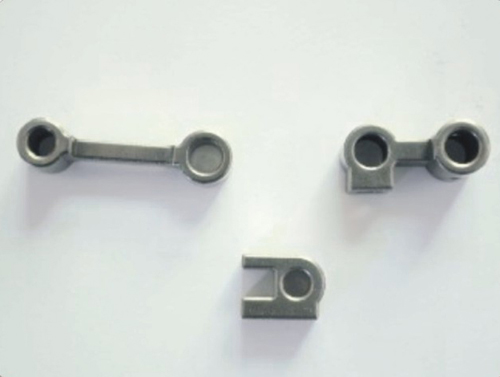

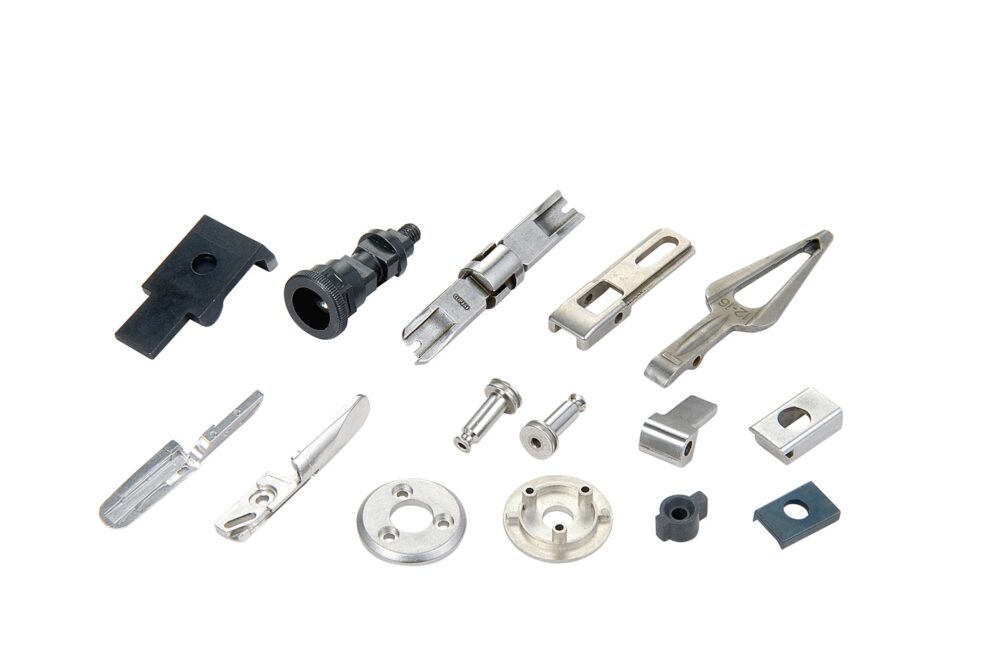

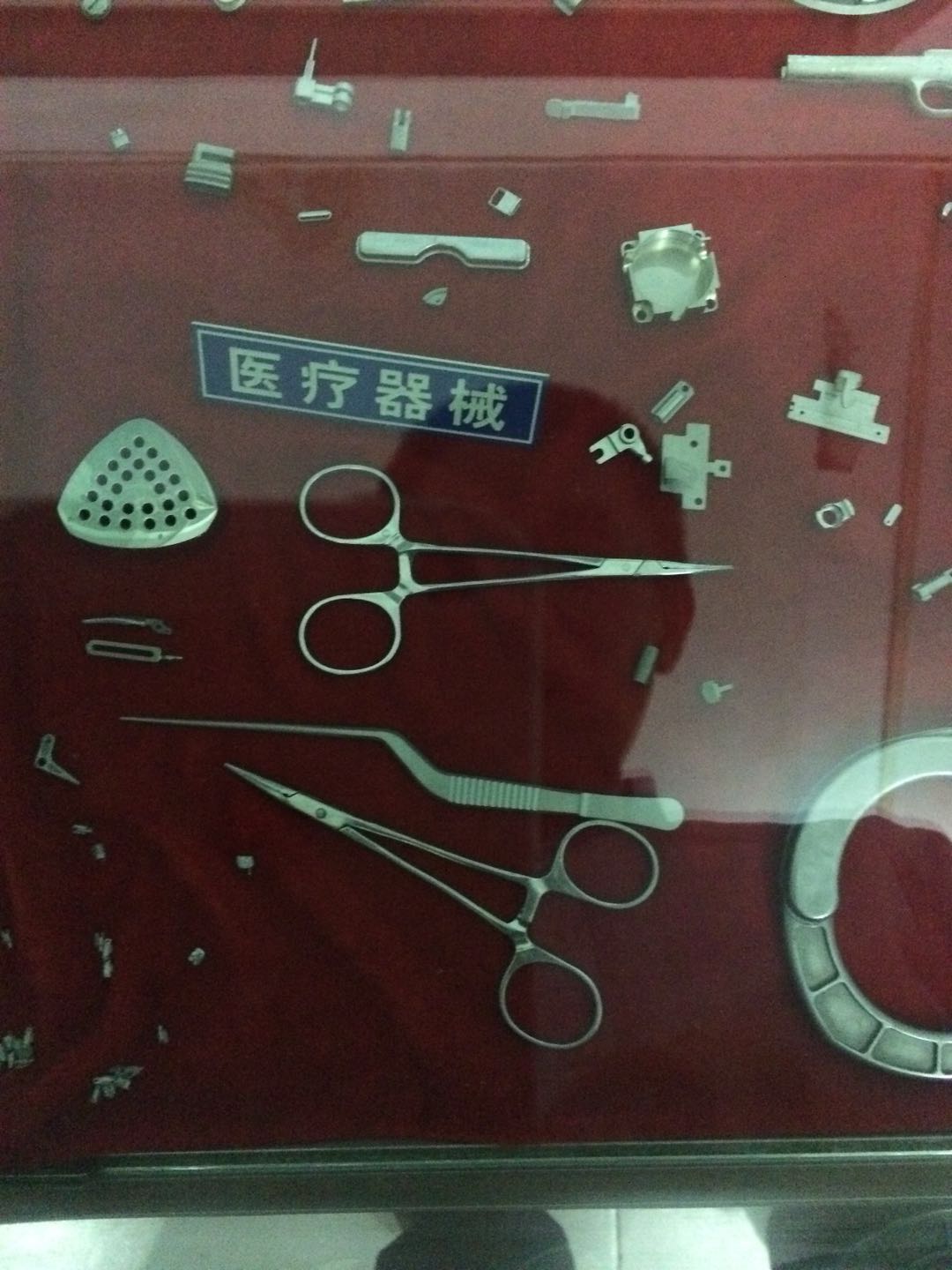

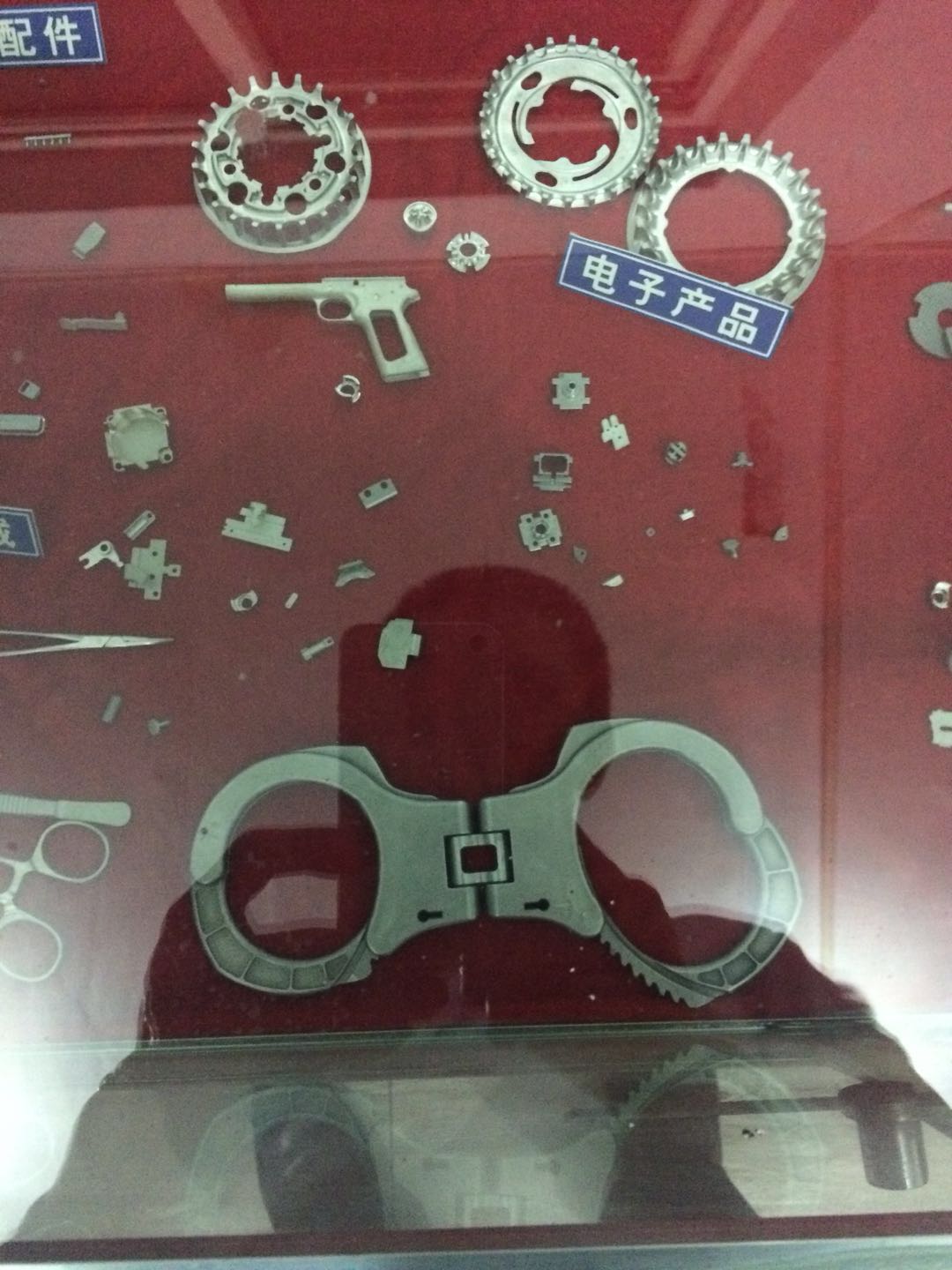

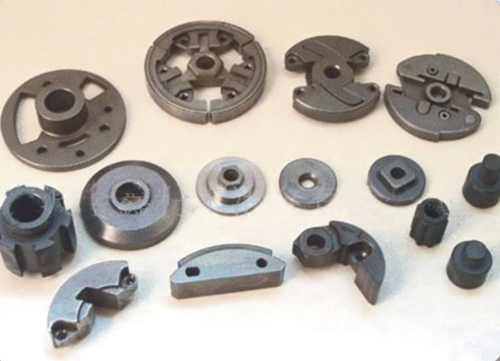

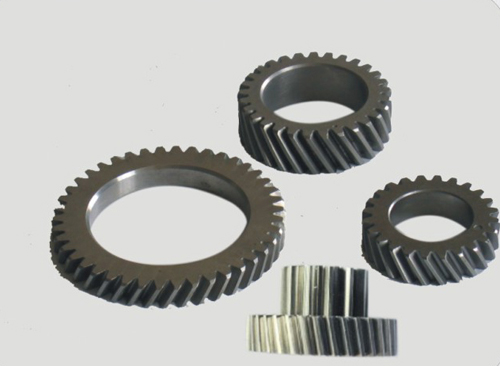

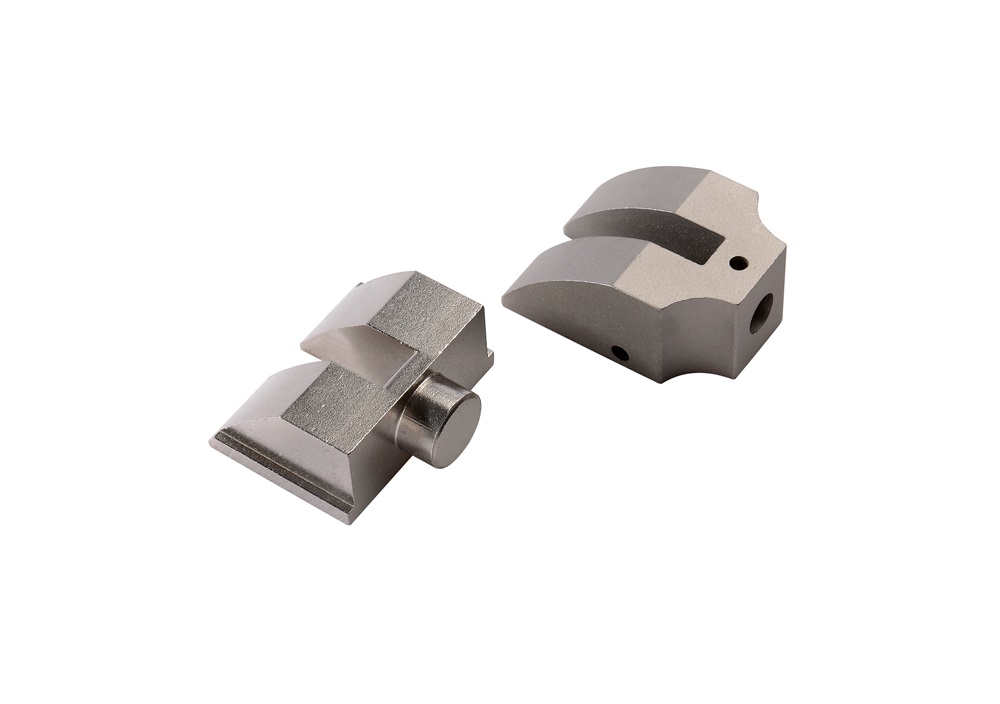

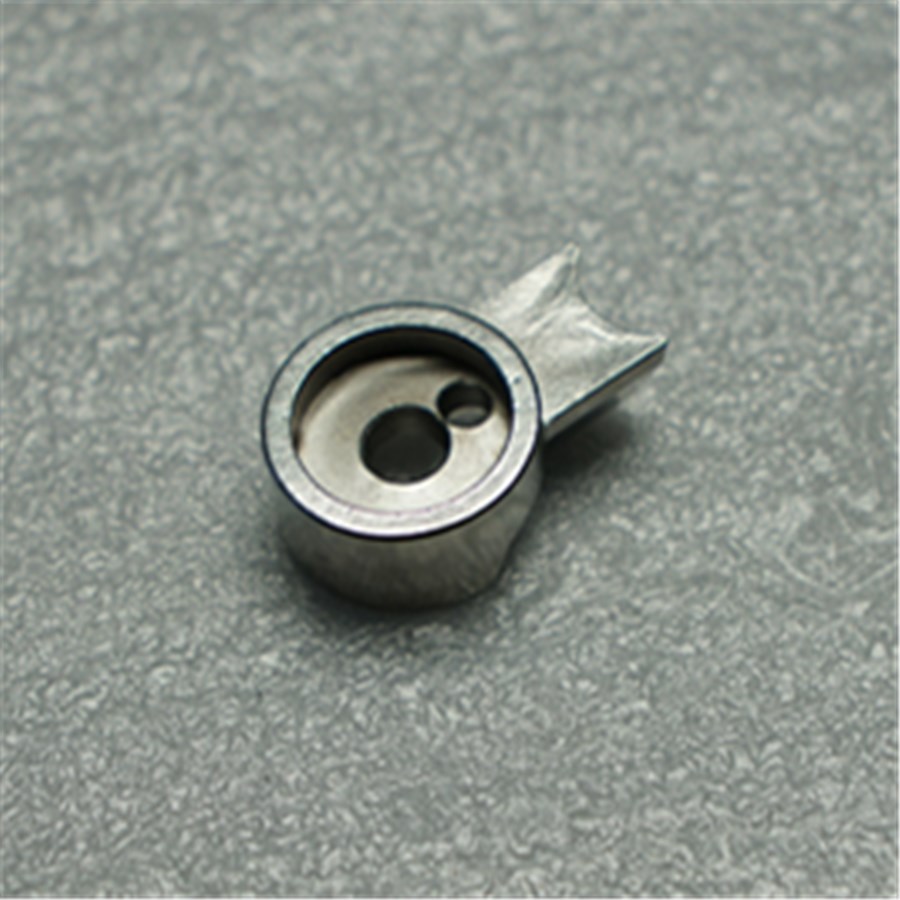

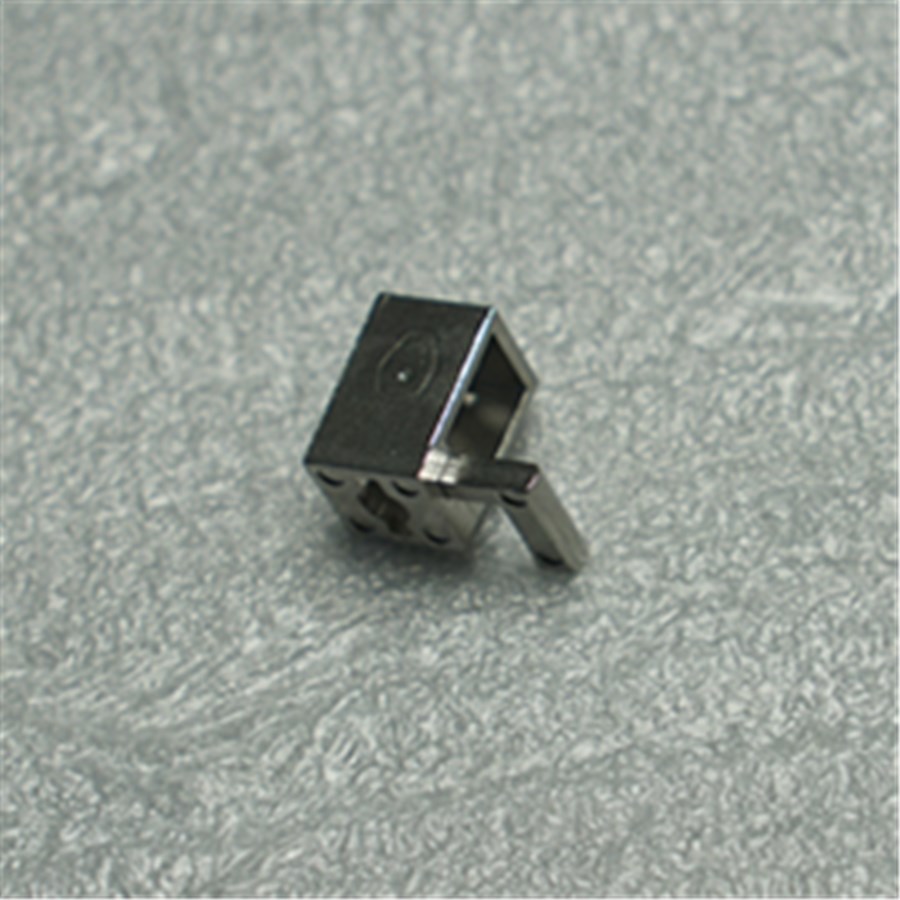

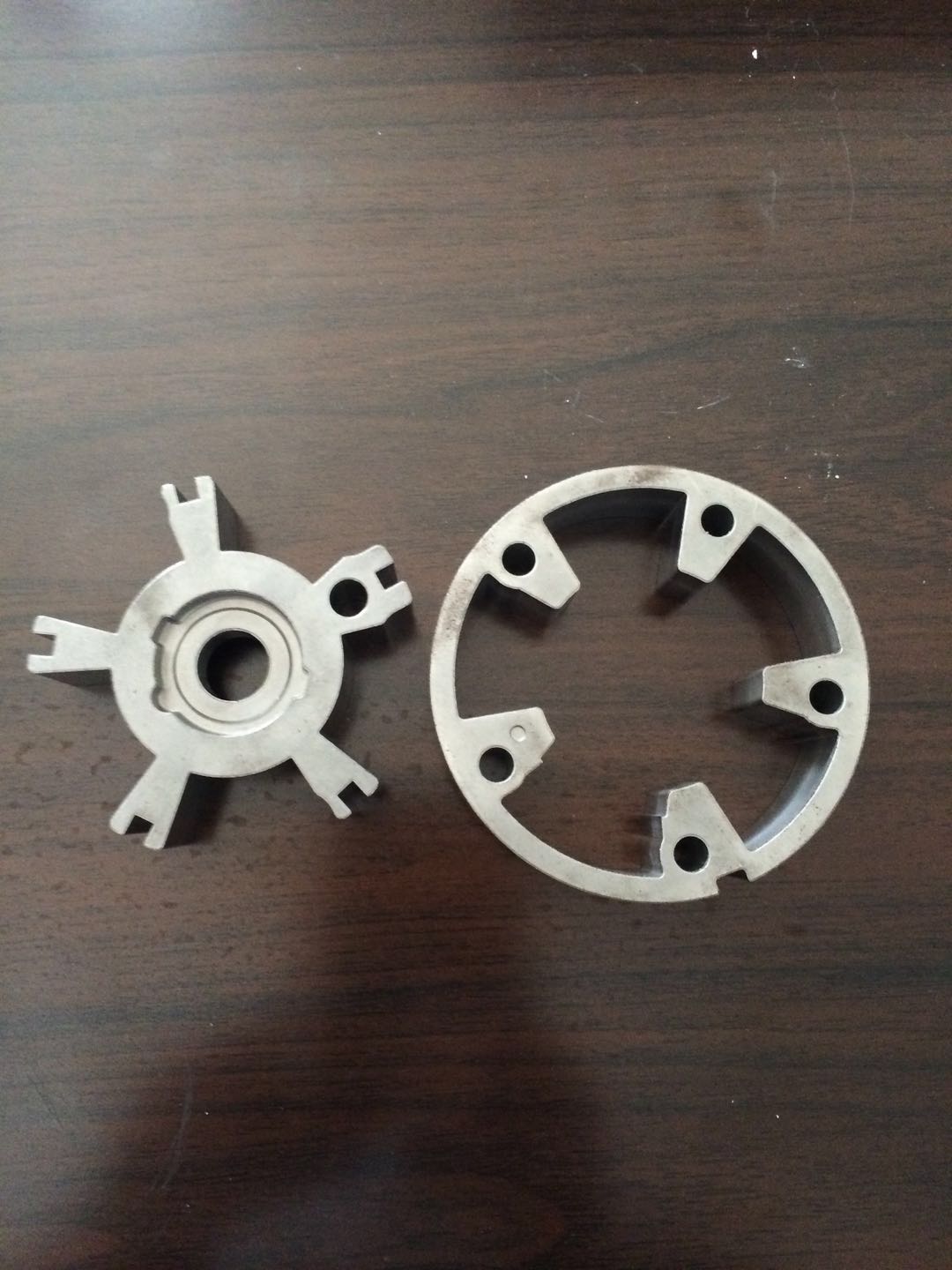

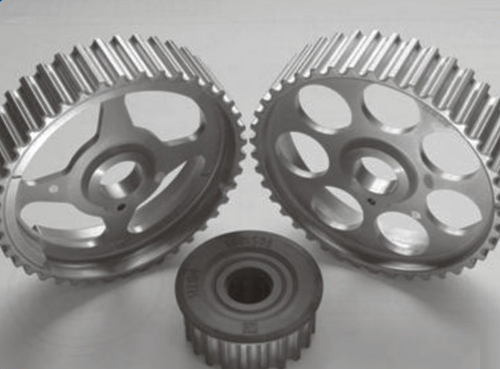

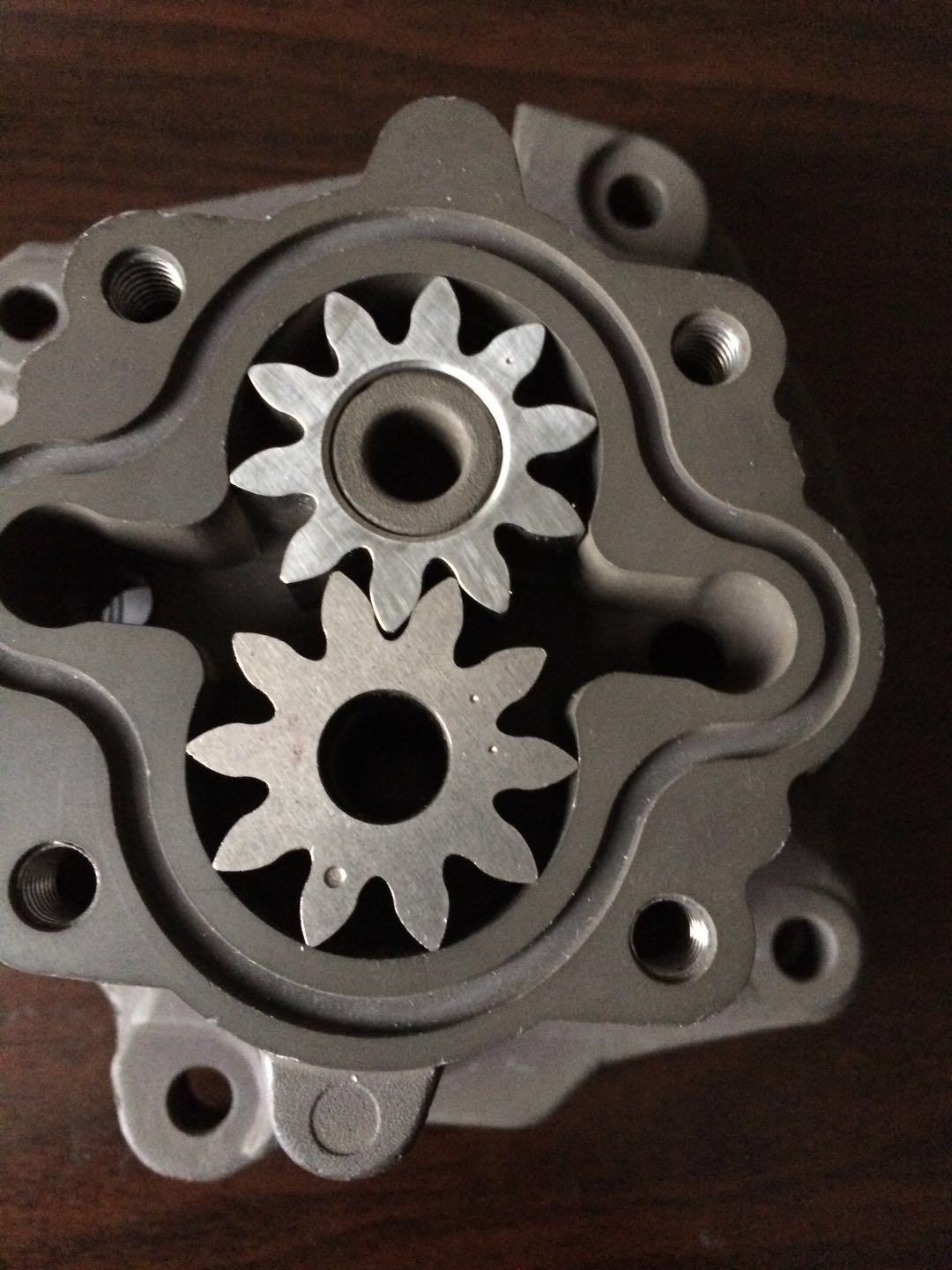

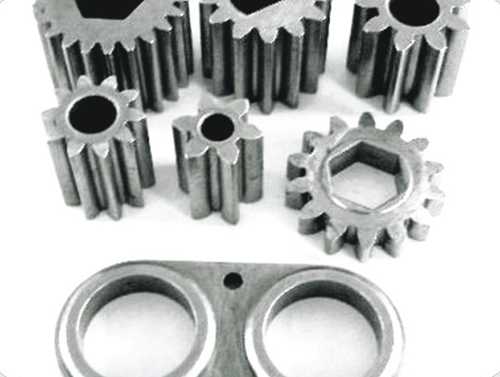

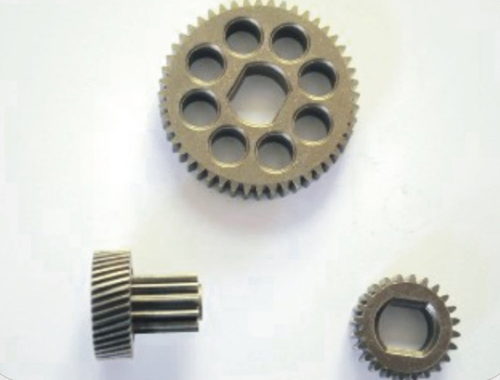

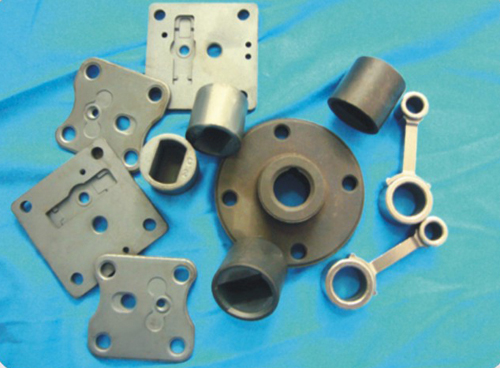

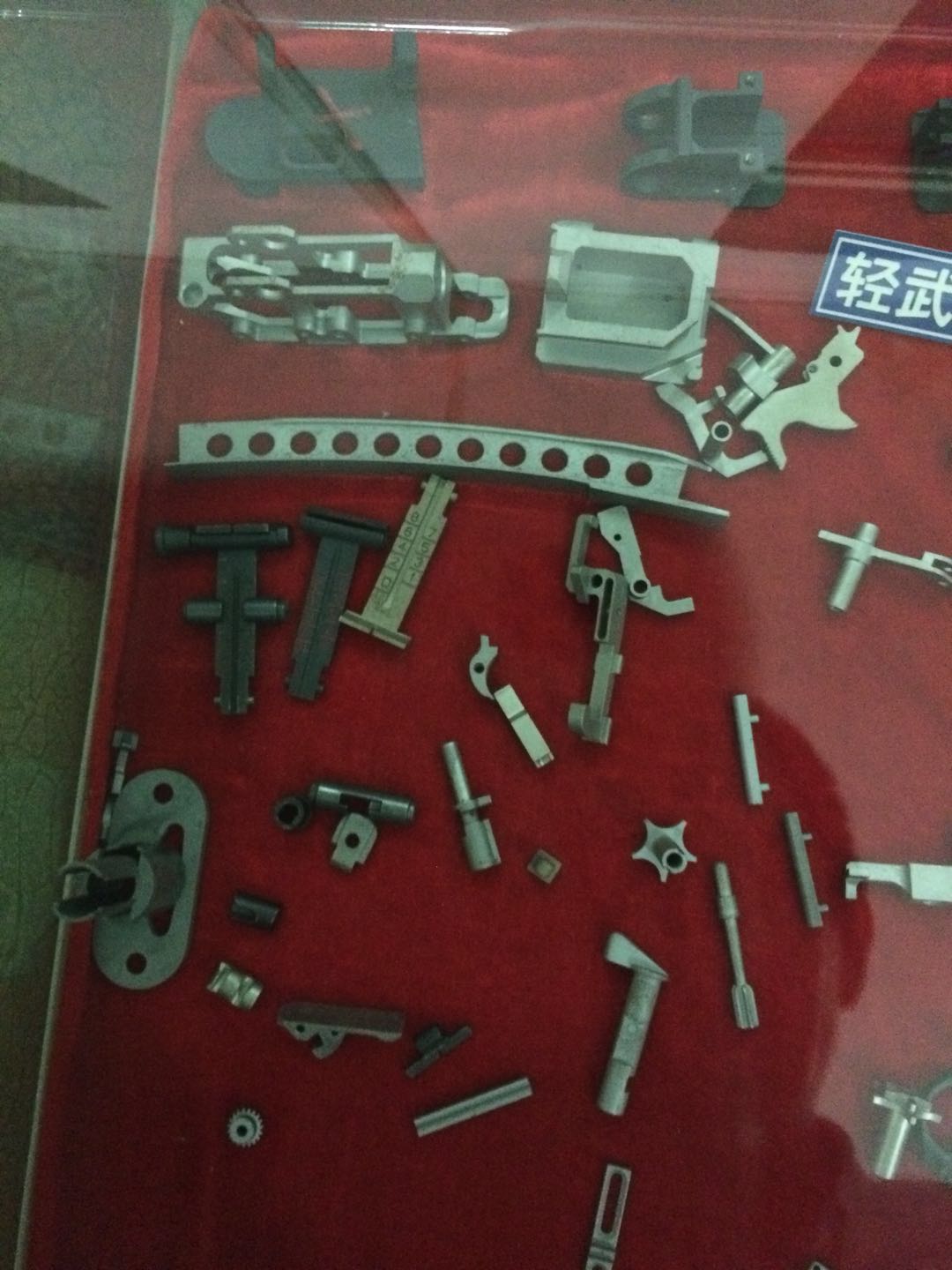

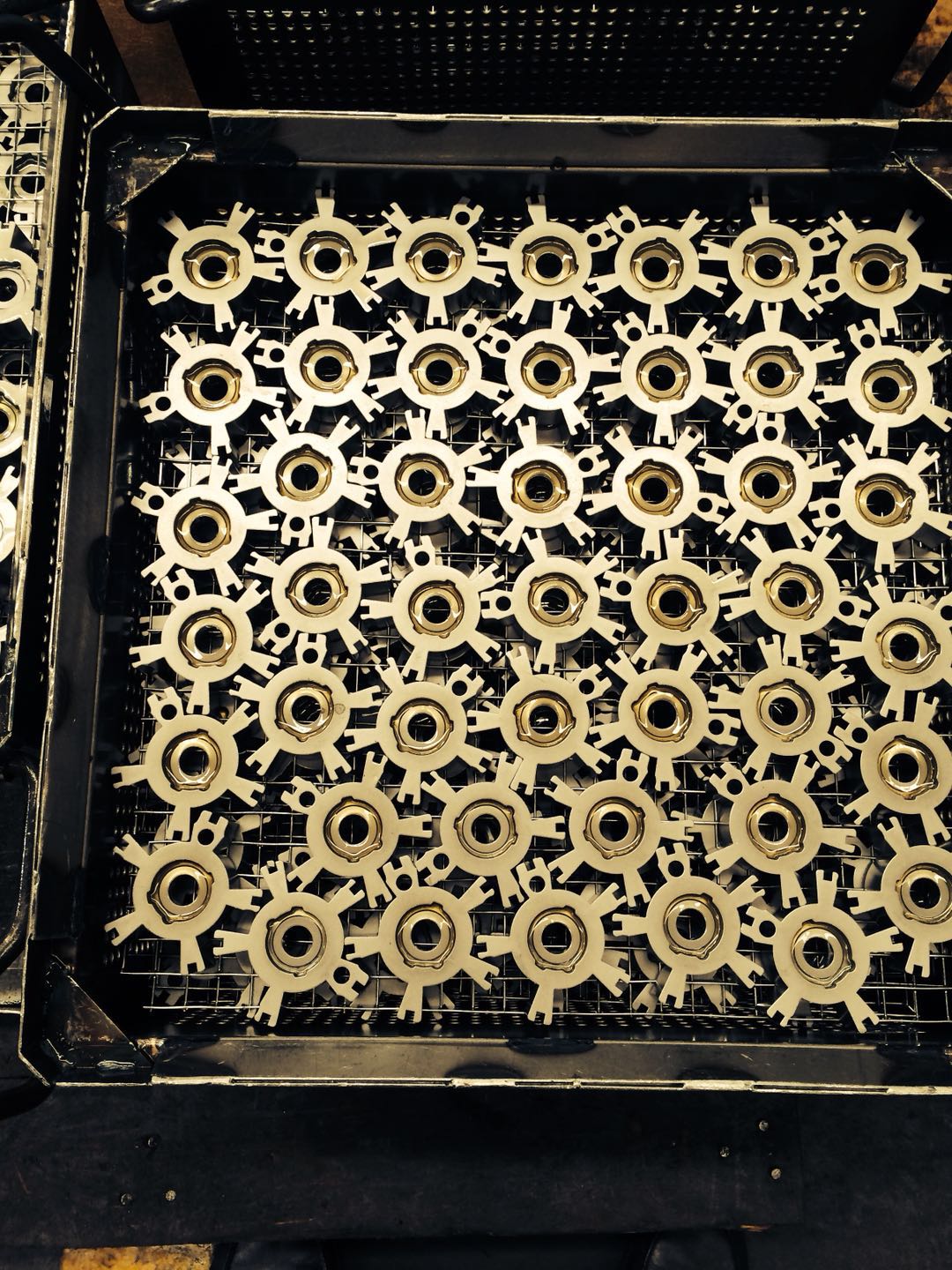

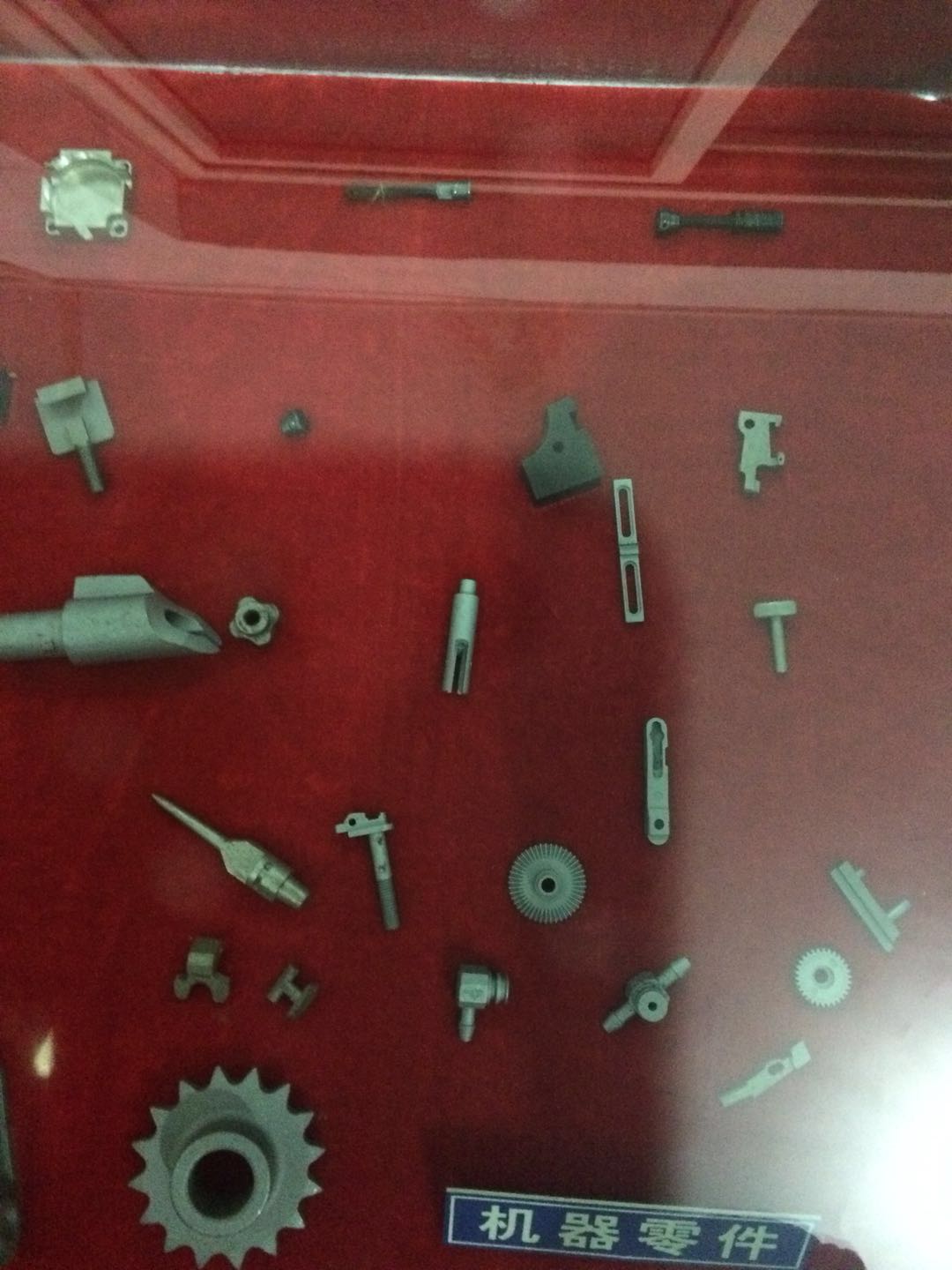

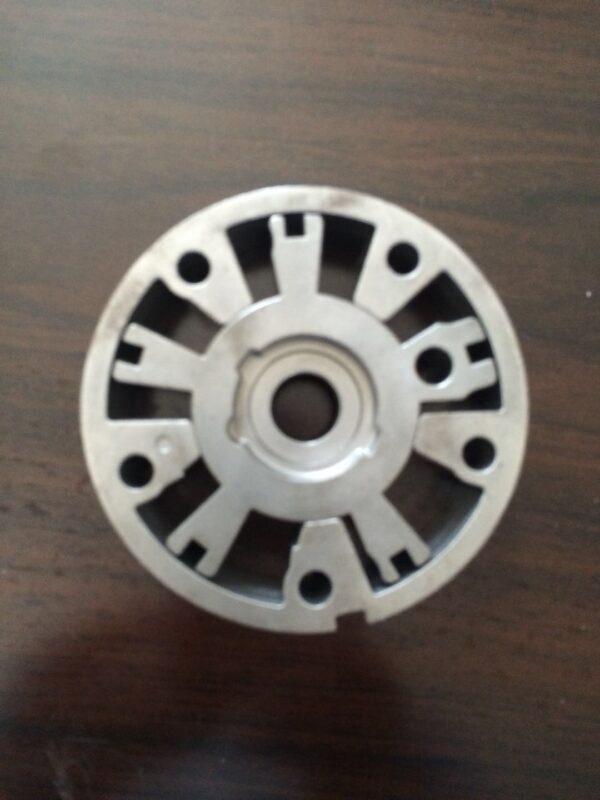

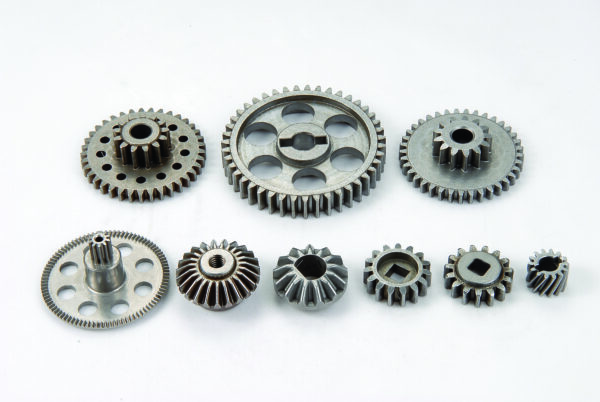

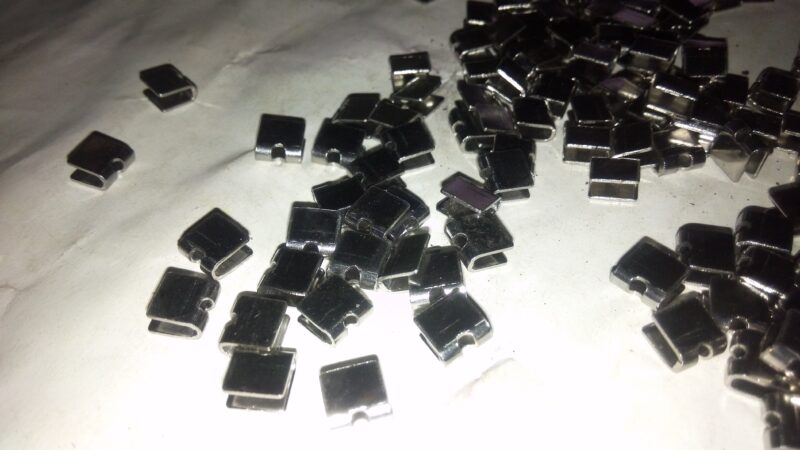

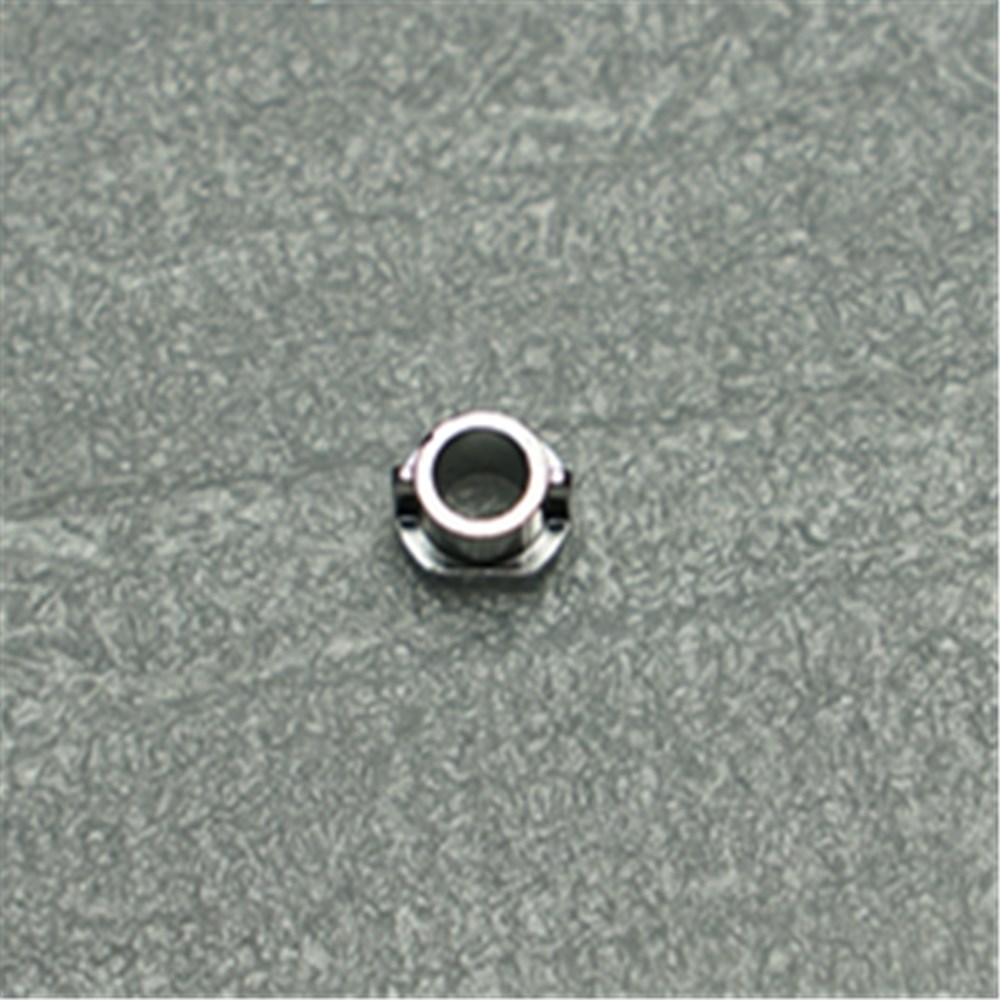

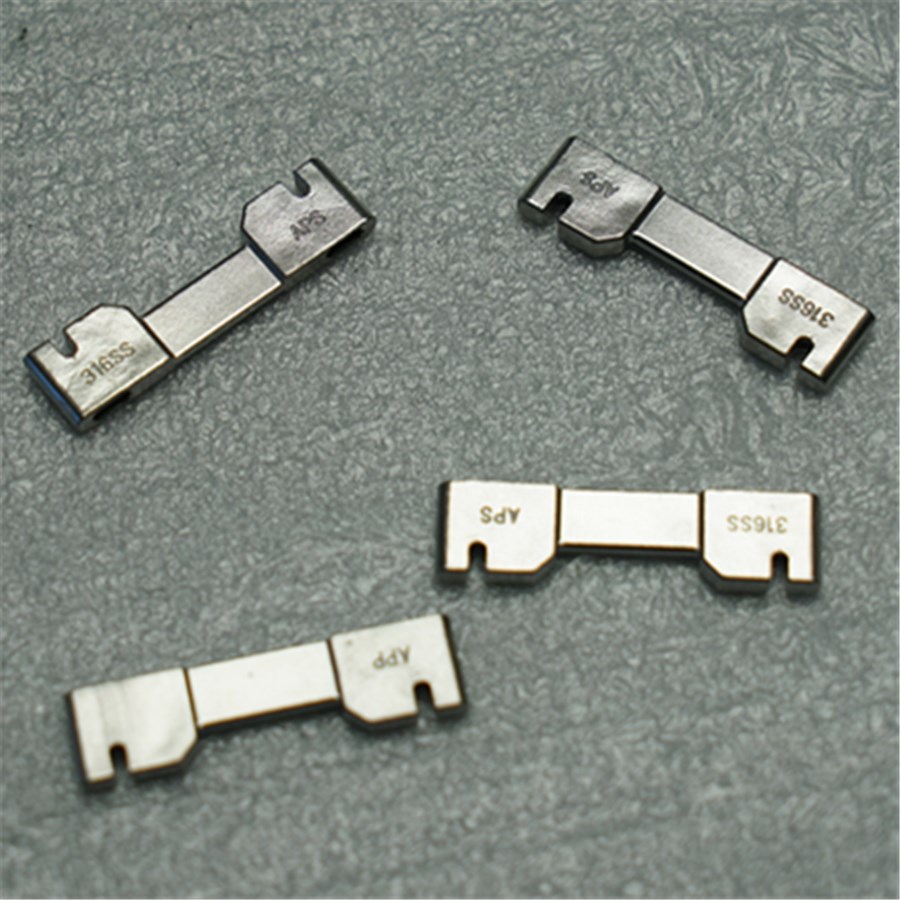

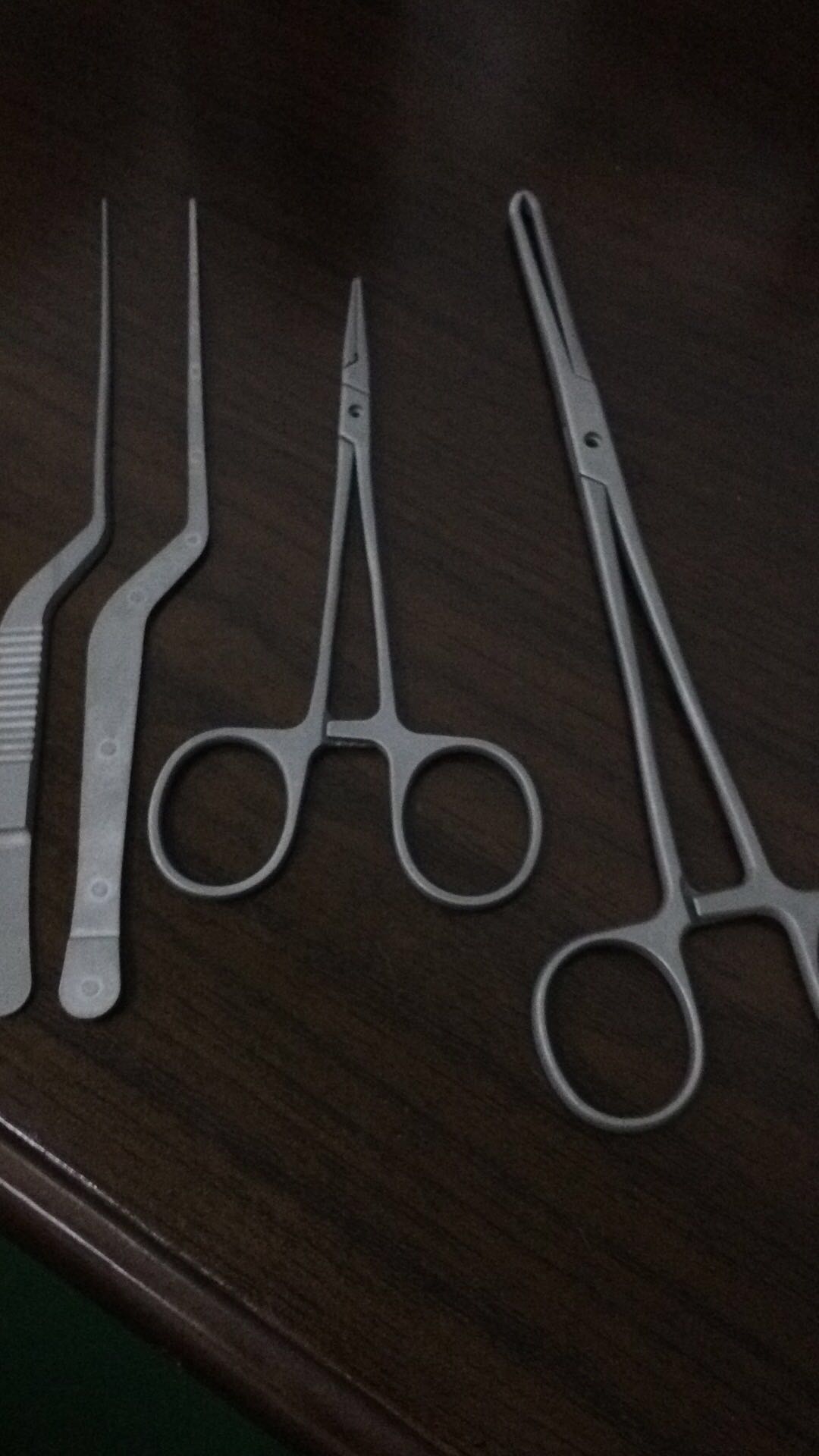

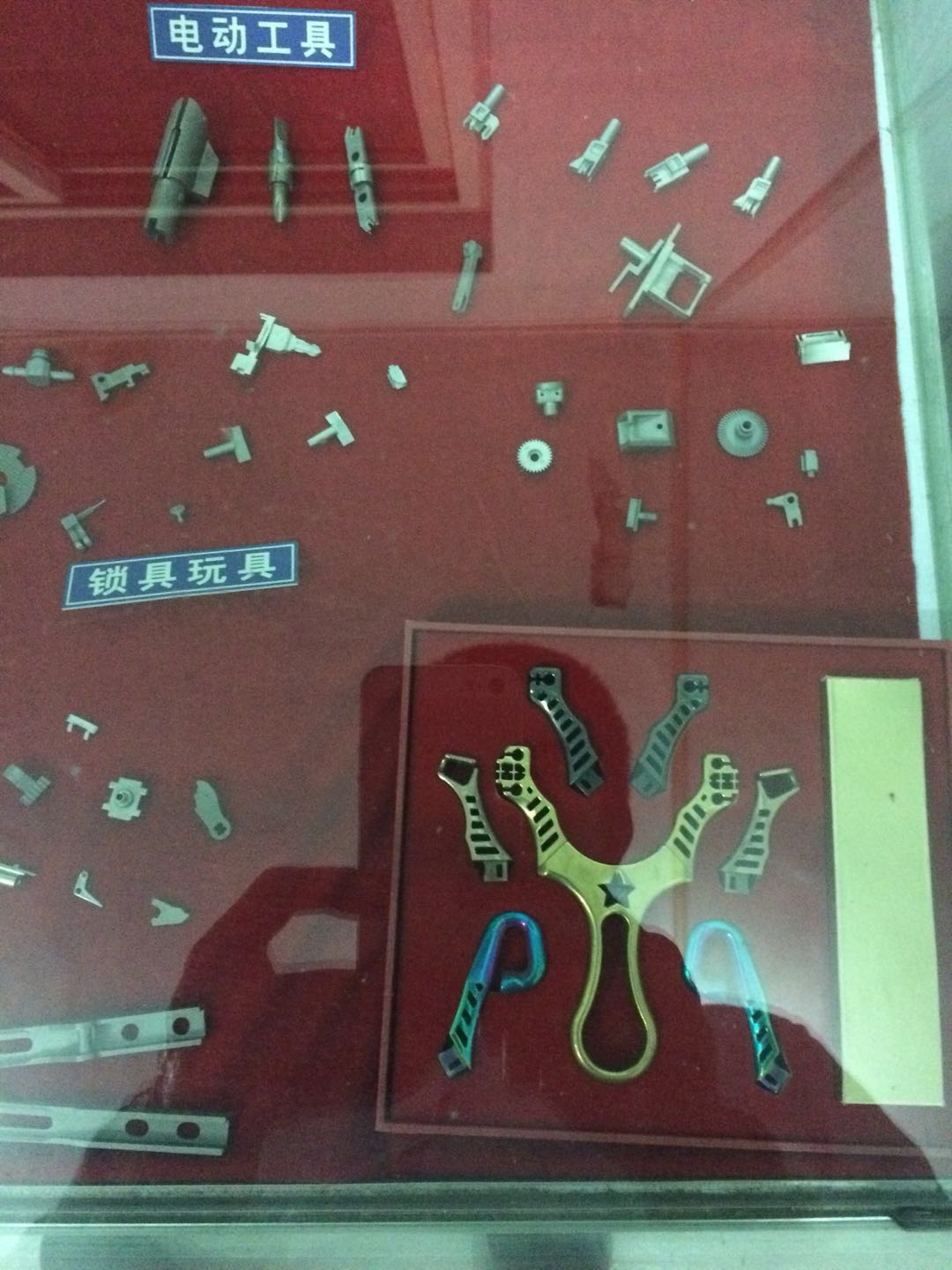

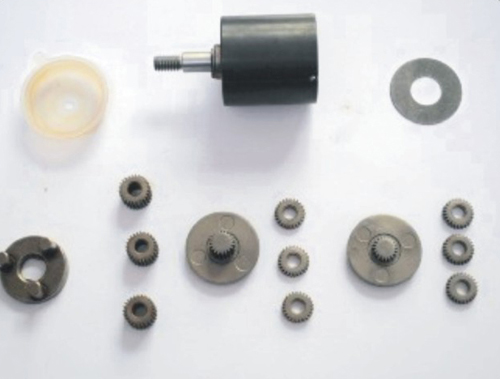

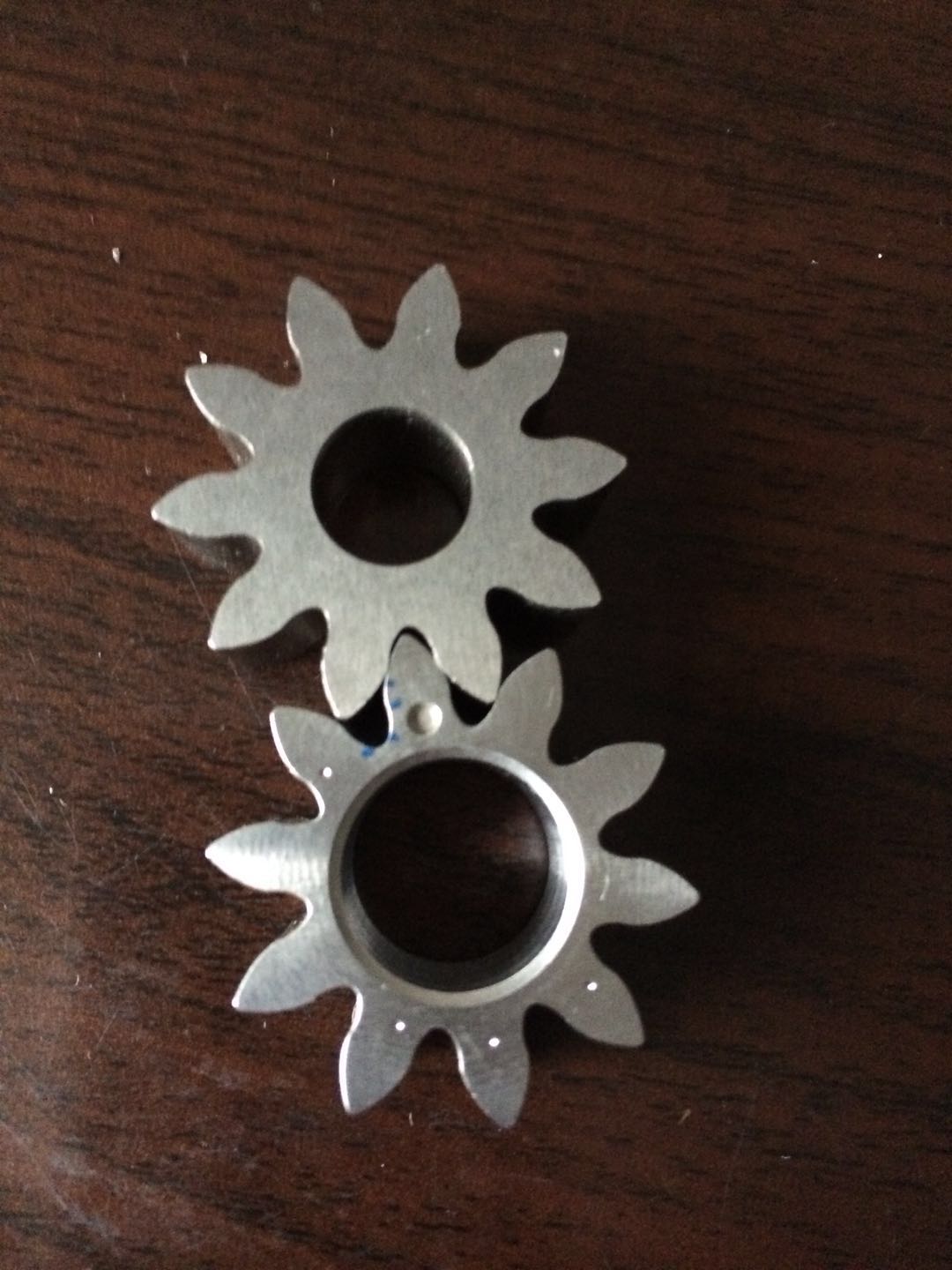

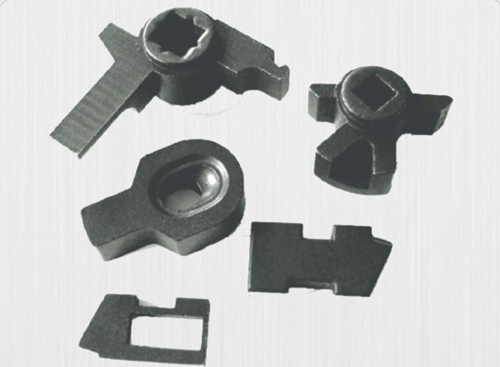

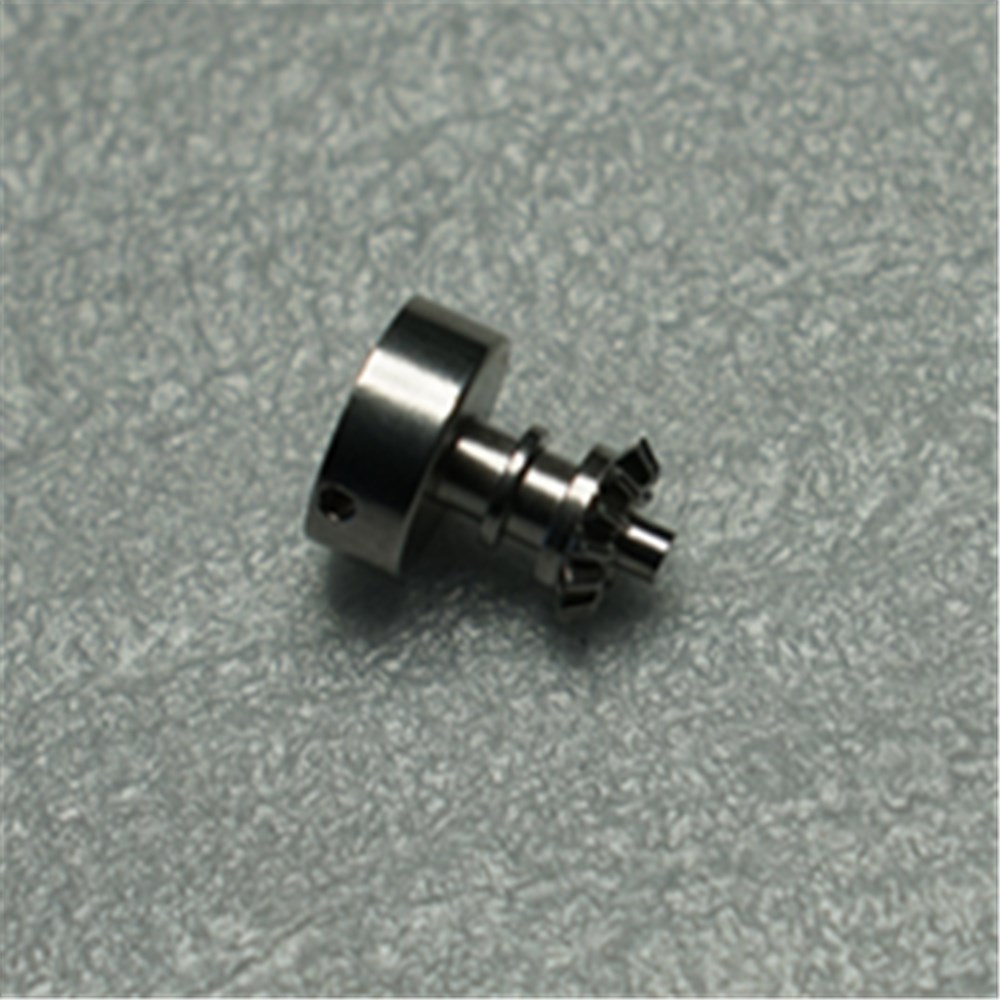

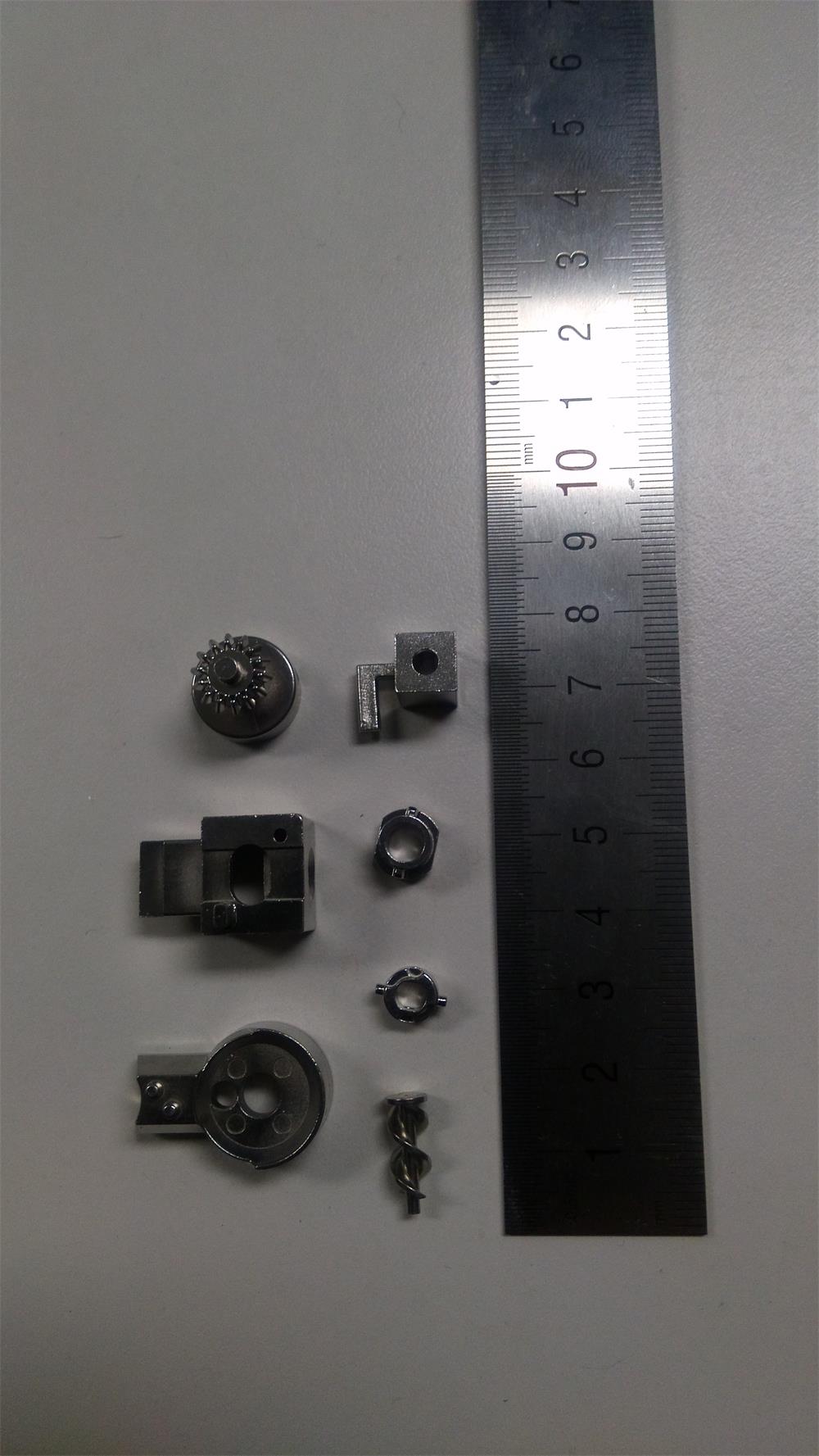

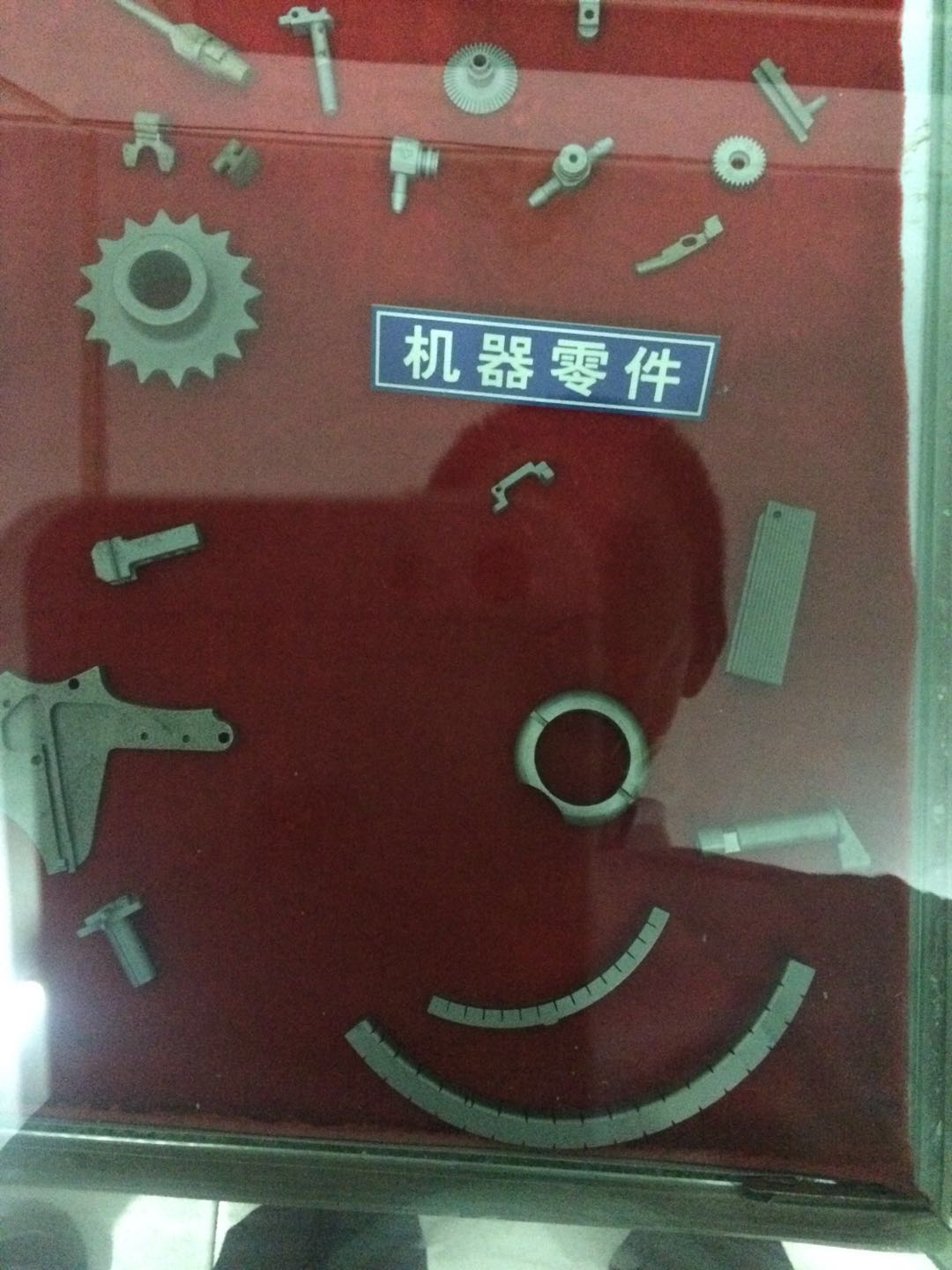

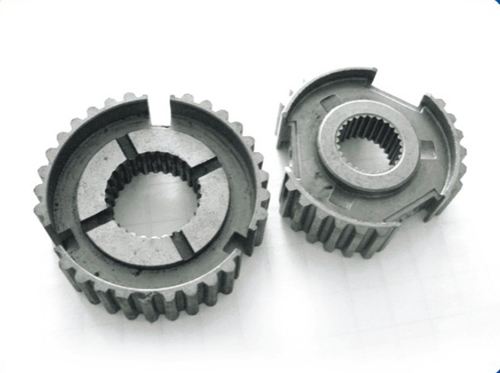

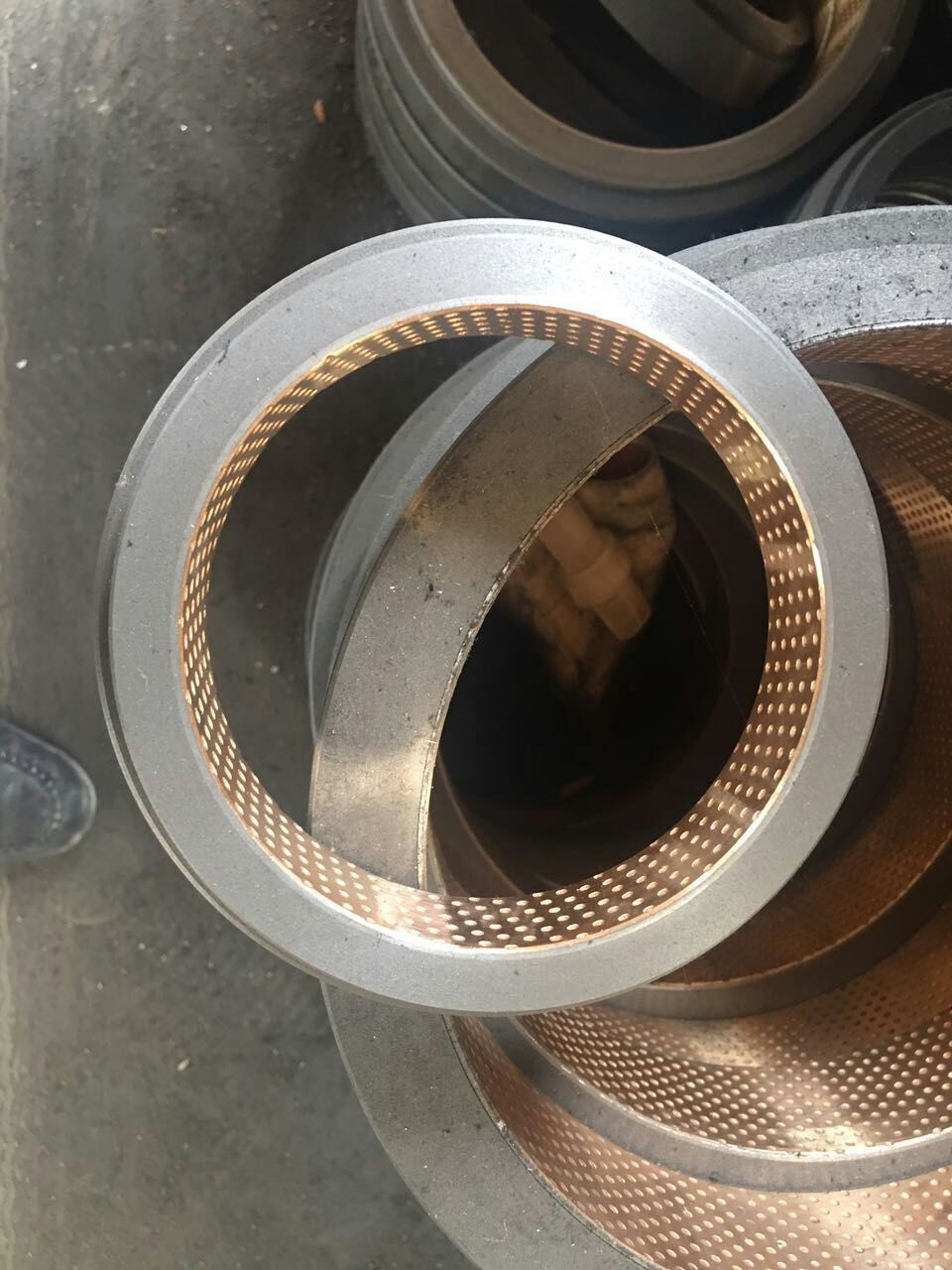

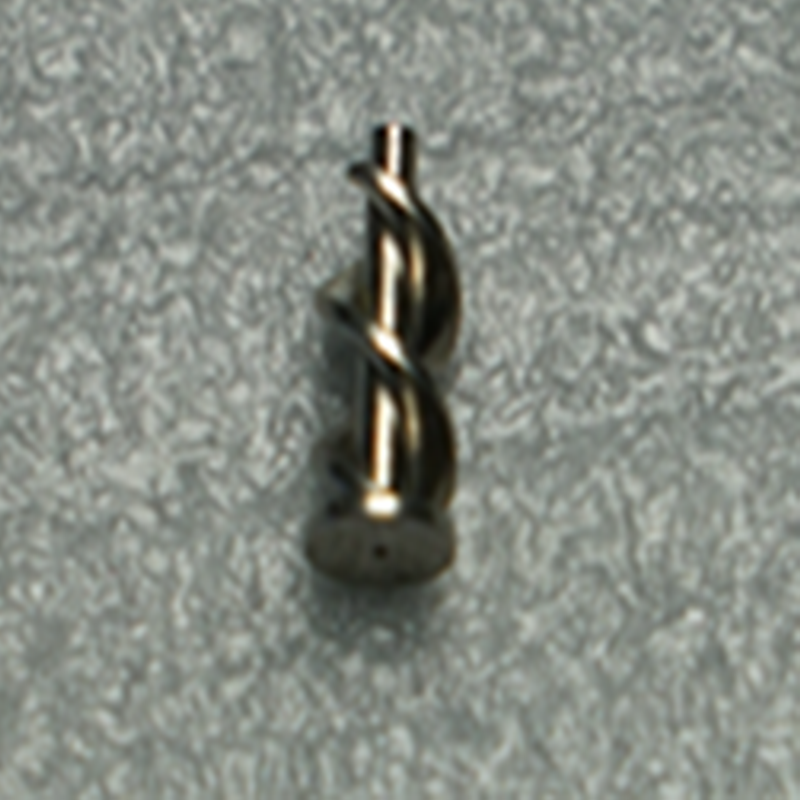

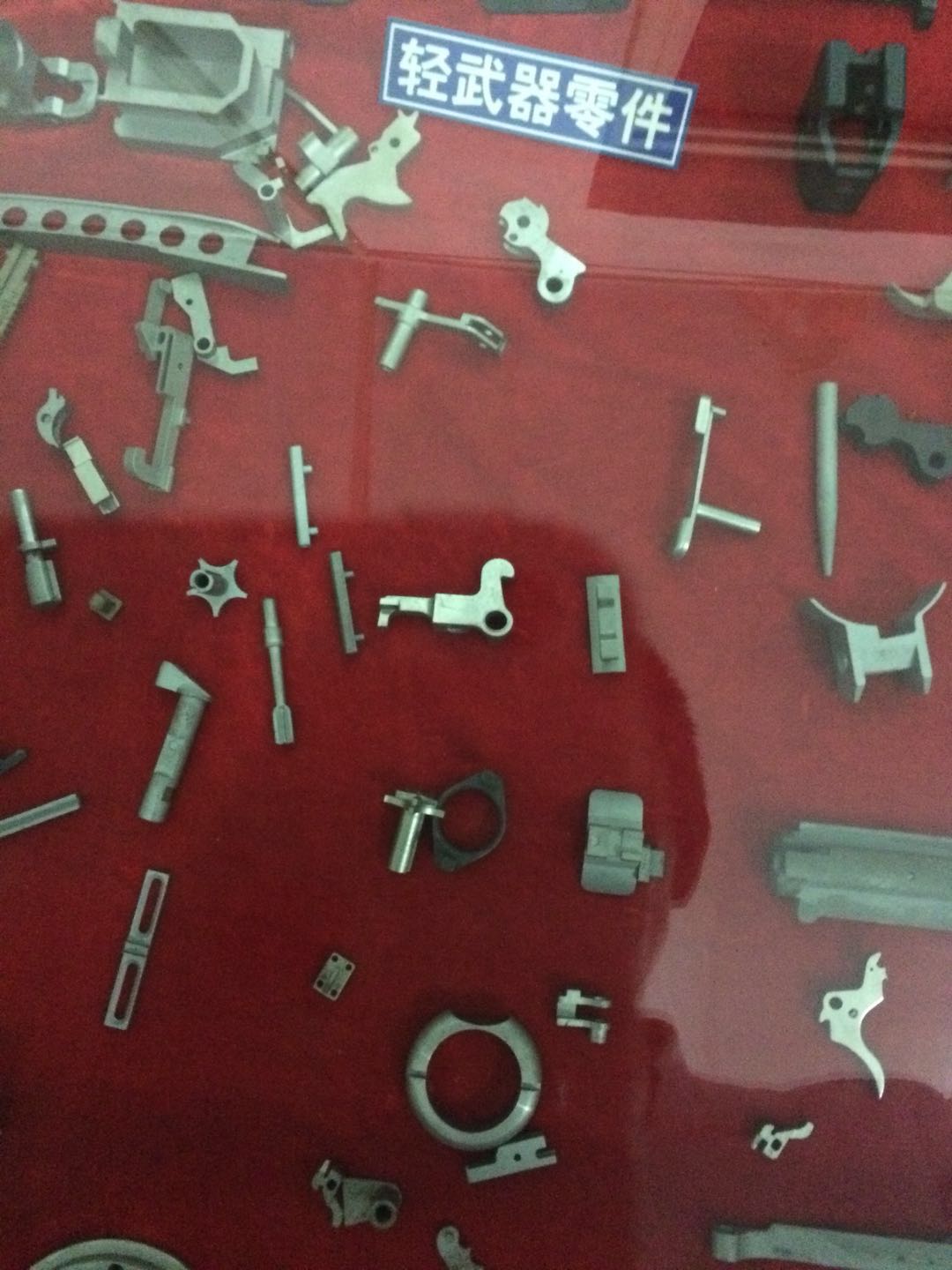

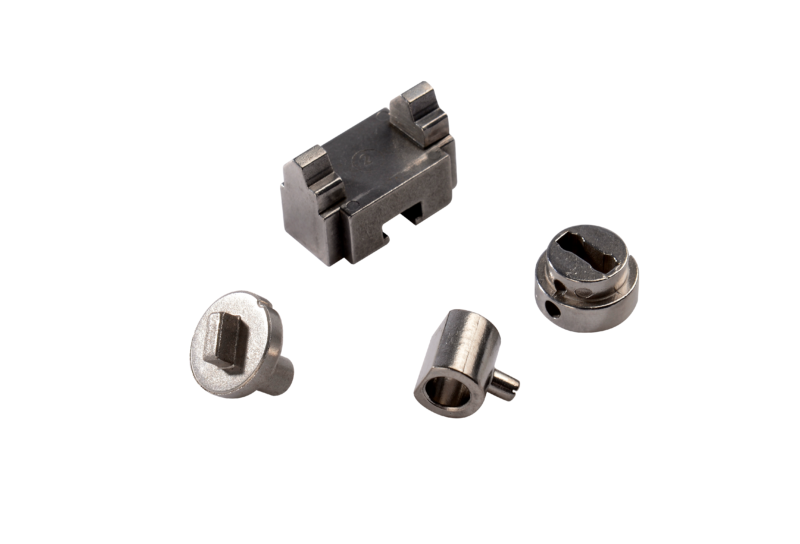

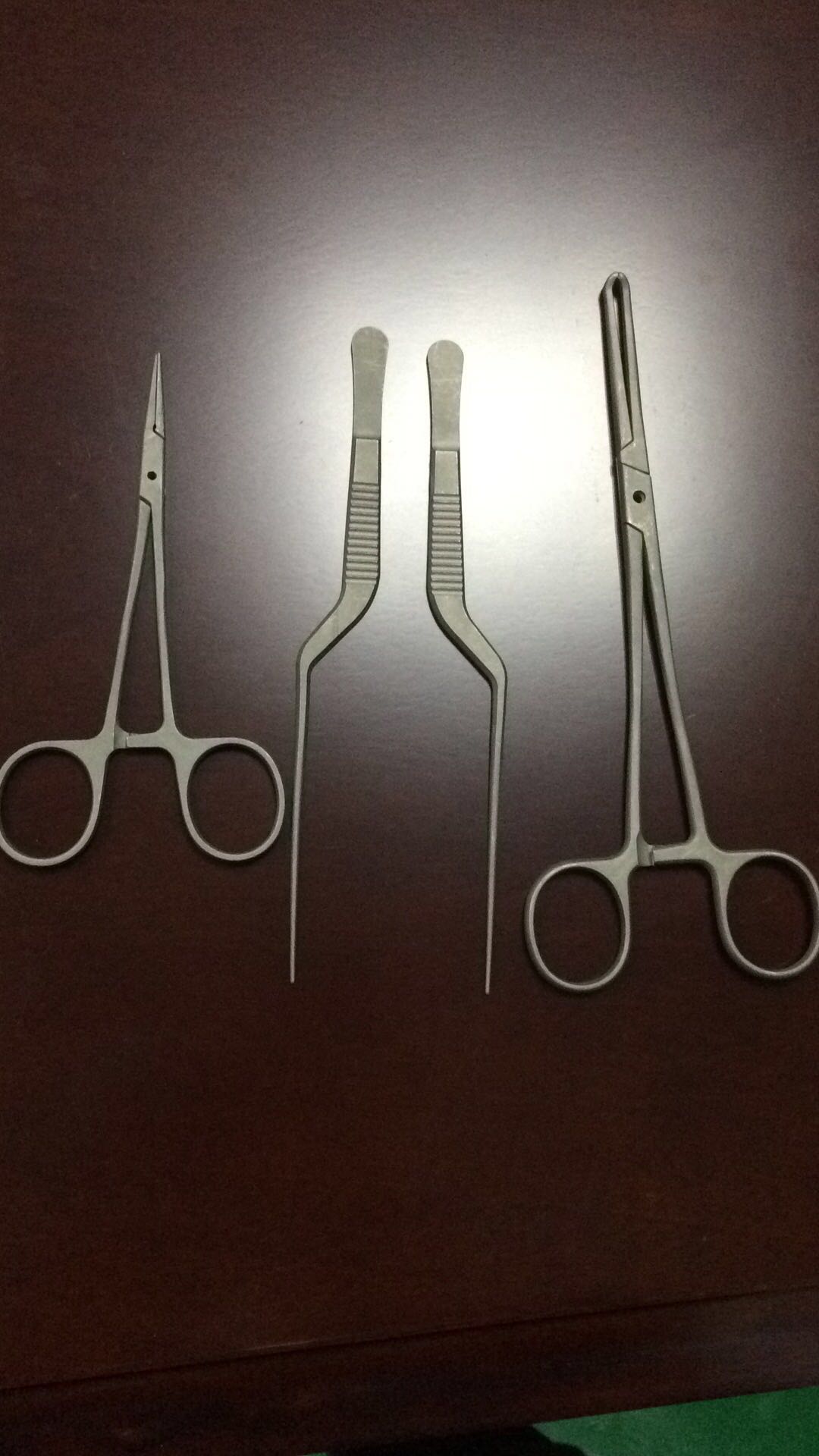

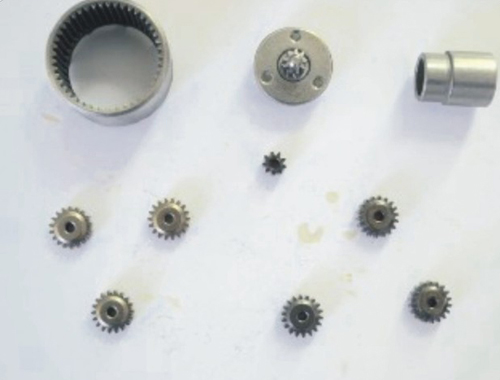

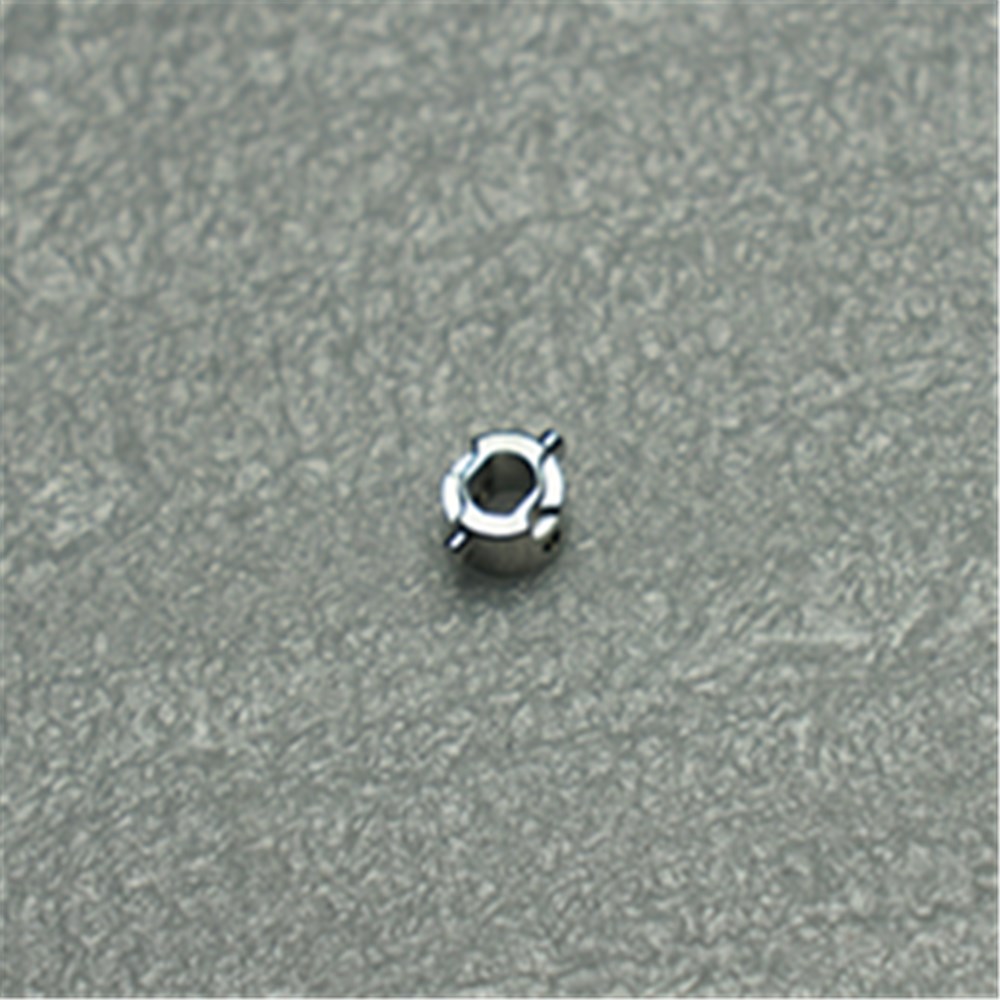

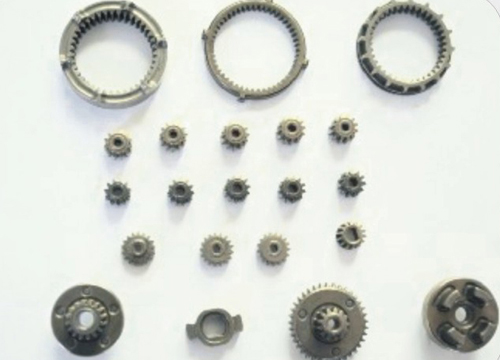

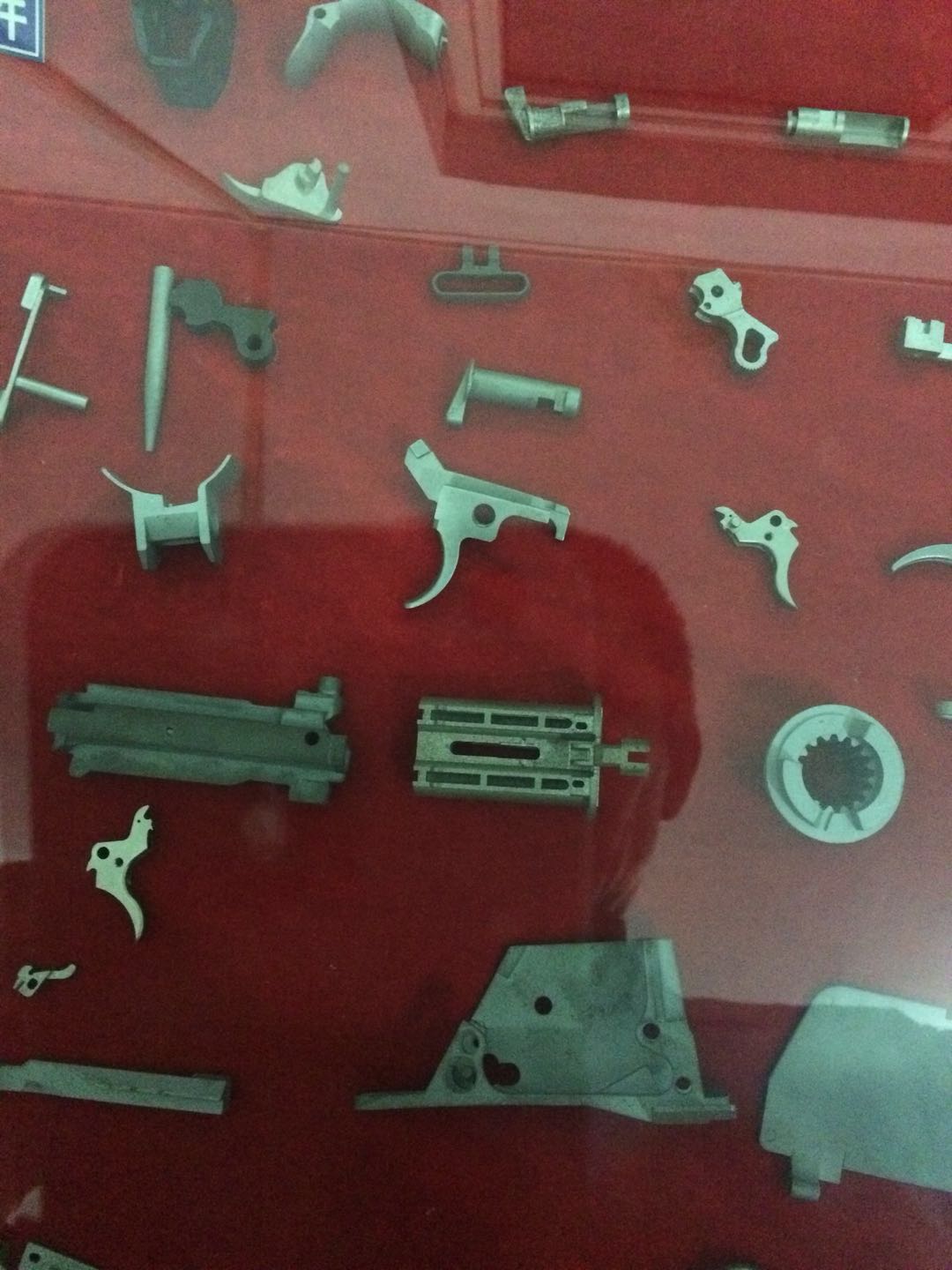

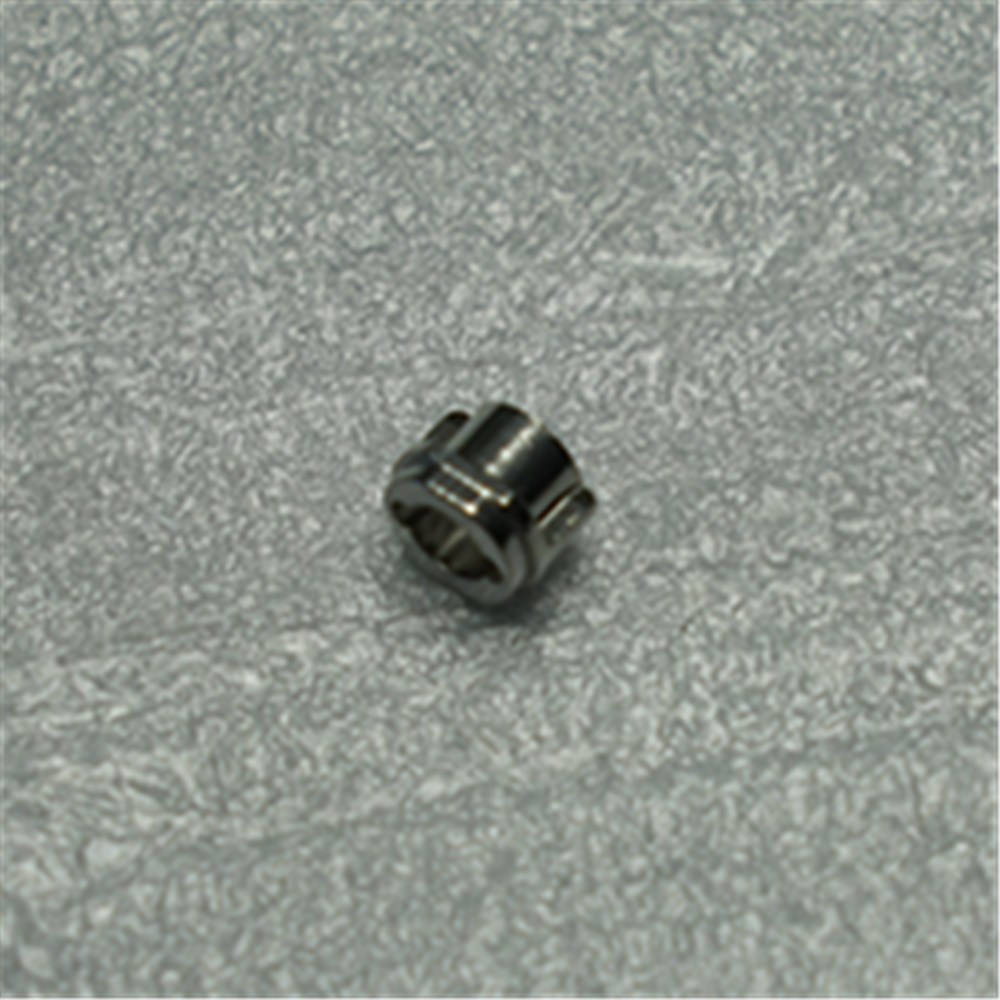

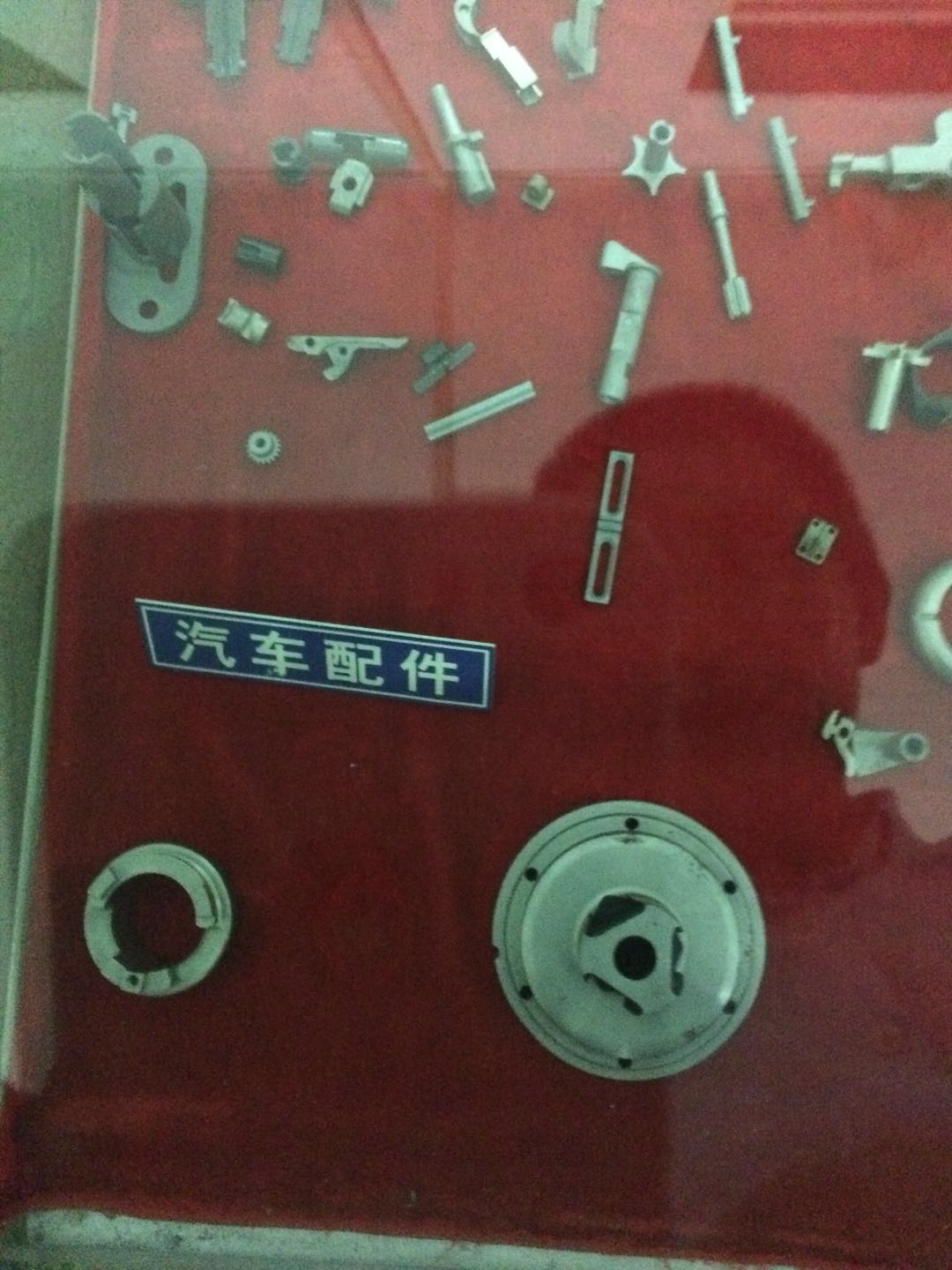

The products produced by our powdered metal PM MIM Sintering Injection Molding process service:
