Metal Casting Process

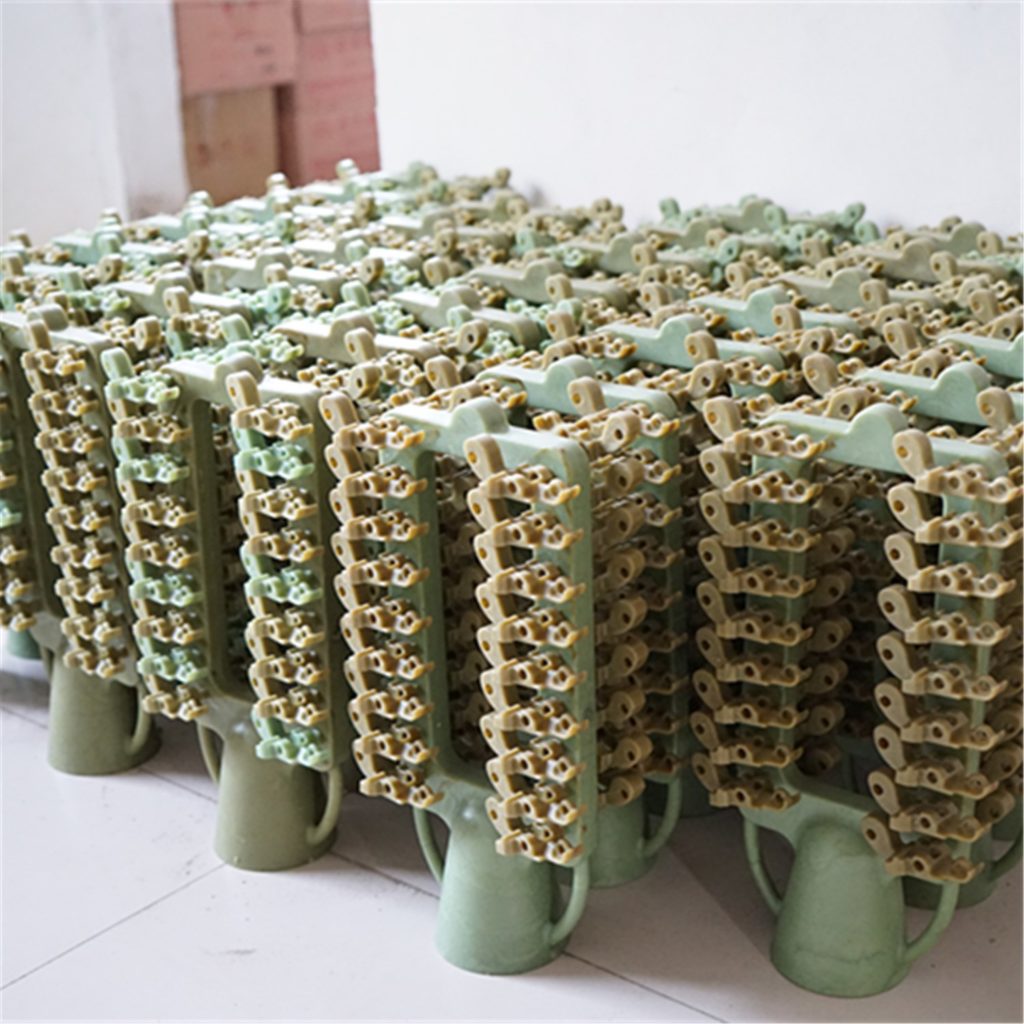

precision castparts

Ordering Procedures of YT Industrial Parts-OEM

  • Send us Drawing-With batch quantity
  • Engineering Review-Choose Manufacturing Process
  • Technical Discussion- Clear of Everything for Two Sides
  • Make Quotation of Mould and Unit Price of Industrial Parts
  • Accept Offer-Done!

Metal casting process is a kind of process in which a liquid metal is somehow delivered into a designed mould that contains a hollow cavity of the drawing shape. The metal and mould are then cooled, and the metal casting parts (the foundry part) is extracted. Casting parts are almost to the extended shape, then machining or less machining will be required, the cost will be saved in some extended, the steel metal casting process is one of the basic manufacturing processes in nowadays.

YT casting is steel casting foundry company supplies manufacturers in China, we locate in the most advanced area in China Delta area, within two hours’ drive from Shanghai, we have the strong industrial supplier link from the casting part raw material to the final machining, packing and quickest logistic in China.

For metal casting process, now we can supply the following casting products:

Iron and steel castings, non-Ferro castings

Every kind of material:

Iron castings (Gray, Ductile, Malleable, Alloyed)

Steel Castings (Carbon, Alloyed, Hi-Mn, Stainless Steel)

Non-Ferro Castings (Brass, Bronze, Cooper, Aluminum, Zinc, Mg-Alloy) and etc.

All process: Sand casting, Shell casting, Investment casting, Pressure & Die casting, Centrifugal casting and etc.

Processing services: Boring/drilling, Burning, Grinding/Polishing, Heat-treating/annealing, Machining, NDT-x-raying, Painting/coating Galvanizing, Straightening, Stress-relieving, welding and etc.

CAD/CAM, Unigraph & Pro/E system

All purpose for our metal casting process: Machine Tool body and parts; Water system (Valve and parts, pipes and fittings); Architectural Castings, Garden Ornamental castings and decorative objects (Fence, windows, gates, Staircases, Spear heads, mailbox, etc); Construction castings (False work and staging, pipe fittings), Mill Rollers(chilled cast iron roll, indefinite chilled cast iron rolls, compound cast iron rolls etc), Auto parts, anchor and shipyard mooring products, aero parts, cement equipment castings, cook ware and etc.

We have the following metal casting manufacturing process:

Metal casting process material spreadsheet:

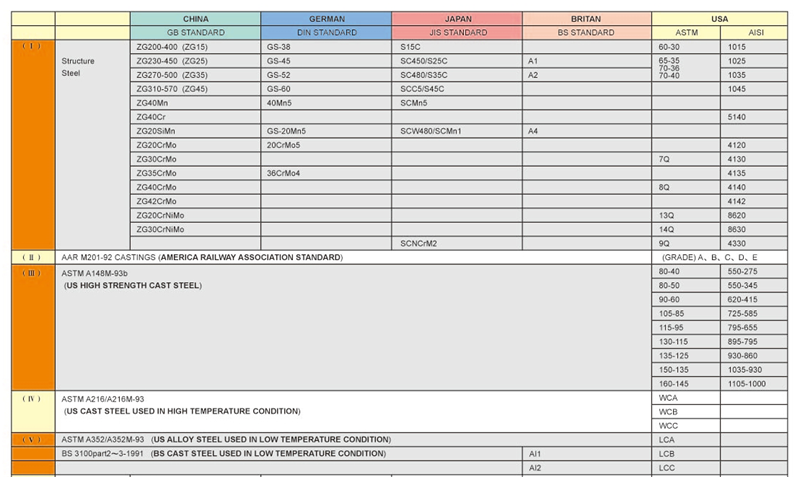

metal casting process material-1

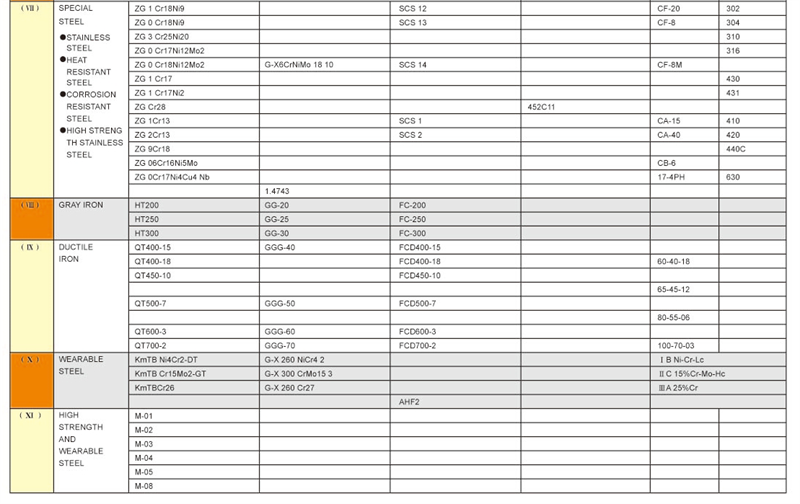

Metal casting process material-2
Our clients can only send us the drawings or samples, we will check which kind of casting process we will use for that. When we make the quote, the quantity is a must, for a different quantity will have a different price. We need to make the new tool for our client, the metal casting tool or mould ownership belongs to our client.

The delivery time for the sample is usually within 60days, the batch product will be within 30-40days.

We need some percentage of mould cost, for the balance, it will be paid after the sample is approved.

If your port is provided, we will quote you CIF price, you can only pick up the product it in your port.

For the warranty, it is insured by the sample, if the batch product is different as the sample, we will replace it or discuss it for conditional acceptance.

We will put more new product news on our facebook page, google+, linked-in and twitter.

For more technical information, you can refer The Library of Manufacturing.

Ask For A Quick Quote

We will contact you within 1 working day, please pay attention to the email with the suffix “@yutungindustrial.com”

You can upload your drawings here for our engineering review.
